Recovery System 95Service Manual – SC6500
™
Maintenance
Warning! Before performing any machine maintenance or adjustments, make sure the key
switch is off, the key is removed from the machine and the parking brake is engaged.
To Inspect and Clean the Vacuum Filter and Inlet Screen
1. Open the tethered Vacuum Filter Lid.
2. Remove the Filter and Filter Screen by pulling them
out of the recess in the Recovery Tank Top.
3. Clean the Filter and Filter Screen with vacuum or by
washing them in warm water.
4. When the Filter and Filter Screen are clean and dry,
reinstall them into the Recovery Tank Top.
Service Note: The Filter and Filter Screen
must be completely dry before
reinstalling.
5. Replace the Vacuum Filter Lid.
To Inspect and Clean the Vacuum Motor Float
Cage
1. Lift the Recovery Tank Lid to access the Float Cage and
captive oat ball. The Float Cage is attached to the
underside of the Top Cover Assembly.
2. Carefully remove the Float Cage from the Top Cover
Assembly
. Note that the Float Cage is a two-piece
design and can be snapped apart to separate for
cleaning.
3. Clean any debris from the Float Cage slots with a rag,
or by ushing the Float Cage with water. The Float
Cage
slots must be kept clean to prevent any airow
restriction.
4. Reassemble the Float Cage and captive oat ball and
reinstall into the Top Cover Assembly.
5. Inspect the Recovery Lid Gasket to make sure it is not
damaged and is sealing correctly.

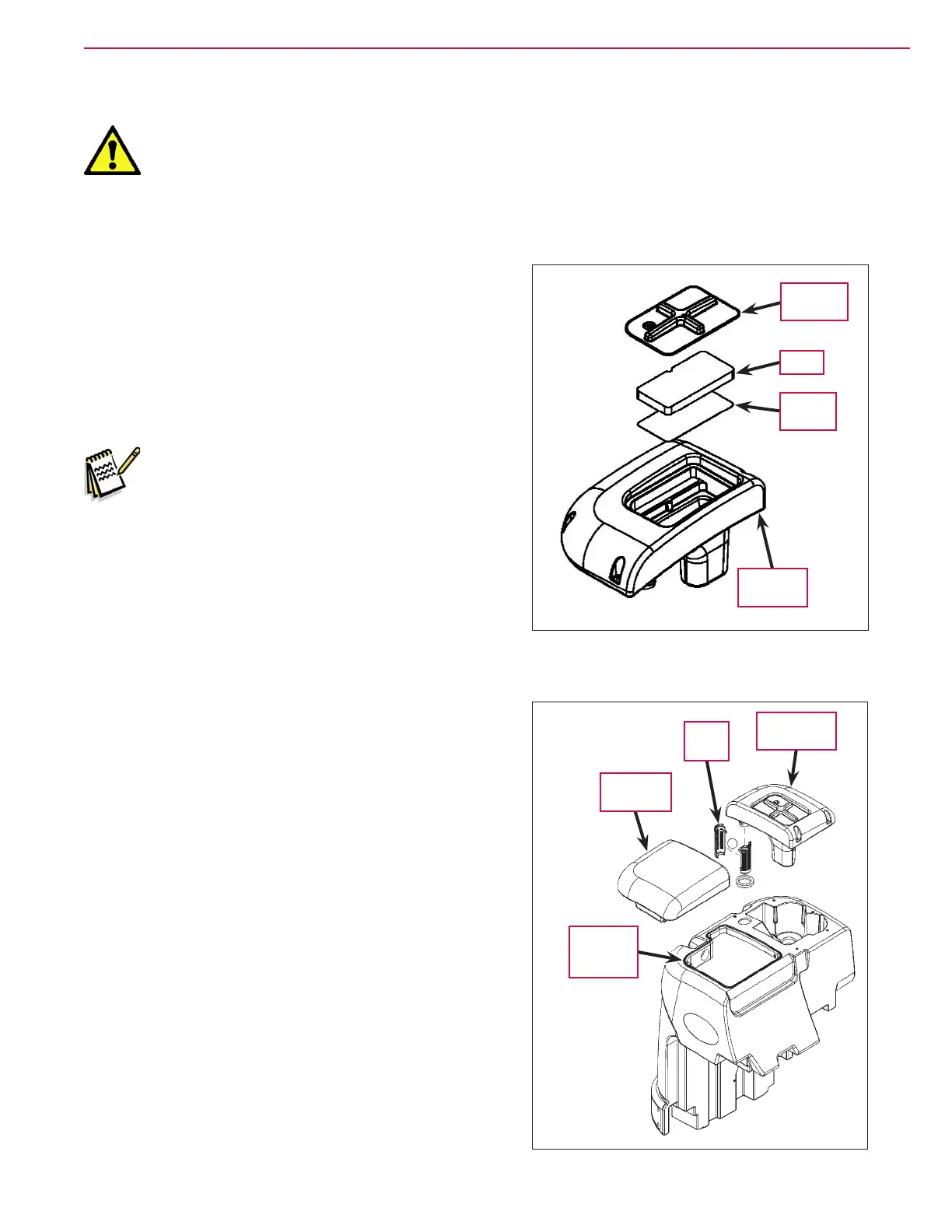

Vacuum
Filter Lid
Filter
Filter
Screen
Recovery
Tank Top
Recovery
Tank Lid
Float
Cage
Top Cover
Assembly
Recovery
Lid
Gasket
