Electrical System 67Service Manual – SC6500
™

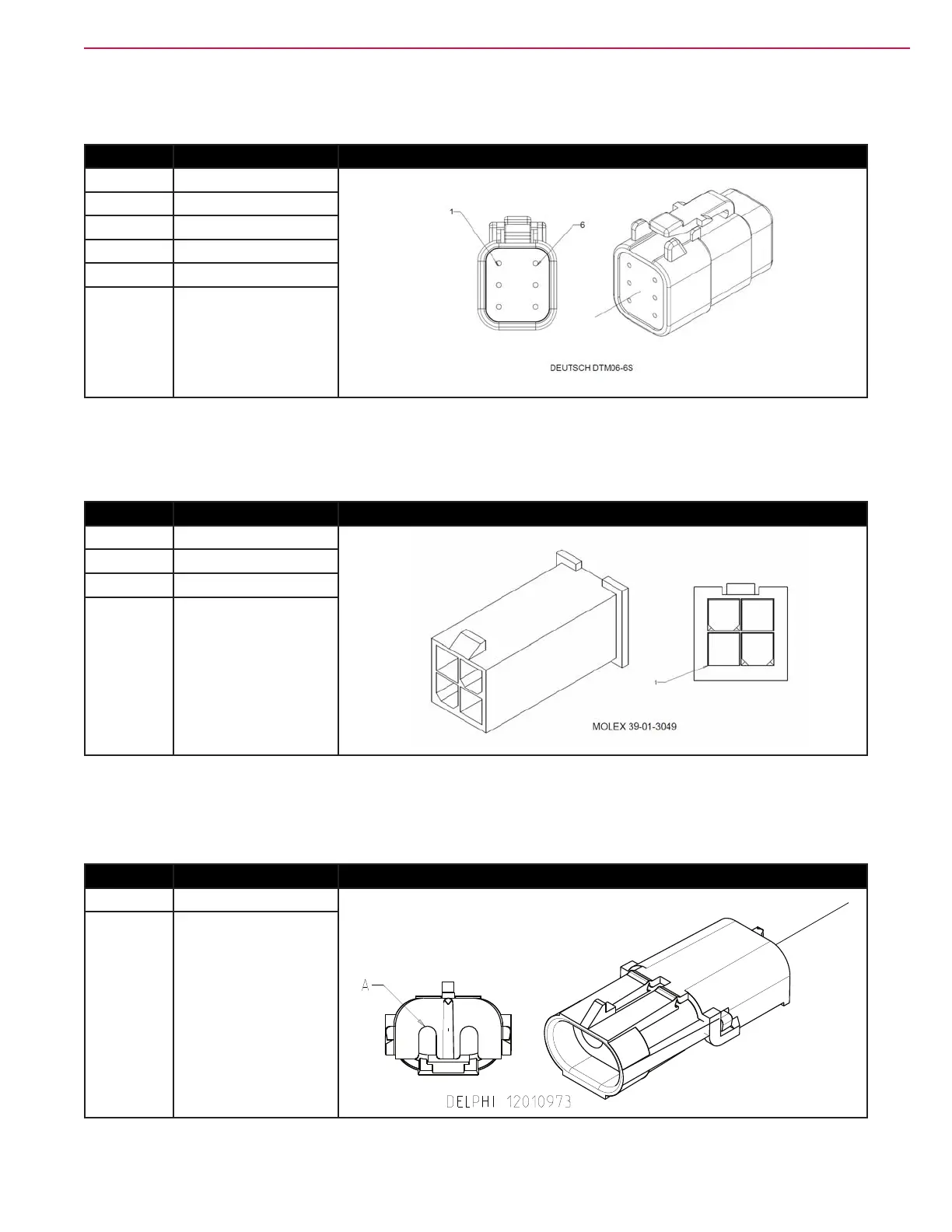

X7 Connects to Drive Motor
Pin No. Wire ID
1 PNK-RED W006
2 PNK-BLU W005
3 BLK-PNK W004
4 TAN-RED W003
5 PNK-WHT W002
6 BLK-PNK W001
X8 Connector for Curtis Programmer
Pin No. Wire ID
1 BLU/GRA 18-1
2 BLK/PINK 18-6
3 WHT/ORN 18-1
4 VIO/WHT 18-1
X10
Connects to S3 Battery Interlock Switch X9 if equipped. If not, connects to X51 Jumper
Pin No. Wire ID
A GRY/ORN 18-1
B GRN 18-1
