Scrub System, Cylindrical 116Service Manual – SC6500
™
Removal and Installation
Warning! Before removing or reinstalling any machine components, make sure the key switch
is off, key is removed from the machine and the parking brake is engaged.

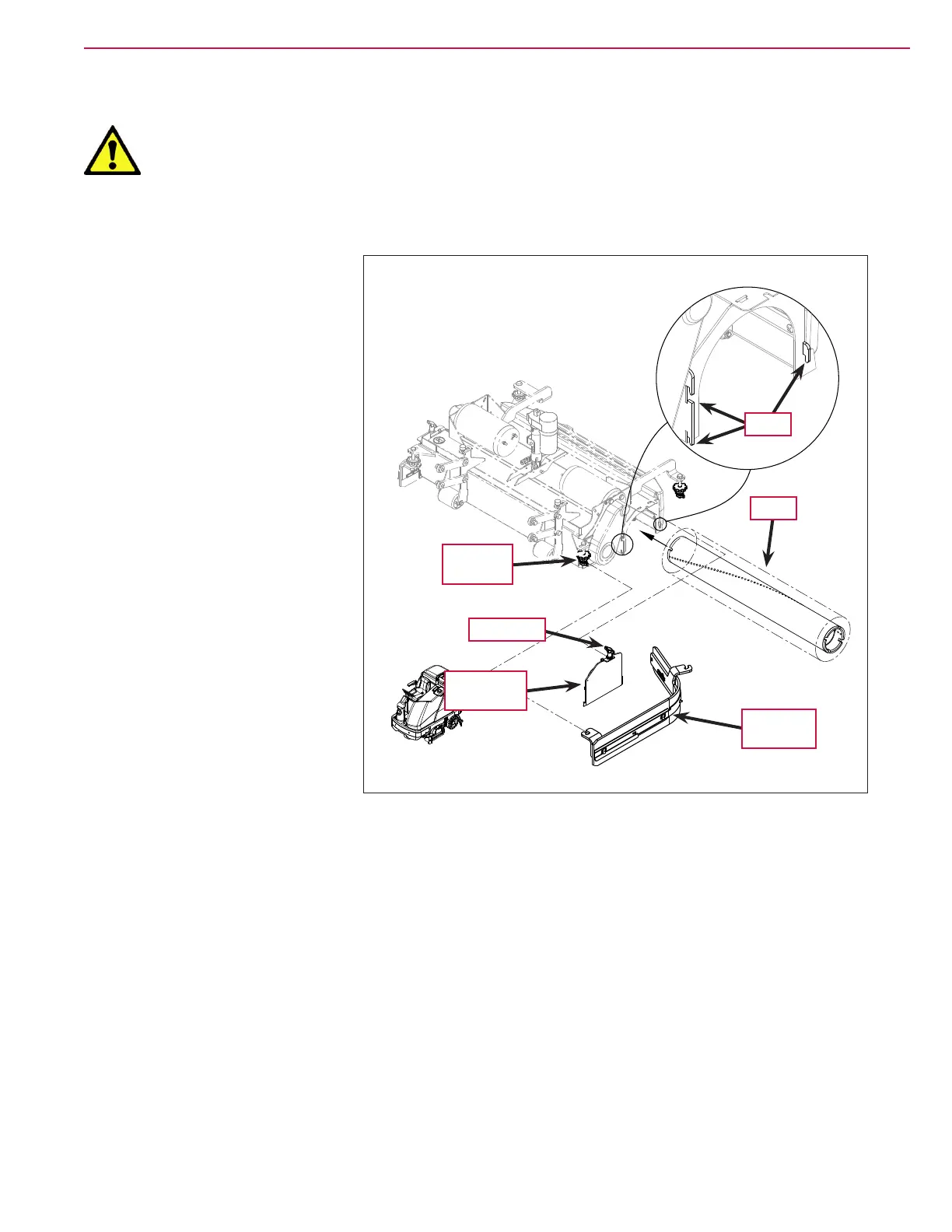

Scrub Brushes
1. Make sure the scrub deck is
in the raised position and the
key switch is off.
2. Loosen the Retainer Knobs,
then slide the Side Skirt
Assembly
forward slightly,
then off of the scrub deck.
3. Loosen the Thumb Nut on top
of the Broom Idler Assembly
until the Broom Idler Assembly
drops down far enough to
disengage it from the Notches,
then remove the Broom Idler
Assembly
.
4. Remove the Brush from the
housing.
5. To reinstall a Brush, slide
it into the housing, lift it
slightly, then push and turn
the Brush until it seats.
6. Reinstall the Broom Idler
Assembly
and Side Skirt
Assembly
.
Side Skirt
Assembly
Retainer
Knob (2)
Thumb Nut
Broom Idler
Assembly
Notch
Brush
