Recovery System 93Service Manual – SC6500
™
Top Cover Assembly

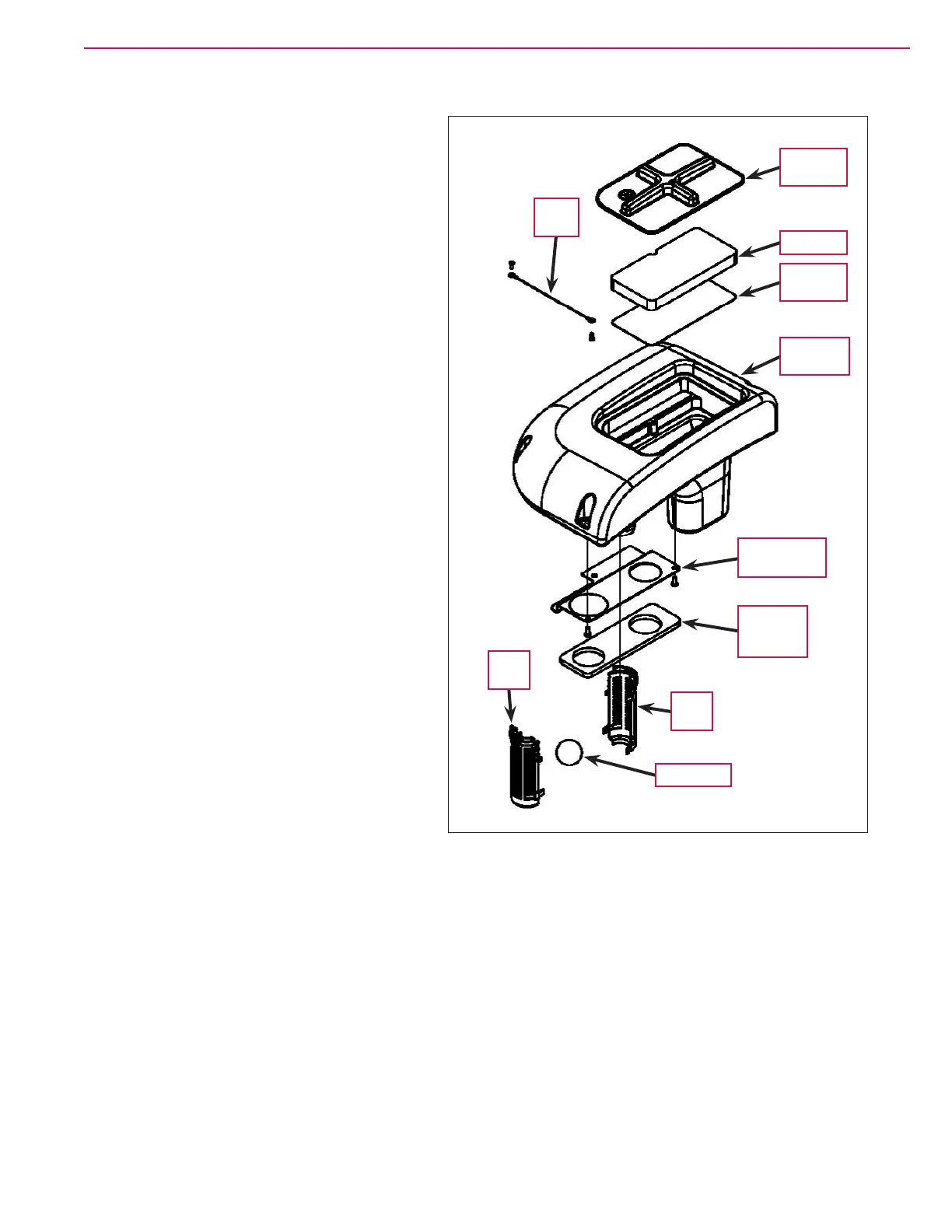

The Top Cover Assembly is fastened to the top
of the recovery tank and includes the Vacuum
Filter Lid
, Filter, Filter Screen and Recovery Tank
Top
. The Vacuum Cover Plate, Float Cage and
contained Float Ball attach to the bottom of the
Recovery Tank Top. The Vacuum Fan Top Gasket
seals the Top Cover Assembly to the recovery
tank.
Float Cage and Ball
The Float Ball is retained inside the two-piece
interlocking Float Cage. The assembled Float
Cage
and Float Ball attach to the bottom of the
Recovery Tank Top.
Vacuum
Filter Lid
Filter
Filter
Screen
Wire
Rope
Recovery
Tank Top
Vacuum
Fan Top
Gasket
Vacuum
Cover Plate
Float
Cage
Float
Cage
Float Ball
