Wheel System, Non-traction 176Service Manual – SC6500
™
Wheel System, Non-traction
Functional Description
Overview
The non-traction wheel system supports the rear of the machine and includes the braking system.
Component Locations

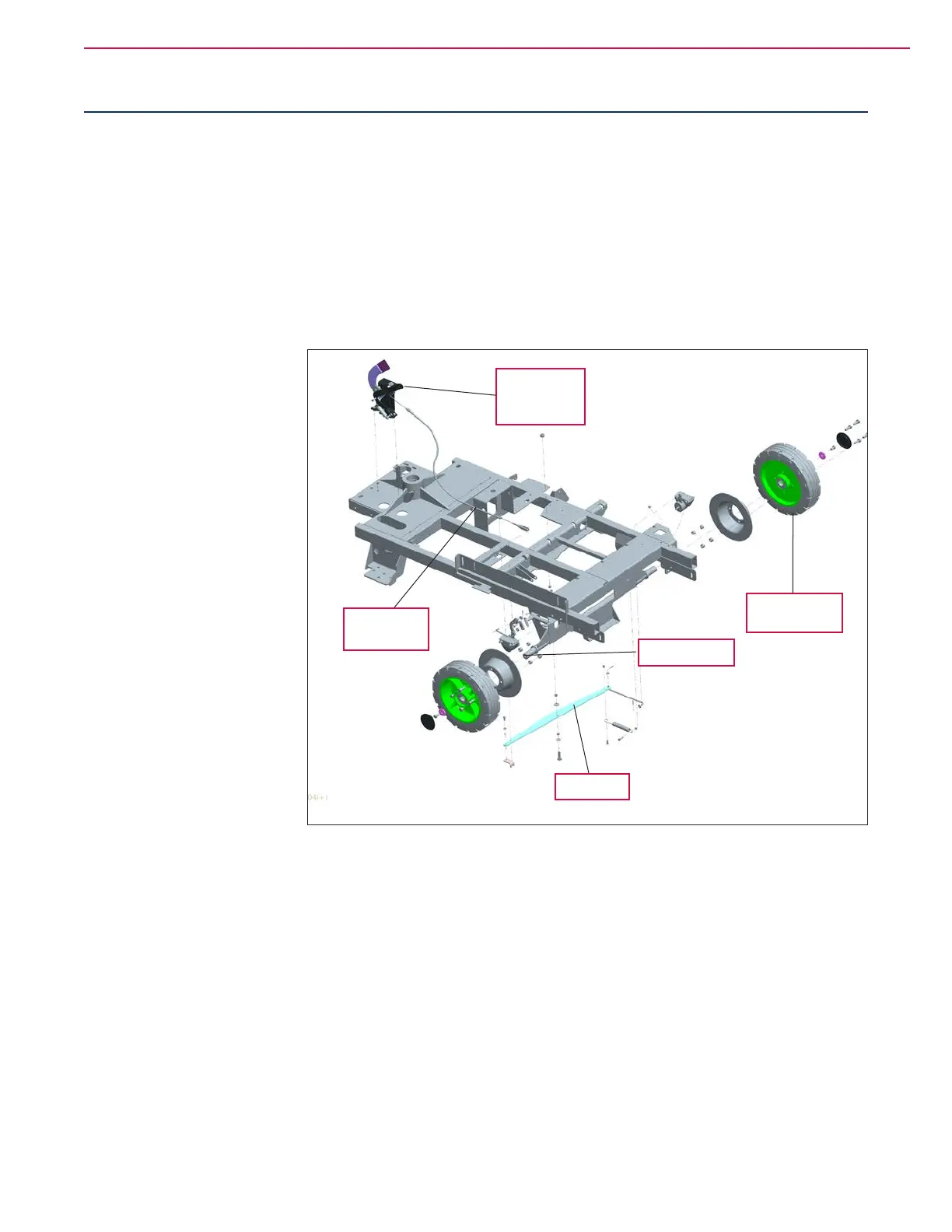

The Non-traction (rear)
Wheels are attached to the
brake Spindles and are
held on the frame shafts
by a M10-1.5 x 20mm hex
screw and washer.
The Brake Pedal Assembly
actuates the Brakes via
a Cable Assembly. The
Brake Pedal Assembly
can be locked with the
Brakes engaged to act as a
parking brake.
The Cable Assembly
actuates an Equalizer
that ensures the tension
from the Cable Assembly
is applied equally to both
brakes.
Non-traction
Wheel (2)
Spindle (2)
Brake
Pedal
Assembly
Cable
Assembly
Equalizer
