Wheel System, Traction 204Service Manual – SC6500
™

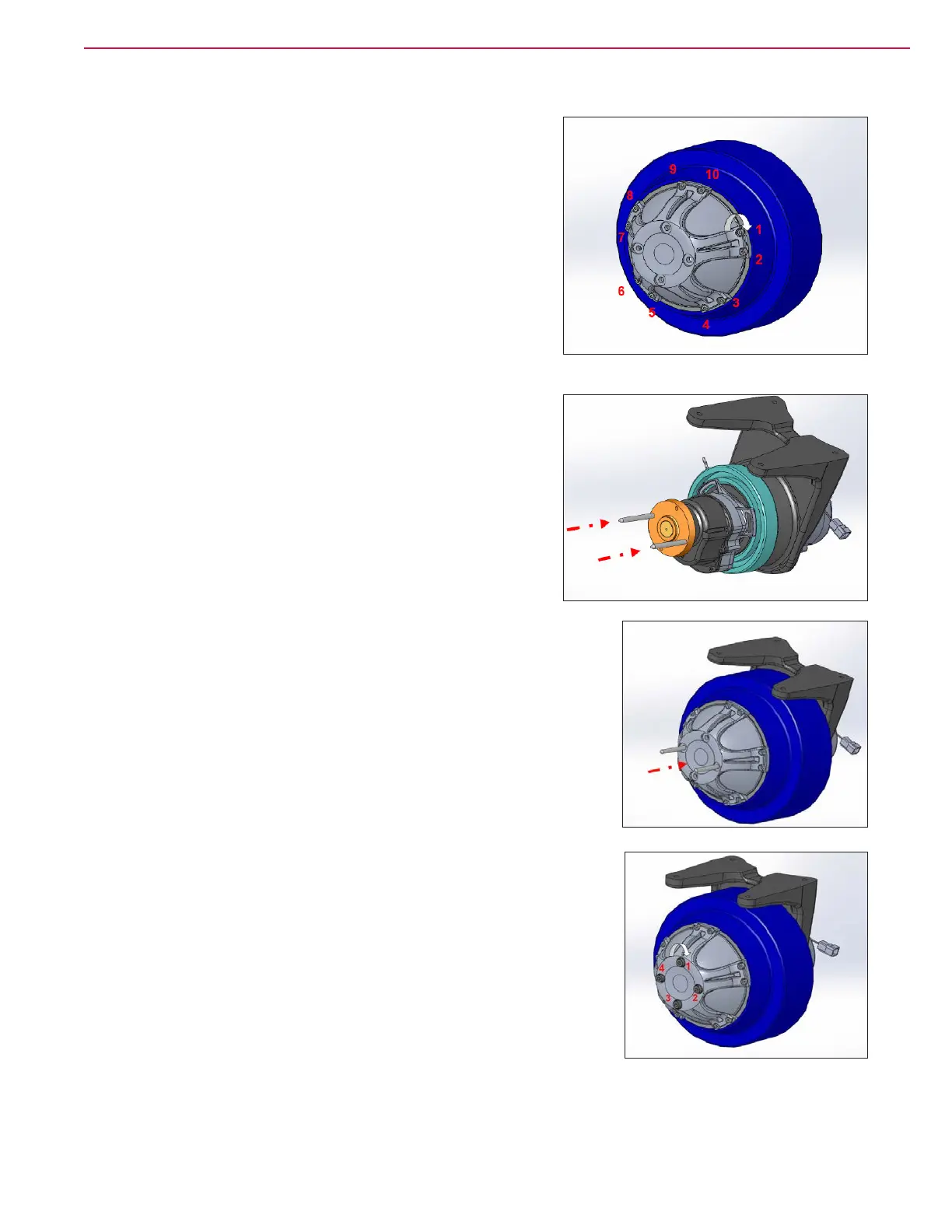

Front Drive Wheel/Tire Installation
1. Install the drive hub to the new
wheel/tire using the 10 fasteners.
Apply Loctite 648 (or equivalent) on
the fasteners. Torque to 20-22 Nm.(16
ft lb)
2. Lightly install the two alignment pins
from the tire puller kit into two of the
threaded holes of the gearbox hub
ange.
3. Slide the drive hub with the wheel/
tire over the alignment pins.
4. Apply loctite 243 (or equivalent) to
the 4 hub center fasteners. Remove
the alignment pins , and install the 4
fasteners.
5. In small increments, simultaneously
tighten all four screws. Torque to 75
Nm (55 ft lb)
