Electrical System 64Service Manual – SC6500
™

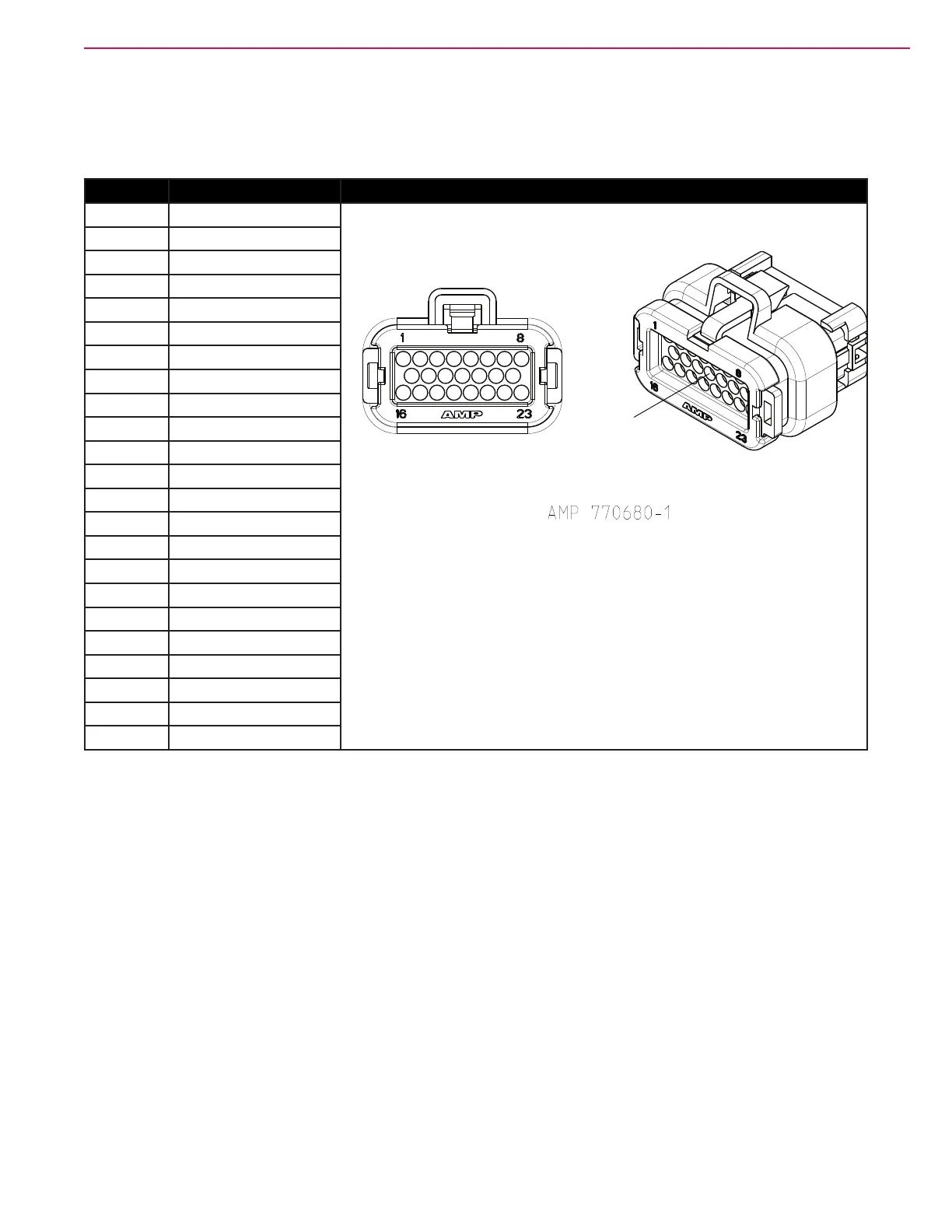

Connector Pin-Outs
J1 Connects to A2 Control Board
Pin No. Wire ID
1 BLU/GRA 18-1
2 BRN/BLU 18-1
3 GRN/BLU 18-1
4 ORN/RED 18-1
5 GRN 18-2
6 TAN/BRN 18-1
7 BLK/GRA 18-1
8 ORN 18-3
9 ORN/BRA 18-1
10 BLK 16-3
11 RED/WHT 18-1
12 YEL/RED 18-1
13 GRA 18-1
14 BLK 16-4
15 VIO 16-1
16 WHT/VIO 18-1
17 GRA/RED 18-1
18 YEL/GRN 18-1
19 YEL/BLU 18-1
20 BLU/RED 18-1
21 BLU/ORN 18-1
22 WHT/BRN 18-1
23 VIO 16-2
