Wheel System, Traction 205Service Manual – SC6500
™

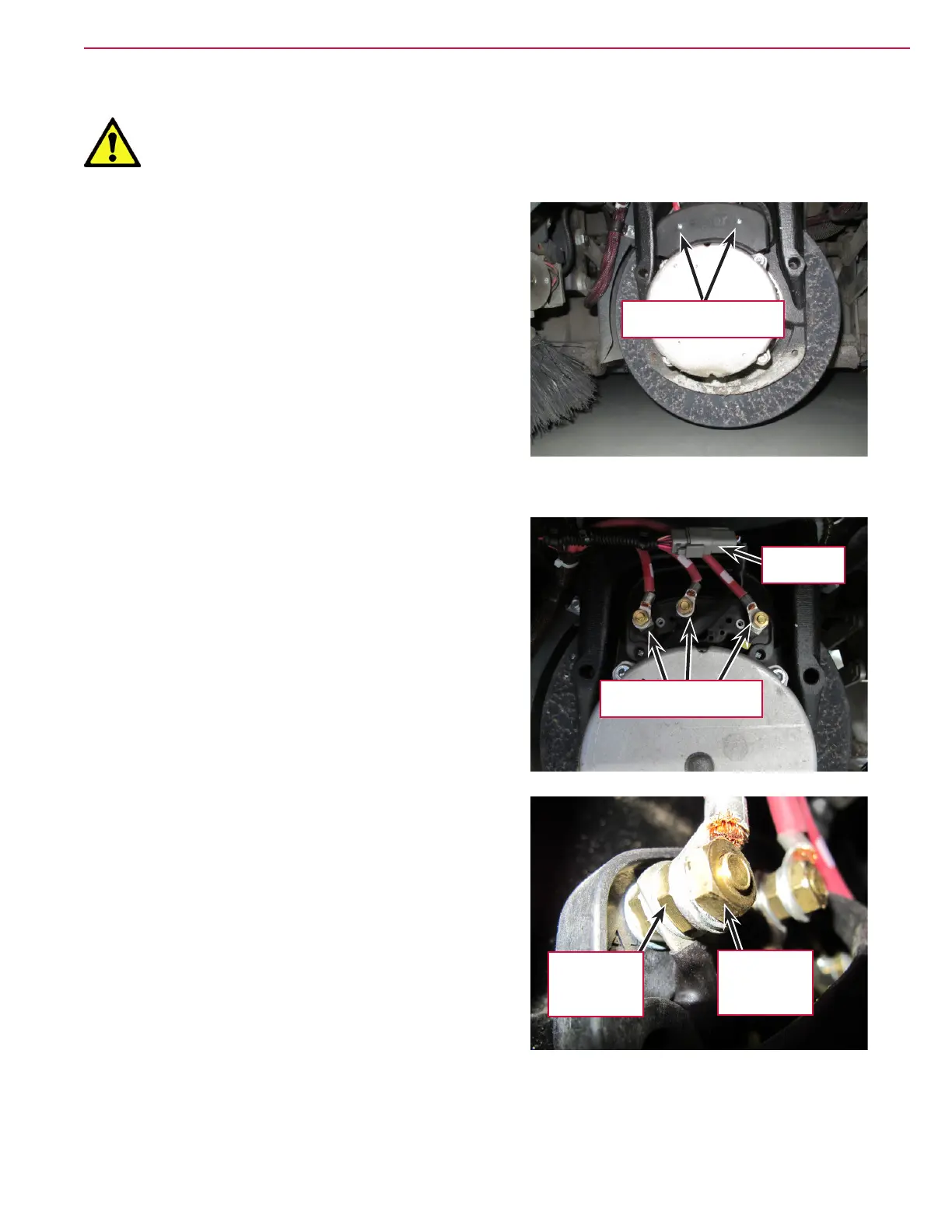

Wheel Drive Assembly
Warning! Turn the key switch off and disconnect the battery pack.
Engage the machine parking brake and block both rear wheels so machine can’t roll.
1. Disconnect the battery pack.
2. Jack up the front of the vehicle so that the front
wheel is off the ground and support the vehicle safely
on jack stands.
3. Turn the wheel so that the motor is facing forward.
4. Remove the two screws securing the plastic cover
over the motor cable connections and remove the
cover.
5. Mark the U, V and W cables for correct reassembly
Disconnect the small motor sensor connector
6. Disconnect the U, V and W cables from the motor
using a “back-up” wrench on the nut behind the cable
to prevent the stud from rotating.
Remove 2 screws and
plastic cover
Mark cable connection
locations for U, V and W
Disconnect
Use back-up
wrench
Remove nuts
securing U, V
and W cables
To Next Page
