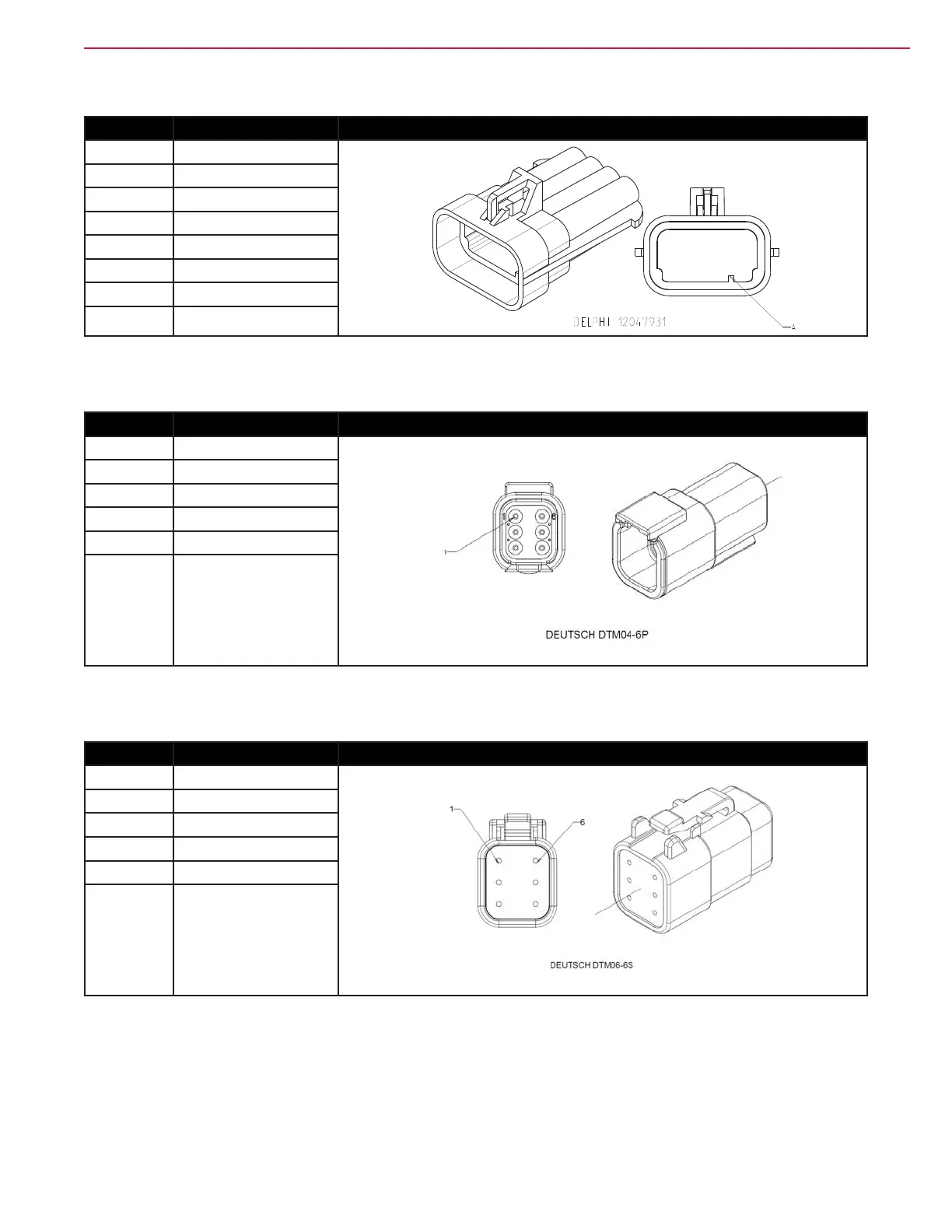

Electrical System 73Service Manual – SC6500
™
X59A Telematics Connector Jumper
Pin No. Wire ID
A BLK 18-13
B BLK 18-13
C
D
E
F
G
H
X60 (Deutsch DTM04-6P) Connects to X61
Pin No. Wire ID
1 PNK-RED W006
2 PNK-BLU W005
3 BLK-PNK W004
4 TAN-RED W003
5 PNK-WHT W002
6 BLK-PNK W001
X61 (Deutsch DT M06-6s)Connects to X60
Pin No. Wire ID
1 PNK-RED W006
2 PNK-BLU W005
3 BLK-PNK W004
4 TAN-RED W003
5 PNK-WHT W002
6 BLK-PNK W001
