Electrical System 68Service Manual – SC6500
™

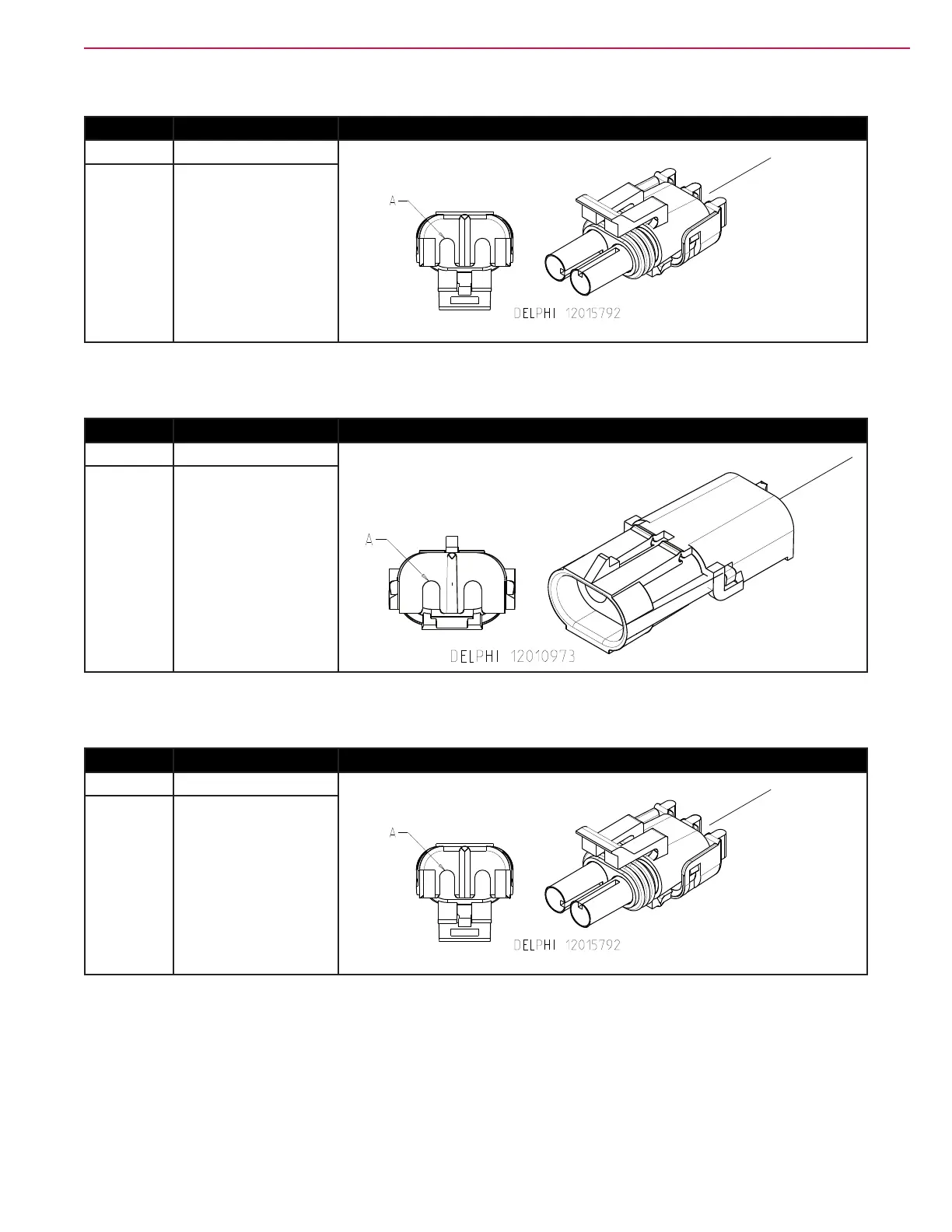

X12 Connects to H2 Flashing Lamp X11
Pin No. Wire ID
A BLK 18-7
B ORN 18-6
X13 connects to M12 Solution Control Pump X14
Pin No. Wire ID
A VIO 18-13
B BLU/ORN 18-1
X16 Connects to L1 Solution Solenoid Valve X15
Pin No. Wire ID
A YEL/GRN 18-1
B VIO 18-9
