Electrical System 65Service Manual – SC6500

™

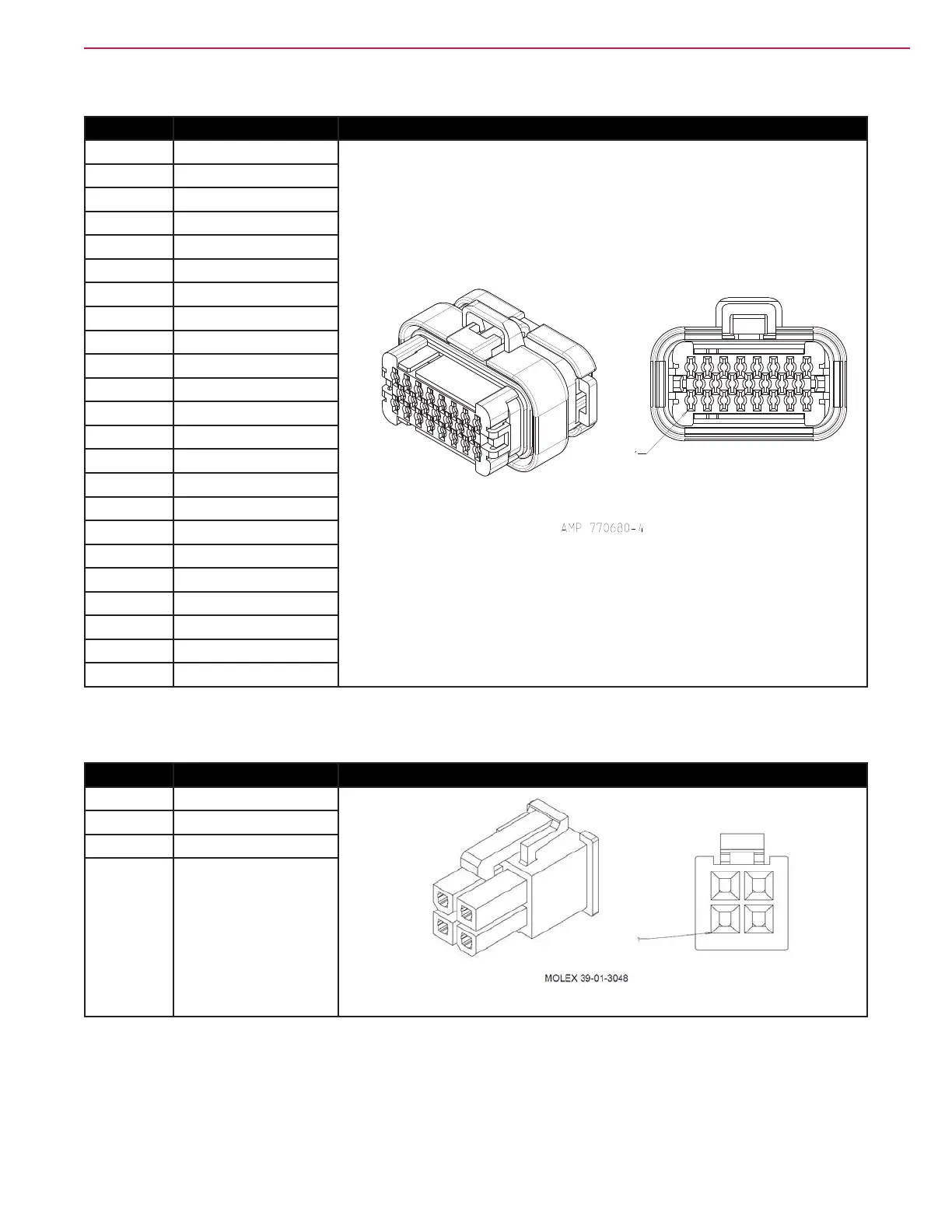

J2 Connects to A2 Control Board

Pin No. Wire ID

1 WHT/GRN 18-1

2 BRN 18-1

3 ORN/BLU 18-1

4 ORN/BLK 18-1

5 YEL/GRA 18-1

6 RED/BLK 18-1

7 GRN/ORN 18-1

8 GRA/VIO 18-1

9 BLU/BRN 18-1

10 BLK 16-1

14 BLK 16-2

15 BRN/BLK 18-1

16 GRN/WHT 18-1

17 VIO/YEL 18-1

18 ORN/BRN 18-1

19 BLU/BLK 18-1

20 BLK/WHT 18-1

21 BLK/ORN 18-1

22 BLU 18-1

23 BLU/WHT 18-1

J3 Connects to A3 Display Panel

Pin No. Wire ID

1 WHT/BRN 18-1

2 GRA 18-1

3 GRN/BLU 18-1

4 BRN/BLU 18-1
