Control System 45Service Manual – SC6500
™
– The control panel display will read REVERSE when the operator foot pedal is depressed in the reverse
direction to activate its reverse drive mode functions.
Control Panel Switch and Button Functions

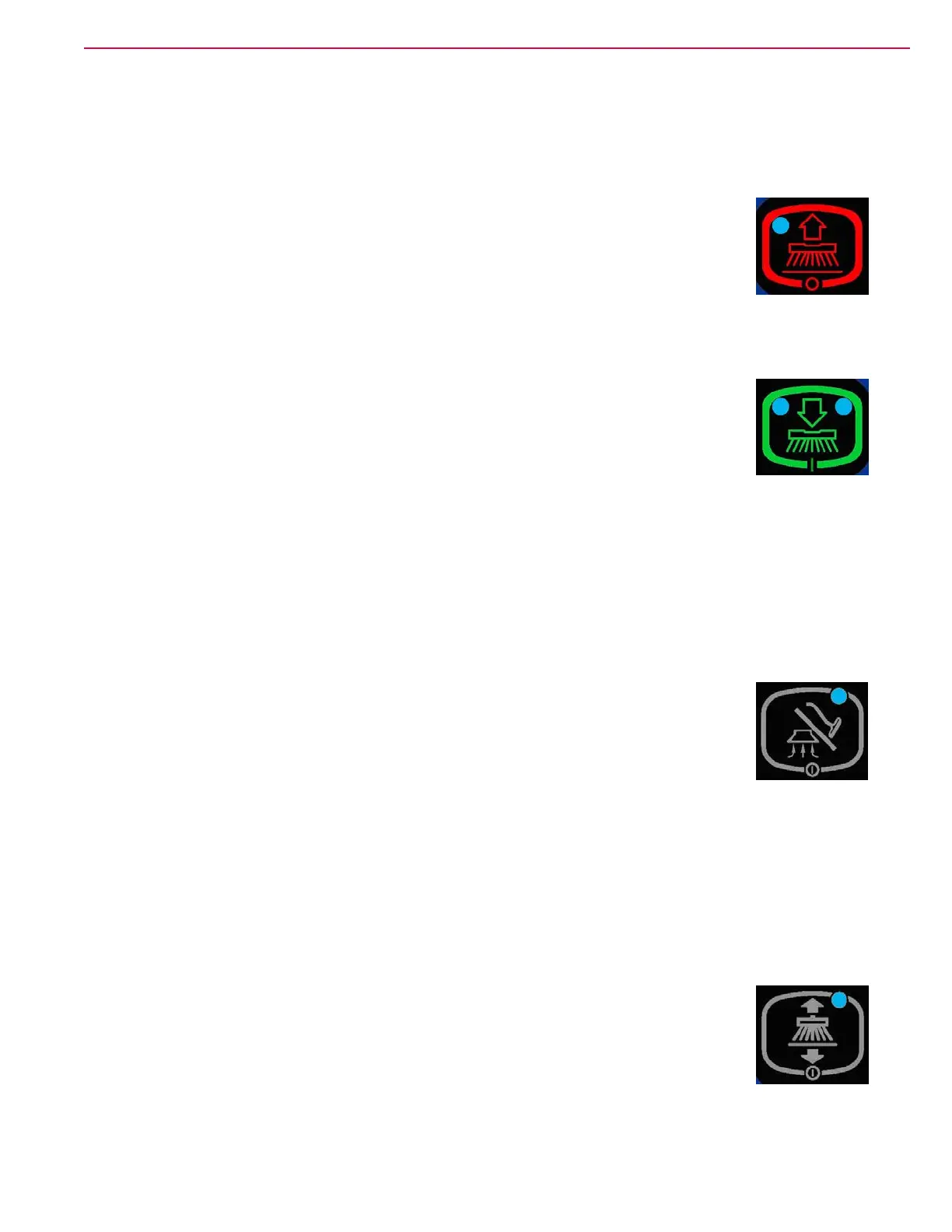

• Scrub System Off Switch – This switch controls the scrub brush motor(s). Pressing and
releasing this switch will alternately turn the brush motor(s) on and off. The scrub off
indicator provides the following status information:
– Off - Brush motor output is off and there is no brush motor current sensed.
– Steady Blue - Brush motor output is on and there is normal brush motor current
sensed.
• Scrub ON/Pressure Select Switch – This switch controls the scrub deck lift actuator as
follows:
– Pressing the switch the rst time will switch on the actuator to lower the scrub
deck. The normal scrub indicator (left blue LED) will light as the actuator is
running. Once the deck reaches the down position, the normal scrub indicator will
blink.
– Pressing the switch a second time will switch off the normal scrub indicator.
– Pressing the switch a third time will switch on the actuator to raise the scrub deck. The normal scrub
indicator will light as the actuator is running. Once the deck reaches the up position, the normal scrub
indicator will blink.
– Pressing the switch a fourth time will switch off the normal scrub indicator.
• Vacuum/Wand Switch – This switch controls the squeegee lift actuator and vacuum
motor(s) as follows:
– Pressing the switch the rst time will switch on vacuum motor(s) and switch on
the actuator to lower the squeegee. The vacuum/wand indicator will light as the
actuator is running. Once the squeegee reaches the down position, the vacuum/
wand indicator will blink.
– Pressing the switch a second time will switch off the vacuum/wand indicator.
– Pressing the switch a third time will switch off the vacuum motor(s) and switch on the actuator
to raise the squeegee. The vacuum/wand indicator will light as the actuator is running. Once the
squeegee reaches the up position, the vacuum/wand indicator will blink.
– Pressing the switch a fourth time will switch off the vacuum/wand indicator.
• Side Broom On/Down Switch – This switch controls the side broom motors and side
broom lift actuator as follows:
– Pressing the switch the rst time will switch on side broom motors and switch on
the actuator to lower the side brooms. The side broom on/down indicator will light
as the actuator is running. Once the side brooms reach the down position, the side
broom on/down indicator will blink.
– Pressing the switch a second time will switch off the side broom on/down indicator.
