Steering System 163Service Manual – SC6500
™
Steering System
Functional Description

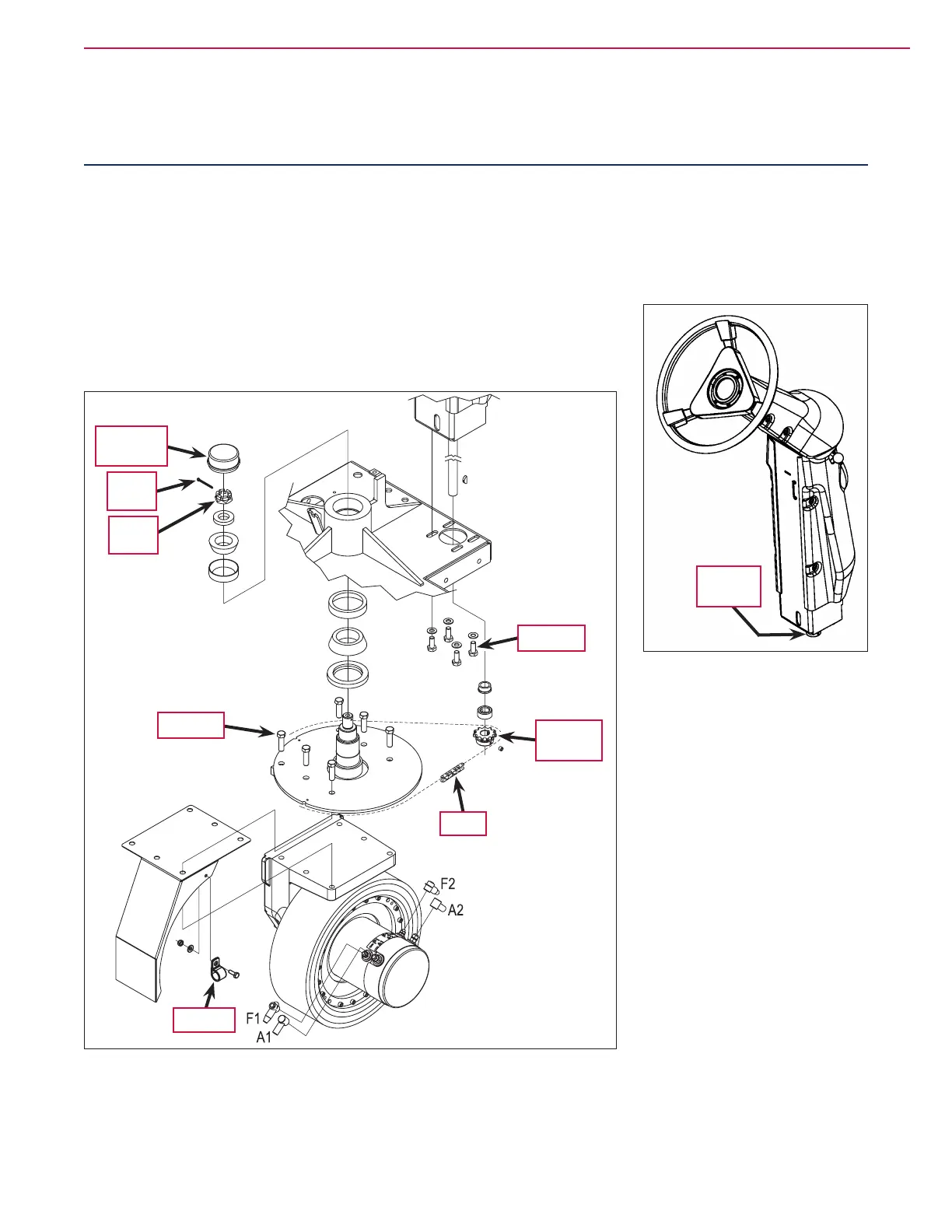

Drive Wheel Steering Assembly
The steering assembly transfers the steering wheel rotation through the
steering shafts and universal joint to the Steer Sprocket at the bottom
of the assembly. The Steer Sprocket runs a chain connected to the front
spindle weldment to turn the drive wheel left and right.
P-clamp
Chain
Screw (4)
Steer
Sprocket
Bearing
Dust Cap
Cotter
Pin
Castle
Nut
Screw (6)
Steer
Sprocket
