Solution System 143Service Manual – SC6500
™
Component Locations
Shutoff Valve
The Shutoff Valve is located underneath the
solution tank on the left rear side of the machine.
Solution Level Switch
The solution level switch is a oat switch in the bottom of the solution tank. It reports when the tank is
nearly empty. The solution system indicator will ash to remind the operator of the low-solution condition,
but the machine will continue to function.
S5 Solution Empty
Switch

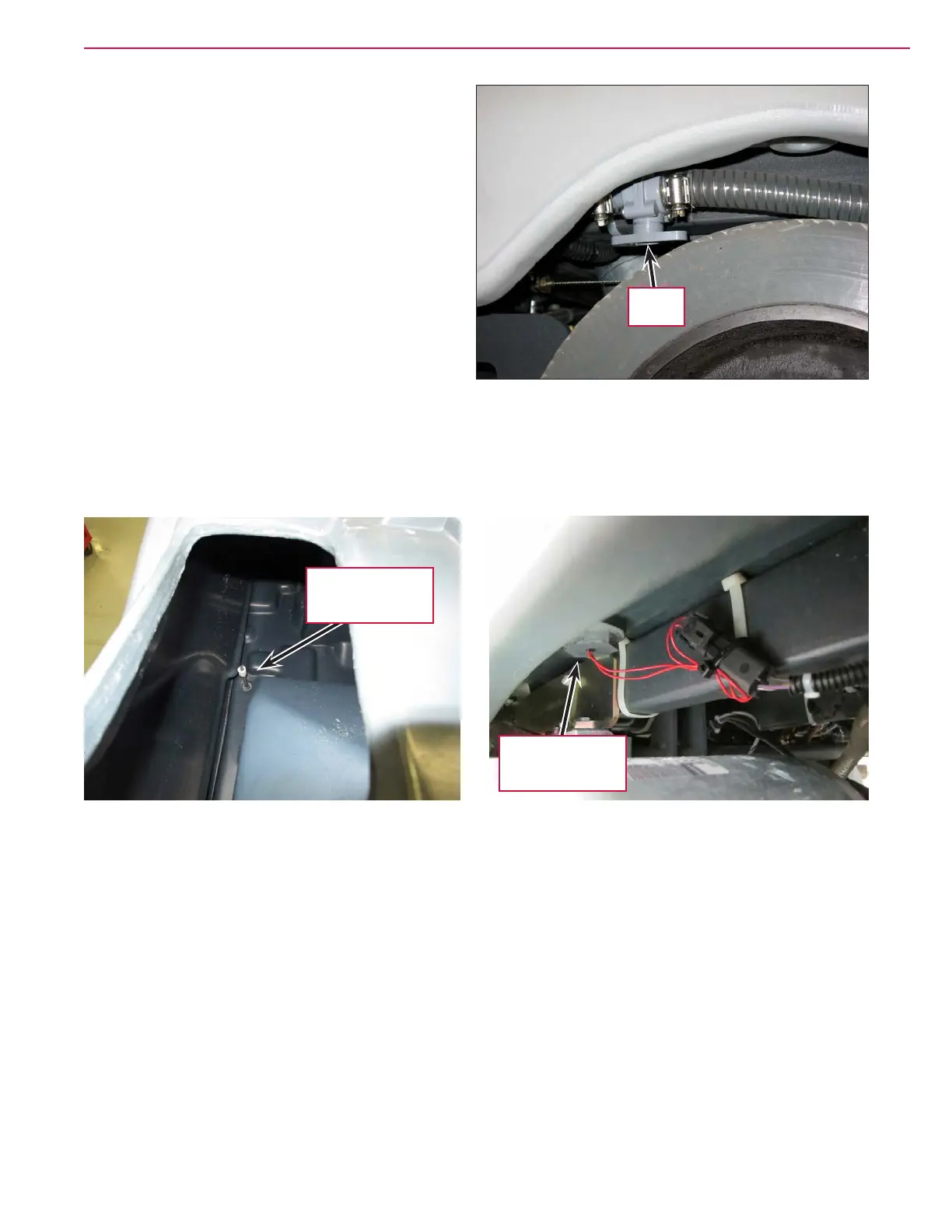

Viewed from solution tank fill opening Viewed from under solution tank
S5 Solution Empty
Switch
Shutoff
Valve
