Scrub System, Cylindrical 113Service Manual – SC6500
™
Side Skirt Replacement and Adjustment
During normal use the side skirt blades will wear in time. The operator will notice a small amount of water
leaking out underneath the side skirts. You can easily adjust the side skirt height to lower the blades to
allow the squeegee to pick up the water more effectively.
To reverse or replace the scrub system side skirt blade(s):

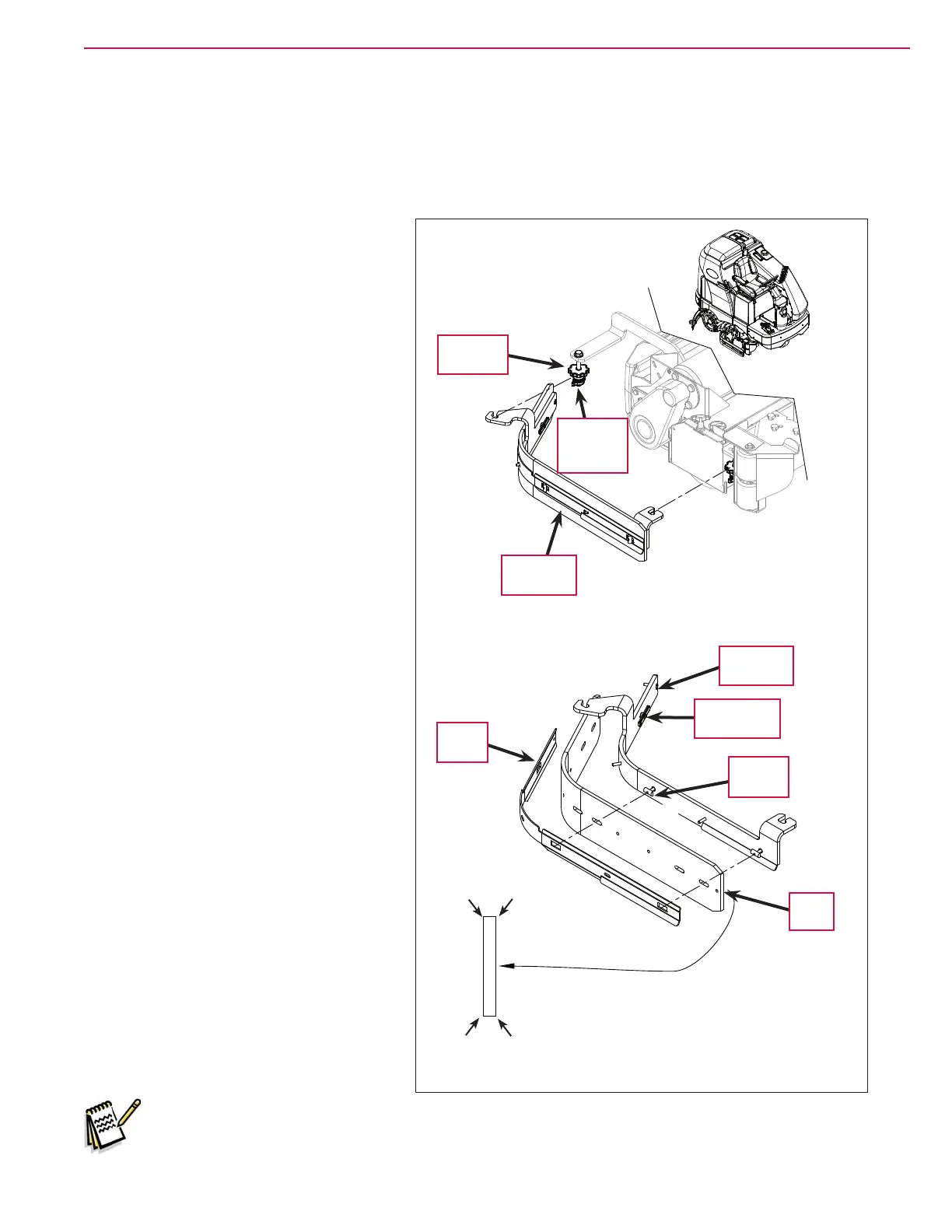

1. Loosen the two side skirt Retainer
Knobs
(two per side) and remove
the Side Skirt Assemblies from the
scrub deck. Remove the Side Skirt
Assemblies
by rst sliding them
forward, then pulling them off.
2. Remove all the hardware that
holds the Skirt Blades to the
Bracket Weldments. Note that the
Skirt Blade is held on with tool-less
retainers. Simply loosen the large
Thumb Nuts, then turn the Knobs
on the outside of the Skirt Strap
until they are horizontal, then
push them through the slots.
3. The main Skirt Blade has four
working edges as shown. Turn the
Skirt Blade so a clean, undamaged
edge faces toward the center of
the machine. Replace the Skirt
Blades
as a set if all four edges are
nicked, torn or worn beyond their
ability to be adjusted.
4. Reinstall the Side Skirt Assemblies
onto the machine and check the
height of the Skirt Blades for
correct contact on the oor when
the brush deck is lowered to the
scrub position. The Skirt Blades
should fold over just enough when
scrubbing that all the waste water
is contained inside the skirting. If
necessary, adjust the height of the
Side Skirt Assemblies as follows:
a. Loosen the Retainer Knobs.
b. Rotate the Height Adjusting
Knobs
to raise or lower
the Side Skirt Assembly as
necessary.
c. When the Skirt Blade contact
is correct, tighten the Retainer
Knobs
.
Note: Make small adjustments to obtain good blade wiping. Do not lower the blades too much to
where they fold over excessively as this can cause excessive blade wear.
Retainer
Knob (2)
Side Skirt
Assembly
Thumb
Nut (typical)
Knob
(typical)
Skirt
Blade
1
3
2
4
Skirt
Strap
Bracket
Weldment
Height
Adjusting
Knob (2)
