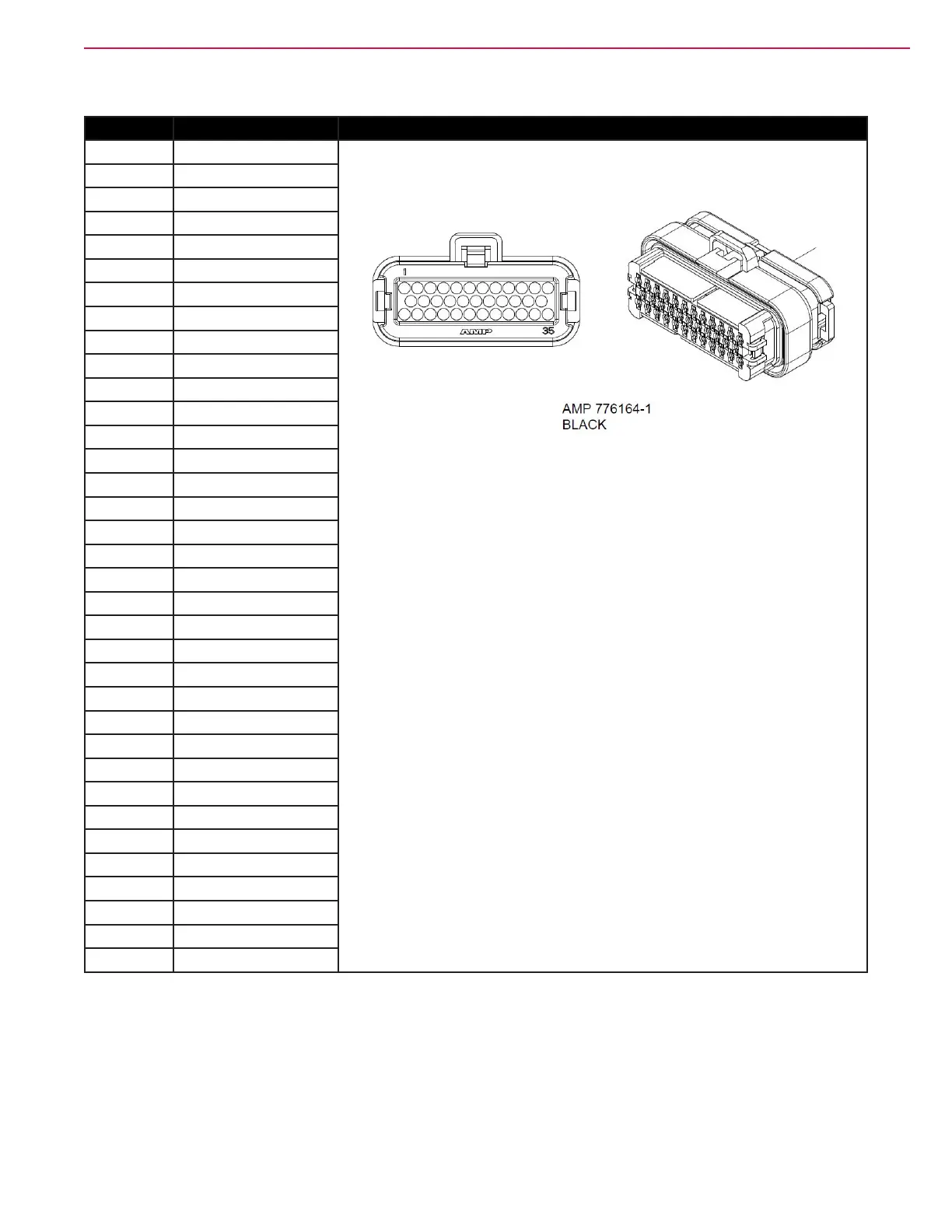

Electrical System 66Service Manual – SC6500
™
X6 Connects to A1 Speed Controller
Pin No. Wire ID
1 ORN
2
3 ORN/RED
4 YEL/RED
5 RED/WHT
6 BLK/YEL
7 BLK/PINK
8 TAN/RED
9 GRN
10 BLU/BLK
11 BLK/WHT
12
13
14
15 VIO/BLK
16 BRN/RED
17
18 WHT/BLK
19
20
21
22
23
24
25 VIO/WHT
26 PINK/RED
27
28 WHT/ORN
29 BLU/GRN
30
31 PINK/WHT
32 PINK/BLU
33
34
35
