Section 4 Screen Types and Operations 4-1 Basic Operations
NS-Designer Operation Manual

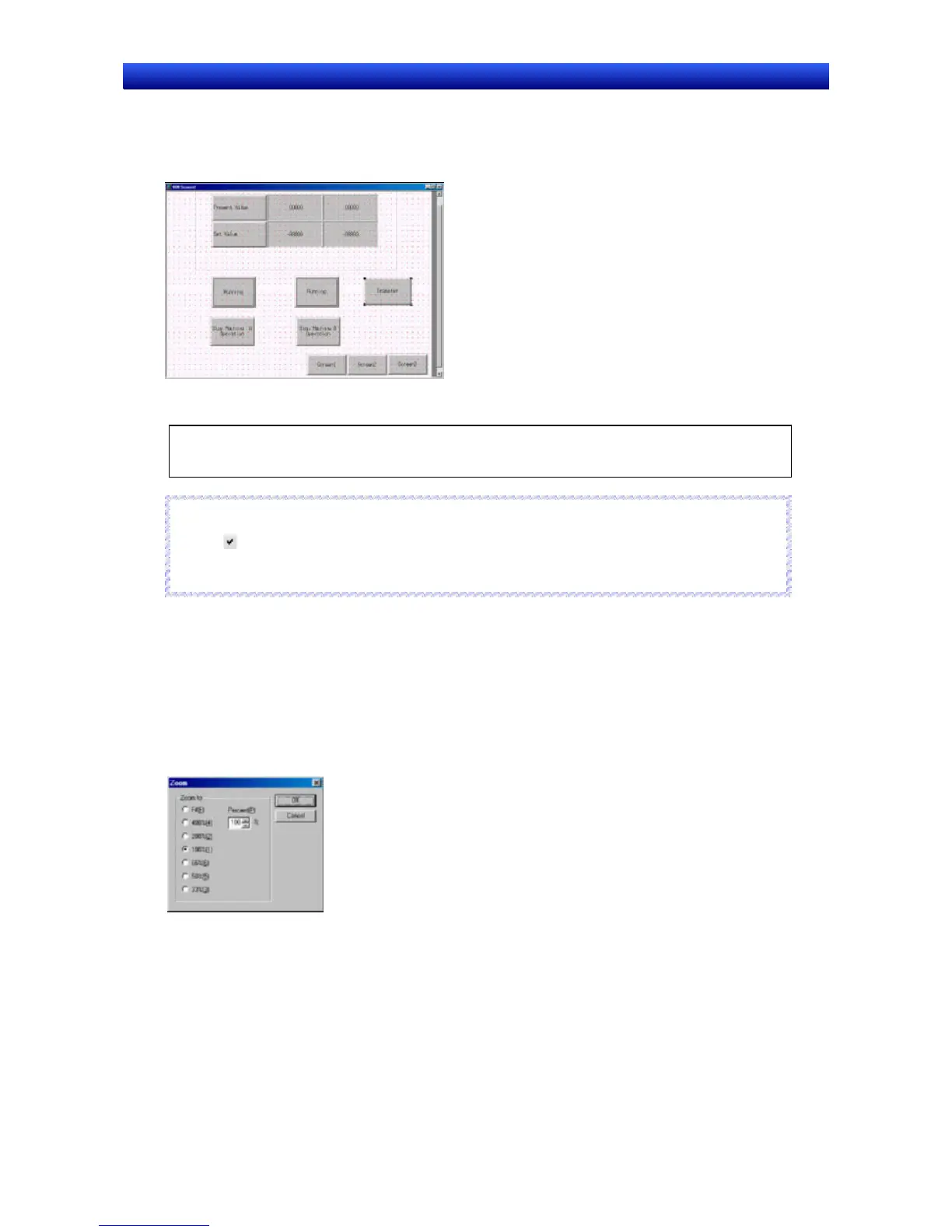

4-1-6 Show Touch Points
This function is used to display the points where the PT touch points are positioned in the screen. Use
this function to check that the functional objects are arranged above touch points.
Select View - Show Touch Points.
Note Touch input will not be recognized if the functional objects are not created above the
touch points. Therefore, always arrange the functional objects above the touch points.
Refer to Arranging Functional Objects under 5-1 Creating Functional Objects for details.
Reference
♦ The symbol before the Show Touch Points Menu item indicates that the touch points are cur-
rently displayed.
♦ To return to the normal display, select View - Show Touch Points again.
R
R
e
e
f
f
e
e
r
r
e
e
n
n
c
c
e
e
4-1-7 Zoom
Zooms the screen display up and down.
Use the Zoom Dialog Box to specify the magnification between 25% and 800%. Select Fit to zoom the
display up or down to fit the current window size.
1. Select View - Zoom.
The Zoom Dialog Box will be displayed.
2. Select the magnification and then click the OK Button.
4-16
