Section 5 Object Operations 5-11 Listing Addresses Used
NS-Designer Operation Manual NS-Designer Operation Manual NS-Designer Operation Manual
5-11 Listing Addresses Used
Displays a list of the number of functional objects using each address and a list of functional objects
using each address. Can also jump to specified functional object screen positions.
Displaying Lists of Used Addresses
Displays a list of addresses that are used.

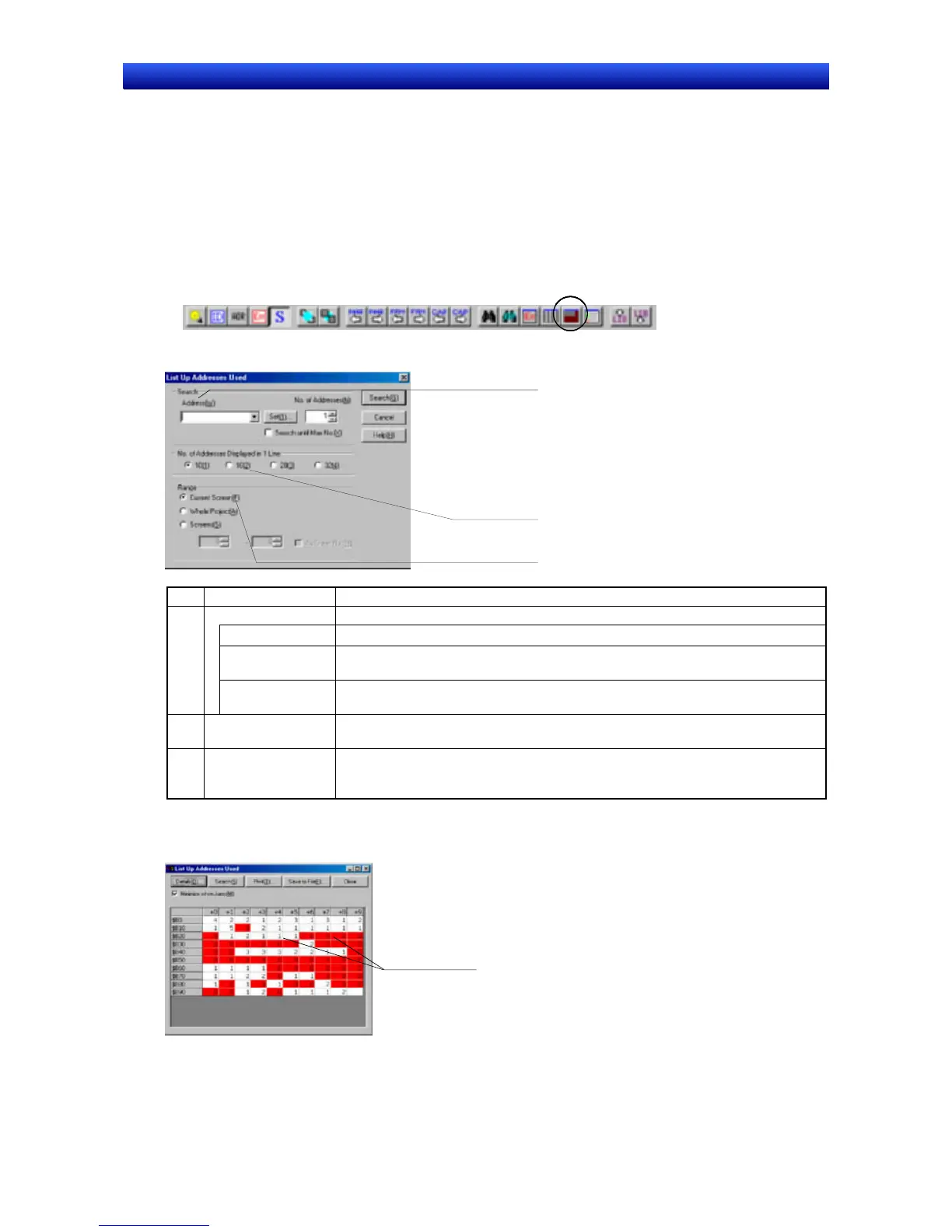

1. Either select Tools – List Up Addresses Used or click the List Up Addresses Used Button on
the toolbar.
Toolbar
The List Up Addresses Used Dialog Box will be displayed.
1
2
3
No. Setting Details
1 Search Specifies the conditions for the address search.
Address Sets the start address for the search range.
No. of Addresses Specifies how many words or bits to search for from the address specified under
Address.
Search until Max
No.
Select (turn ON) Search until Max No. to search until the largest bit or word from
the address specified under Address.
2 No. of Addresses
Displayed in 1 Line
Sets the number of addresses displayed in one line.
3 Range Select the search range from Current Screen, Whole Project, or Screens. If As
Sheet No is selected (turned ON), functional objects in sheets will be the display
range.
2. Make the settings and then click the Search Button.
3. The used bits and words are displayed for each address.
Red: Not used
White: Displays the number of
used bits and words.
