Section 5 Object Operations 5-12 Cross-referencing Addresses
NS-Designer Operation Manual NS-Designer Operation Manual NS-Designer Operation Manual

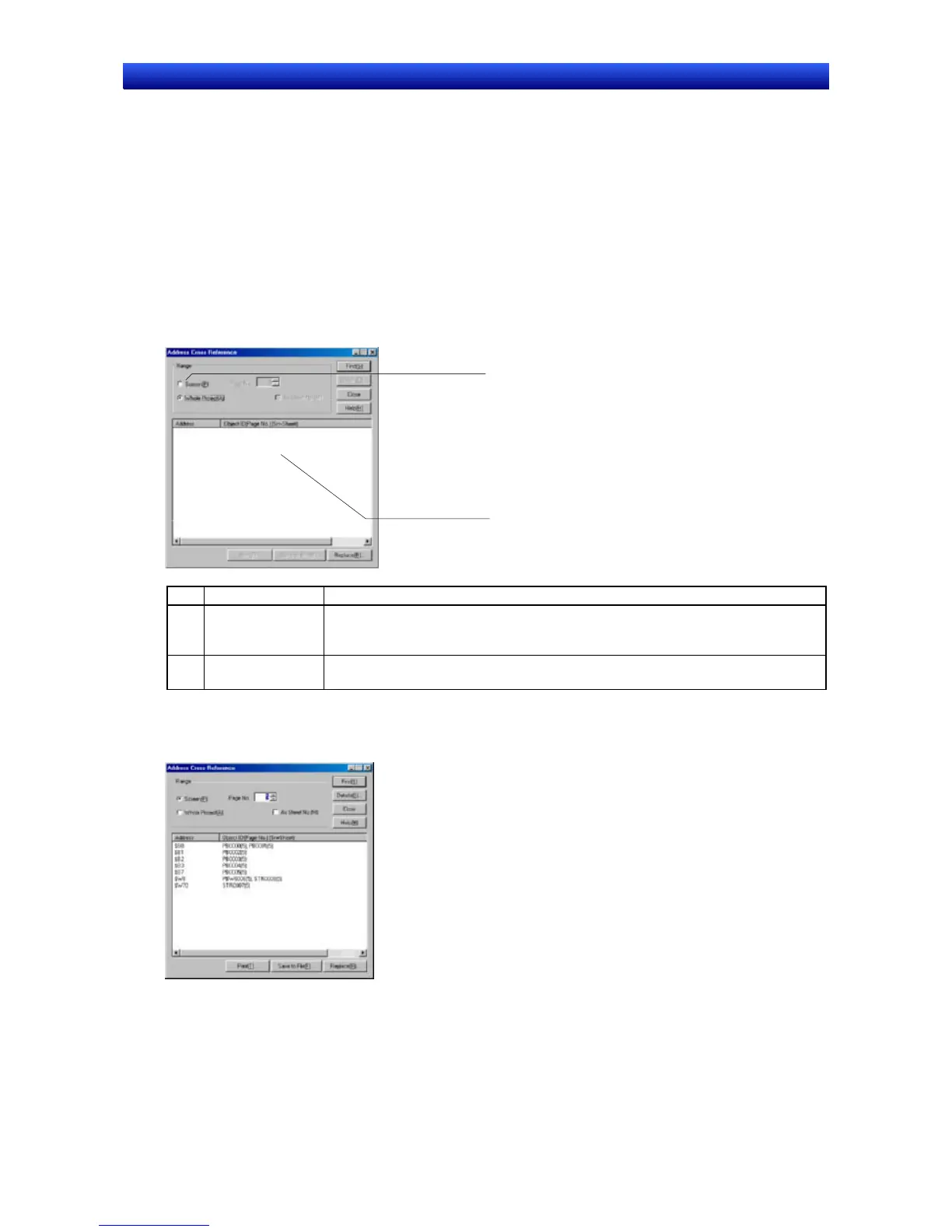

5-12 Cross-referencing Addresses
Searches and displays in a list the status of addresses and functional objects in each screen. Ad-
dresses allocated to each functional object can also be replaced and search results can be output to
files or printed.
Displaying Address Cross References
Searches and displays in a list the status of addresses and functional objects.
1. Select Tools – Address Cross Reference.
2. The Address Cross Reference Window will be displayed. Set the search conditions.
1
2
No. Setting Details
1 Range Select either Whole Project or Screen as the search range for the address cross
reference display. If As Sheet No is selected (turned ON), address cross references
in sheets will be the range for the search.
2 Search Results
Display Area
Executes the search and displays a list of search results.
3. Make the settings and then click the Find Button.
A list of search results will be displayed.
Addresses and Functional Object ID Numbers (Screen Page Numbers)
Note: An “S” will appear before sheet page numbers.
Example: PB0001(S3) is an ON/OFF Button on sheet page 3.
5-59
To Next Page
