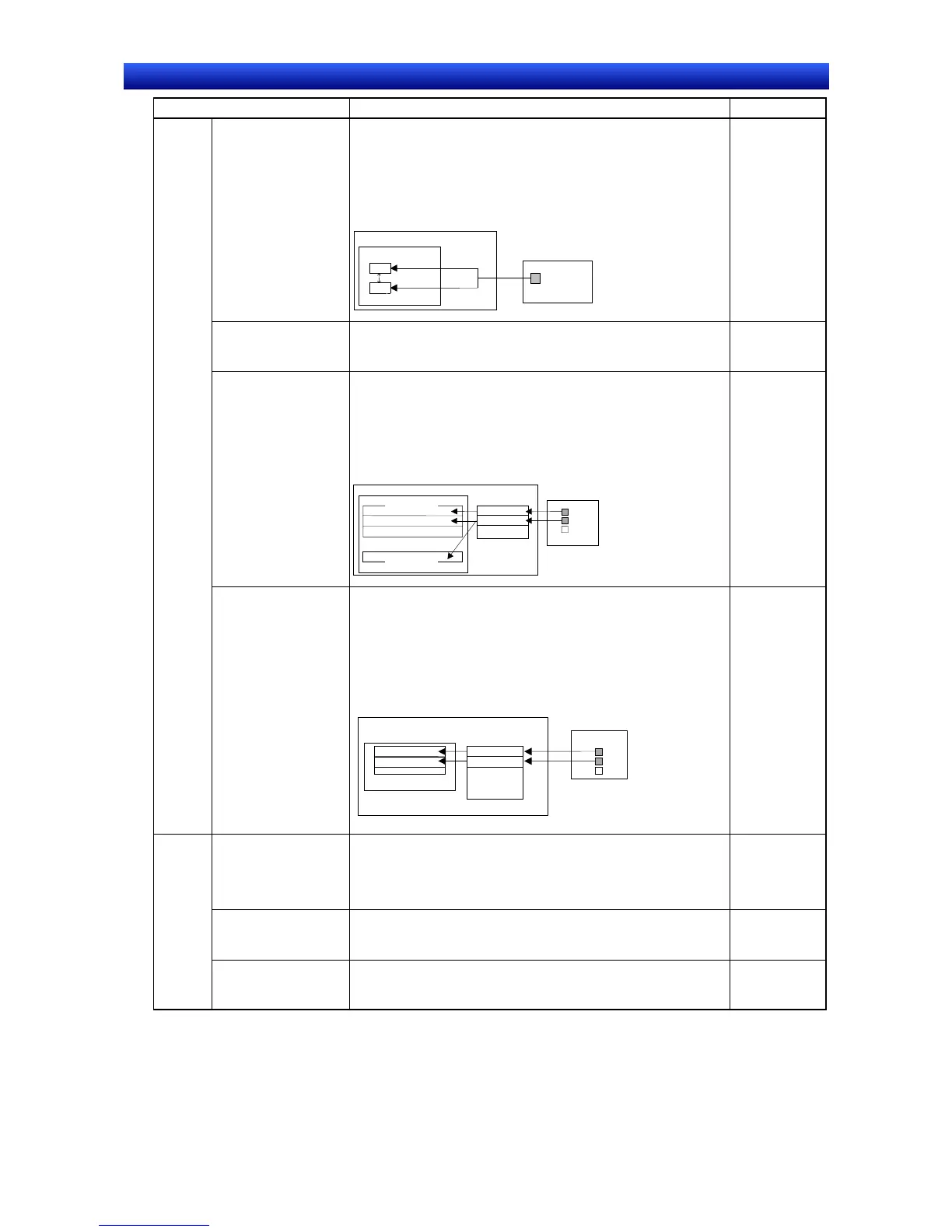

Appendices Appendix 1 Quick Reference
A-3
N
S
-
Desi
g
ner O
p
eration Manual
Item Procedure Reference
PLC bit
status
display
Controlling displayed
text based on PLC bit
ON/OFF status
1. Create an ON/OFF button object (Functional Object -
ON/OFF Button).
2. Turn ON the Switch Labels for Address ON/OFF setting on
the Text Tab Page of the Properties Setting Dialog Box. Then
select Link with the Specified Address ON/OFF and set the
PLC bit.
DEF
Screen
PT
ABC
PLC
Bit
When ON
When OFF
Programming
Manual Sec-
tion 2-9
Controlling displayed
text based on PLC bit
ON/OFF status
Create a text object and select Indirect Reference of String on
the Label Tab Page. The displayed text will change according to
ON/OFF status of the PLC bit.
Programming
Manual Sec-
tion 2-12
Displaying an alarm or
event message based
on PLC bit ON/OFF
status
1. Set the display message and the PLC bit in the alarm/event
settings (Settings - Alarm/Event Setting).
2. To display one line, create an alarm/event display object
(Functional Objects - Alarm/Event Display) and to display
a list, create an alarm/event summary history object (Func-
tional Objects - Alarm/Event Summary History).
PT
Screen
PLC
Alarm /Event2
Al
a
rm
/
Ev
e
n
t
1
Alarm/Event Setting
Alarm/Event Summar
y
Histor
y
Alarm/Event Dis
p
la
y
Alarm /Event2
Al
a
rm
/
Ev
e
n
t
1
Al
a
rm
/
Ev
e
n
t
2
•
•
•
•
Programming
Manual Sec-
tion 2-13
Recording a history of
PLC bit ON/OFF
status, saving it in the
PT, and displaying it
for confirmation
1. Set the display message and the PLC bit in the alarm/event
settings (Settings - Alarm/Event Setting).
2. Create an alarm/event summary history object (Functional
Objects - Alarm/Event Summary History).
3. Select Alarm history for the display data on the General Tab
Page in the Property Setting Dialog Box.
Programming
Manual Sec-
tion 2-13
Displaying numeric
data
Use a numeral display and input object (Functional Object -
Numeral Display & Input). To prevent input, turn ON Display
Expansion Tab on the Control Flag Tab Page of the Property
Setting Dialog Box and disable input.
Programming
Manual Sec-
tion 2-11
PLC
word
status
display
Displaying a level
meter
Create a level meter object (Functional Object - Level Meter).
Programming
Manual Sec-
tion 2-12
Displaying an ana-
logue meter
Create an analogue meter object (Functional Object - Ana-
logue Meter).
Programming
Manual Sec-
tion 2-12
Alarm /Event2
PT
Screen
PLC
Alarm /Event1
Alarm/Event Setting
Alarm /Event1
Alarm/Event Summary
History
•
•
•
•
Alarm /Event2
