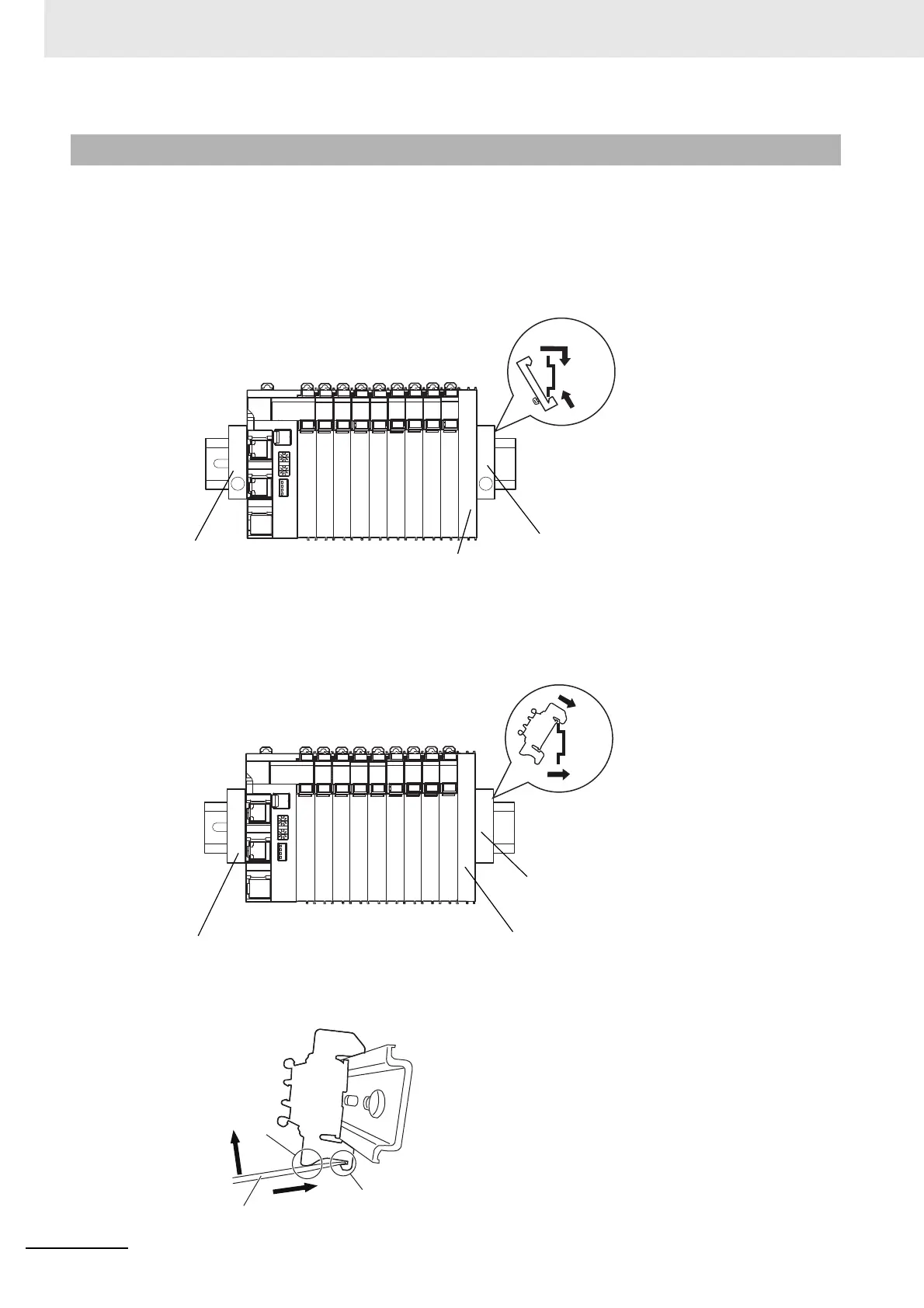

After you mount the End Cover, secure the EtherCAT Slave Terminal with End Plates.
 Using PFP-M (OMRON)
To mount an End Plate, 1) hook the bottom of it on the bottom of the DIN Track and 2) rotate the End
Plate to hook the top of it on the top of the DIN Track.
Then tighten the screw to lock the End Plate in place.
 Using CLIPFIX 35 (Phoenix Contact)
To mount an End Plate, 1) hook the top of it on the top of the DIN Track and 2) rotate the End Plate to
hook the bottom of it on the bottom of the DIN Track. Press in until you hear the End Plate lock into
place.
To remove an End Plate 1) insert the tip of a flat-blade screwdriver into groove “a” and 2) use “b” as a
fulcrum and lift the end of the screwdriver, as shown in the following diagram.
6-1-7 Mounting the End Plates
1)
2)
End Plate
End Cover
End Plate
1)
2)
End Plate
End Cover
End Plate
a
b
Flat-blade screwdriver
1)
2)
