11 EtherCAT Coupler Unit Functions
NX-series EtherCAT Coupler Unit User’s Manual (W519)
11-8 Changing Event Levels
11
11-8-3 Procedure to Change an Event Level
Use the Sysmac Studio to change an event level.
After you change an event level, always transfer the operation settings to the Controller.

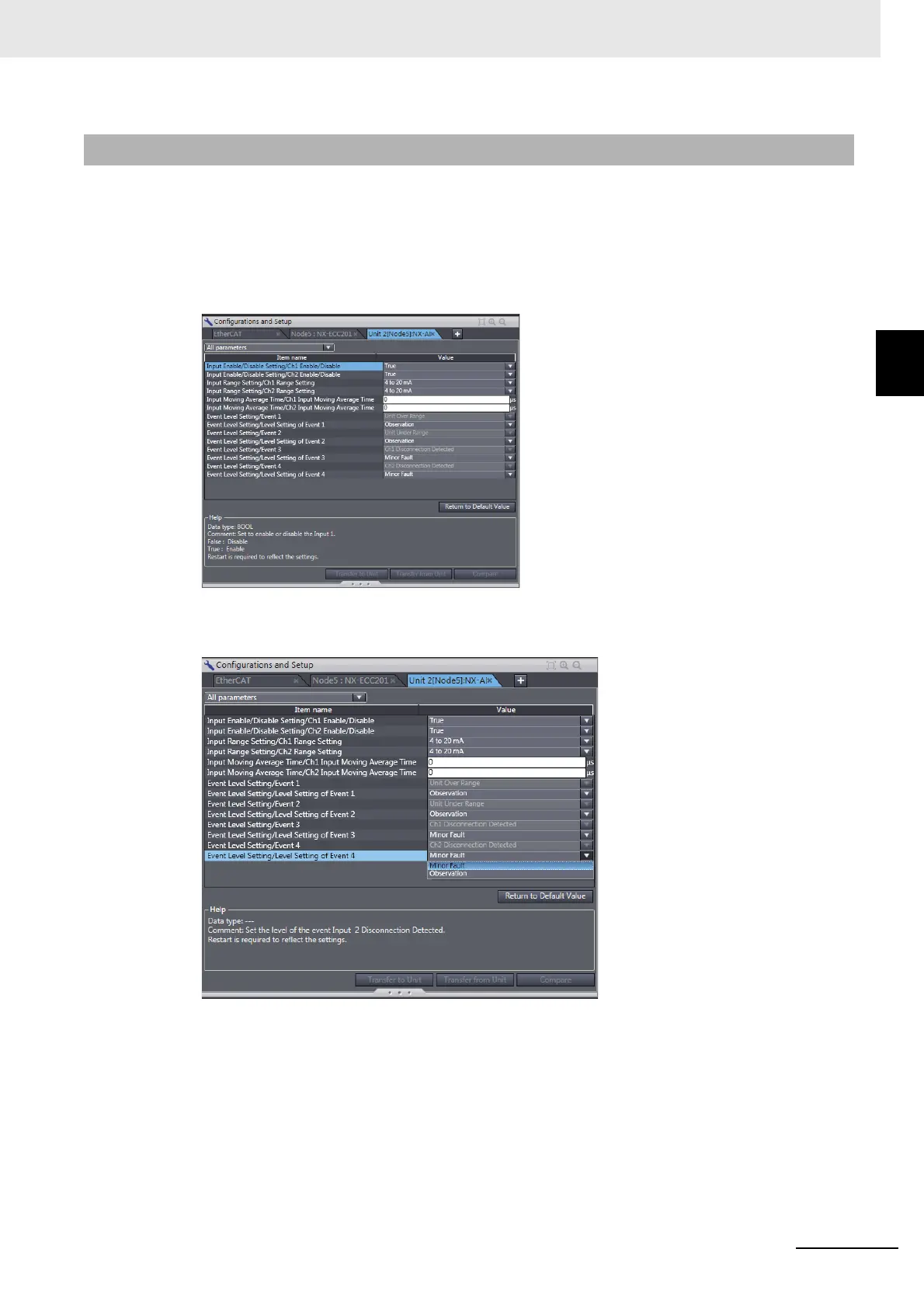

1 On the Edit Slave Terminal Configuration Tab Page, select the Unit for which to change the
event level and click the Unit Operation Settings Button.
The Edit Unit Operations Settings Tab Page is displayed.
2 From the events for which Level setting is displayed, select the event for which you want to
change the level, and then select a level from the list in the Value field.
3 After you make the change, go online and click the Transfer to Unit Button to transfer the
change to the Controller.
The specified event level is changed.
There are no events for the EtherCAT Coupler Unit for which you can change the event level. If
there are Controller events for which you can change the event level in an NX Unit, they will be
given in the manual for the NX Unit. Refer to the manuals for the NX Units.
