3 - 5

3 Specifications and Application Procedures

NX-series EtherCAT Coupler Unit User’s Manual (W519)

3-1 Specifications

3-1-3 End Cover Specifications

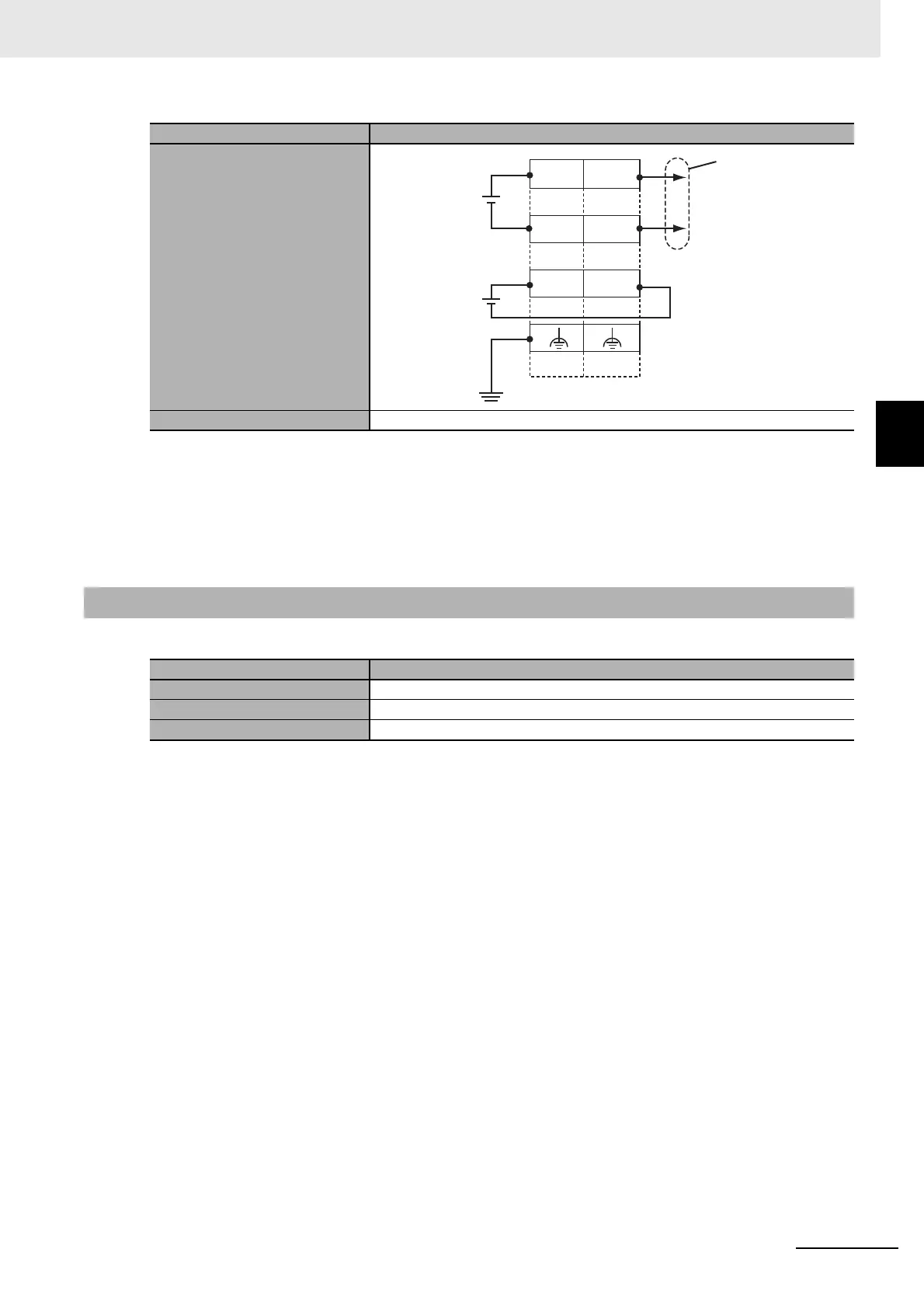

Terminal arrangement

Accessory End Cover (NX-END01): 1

*1. This specification applies to a connection to the built-in EtherCAT port on an NJ-series CPU Unit.

*2. This depends on the specifications of the EtherCAT master. The values are as follows when the EtherCAT

Coupler Unit is connected to the built-in EtherCAT port on an NJ5-series CPU Unit: 500 μs, 1,000 μs, 2,000

μs, and 4,000 μs. Refer to the NJ-series CPU Unit Built-in EtherCAT Port User’s Manual (Cat. No. W505) for

the most recent specifications.

*3. This depends on the Unit configuration.

3-1-3 End Cover Specifications

Item Specification

Model NX-END01

Dimensions 12 × 103 × 71 (W×H×D)

Weight 35 g max.

Item Specification

IOV

IOG

Unit power supply

(24 VDC)

Through-wiring

for unwired

terminals.

I/O power supply

(5 to 24 VDC)

Ground to 100

or less.
