6-1 Installing Units
6
6-1-8 Attaching Markers
o
Markers can be attached to EtherCAT Coupler Units, NX Units, and terminal blocks on NX Units to
identify them.
The plastic markers made by OMRON are installed for the factory setting. The ID information can be
written on them.
Commercially available markers can also be installed.
Replace the markers made by OMRON if you use commercially available markers now.
Installation Method
Insert the protrusions on the markers into the marker attachment locations on the EtherCAT Coupler
Units, NX Units, and terminal blocks on NX Units.
Commercially Available Markers
Commercially available markers are made of plastic and can be printed on with a special printer.
To use commercially available markers, purchase the following products.
The markers made by OMRON cannot be printed on with commercially available special printers.
6-1-8 Attaching Markers
Product name
Model number
Manufactured by Phoenix Contact Manufactured by Weidmuller
Markers UC1-TMF8 DEK 5/8
Special marker printer UM EN BLUEMARK X1 PrintJet PRO

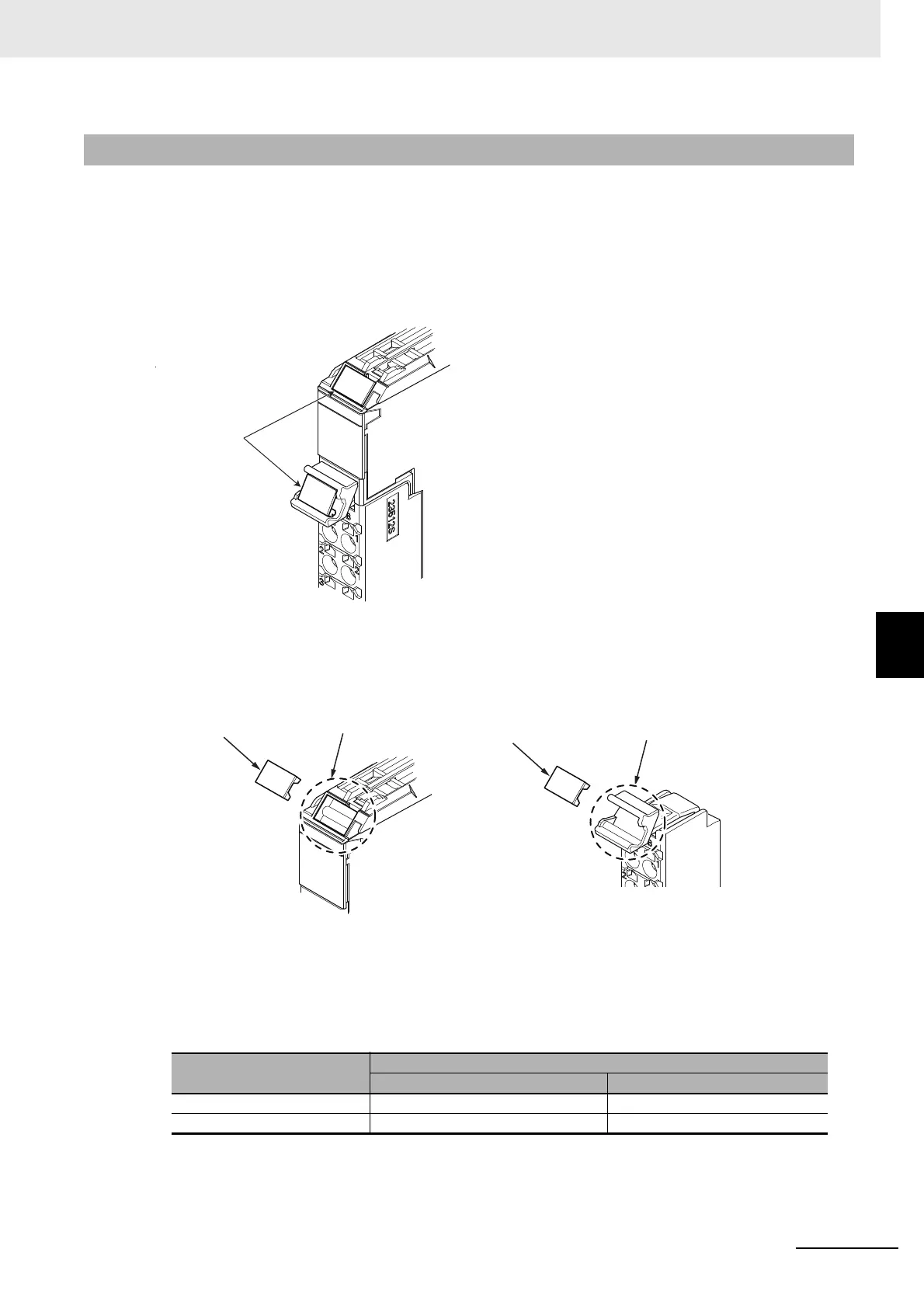

Marker
Marker
Marker attachment location
Marker attachment location
<Terminal Block><Units>
