Omron NX-ECC201 User Manual

6 Installation
6 - 20
NX-series EtherCAT Coupler Unit User’s Manual (W519)
W: Width of the EtherCAT Slave Terminal
W + (C) + (C): Width of the EtherCAT Slave Terminal including the End Plates

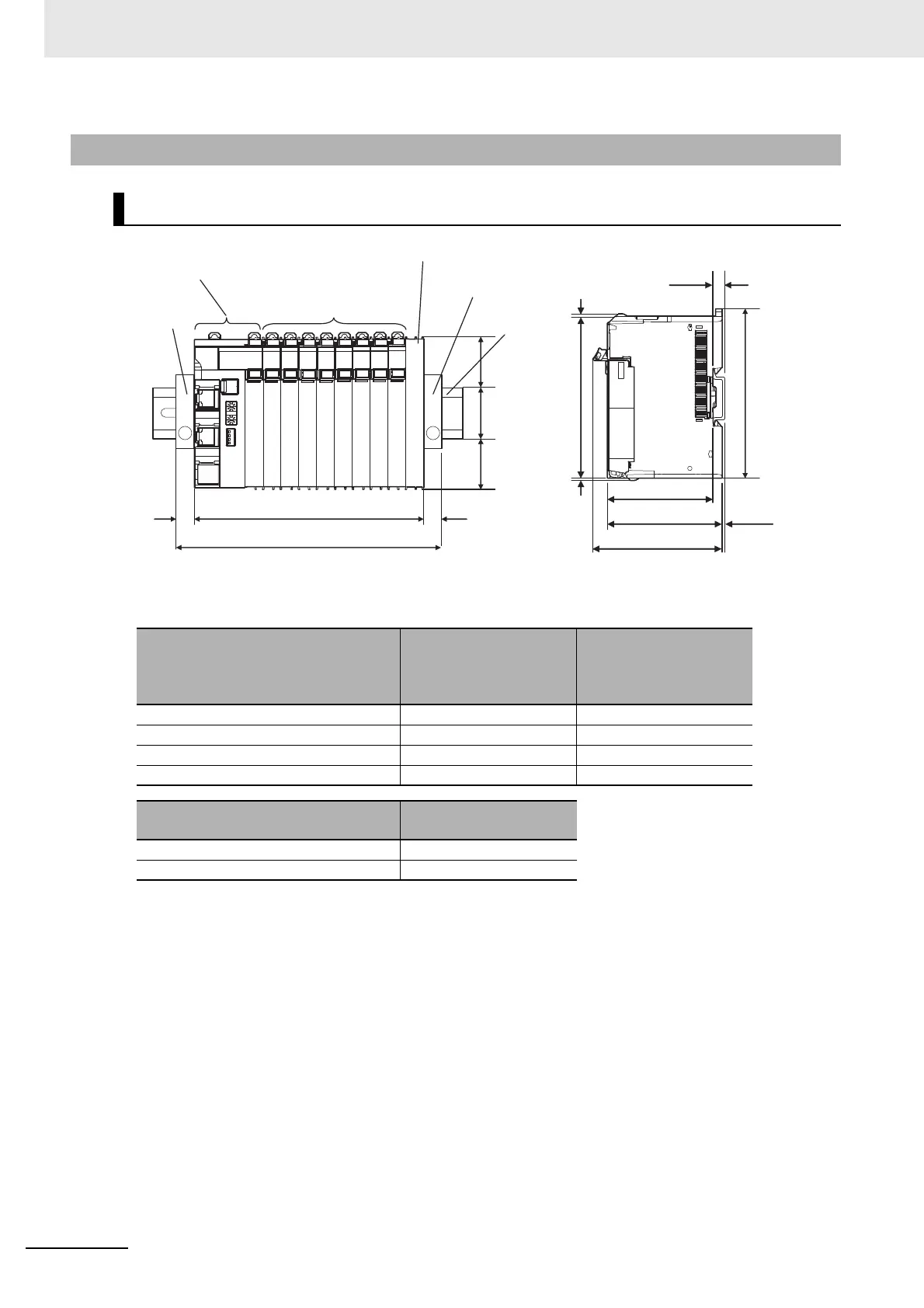

6-1-10 Assembled Appearance and Dimensions
Installation Dimensions
DIN Track model
(A)
DIN Track dimension
(B)
Dimension from the
back of the Unit to the
back of the DIN Track
PFP-100N 7.3 mm 1.5 mm
PFP-50N 7.3 mm 1.5 mm
NS 35/7,5 PERF 7.5 mm 1.7 mm
NS 35/15 PERF 15 mm 9.2 mm
End Plate model
(C)
End Plate dimension
PFP-M 10 mm
CLIPFIX 35 9.5 mm
35
34
1.5
1.5
34
(C)
EtherCAT Coupler Unit
End Plate
NX Units
End Cover
End Plate
DIN Track
(C)
(Unit: mm) (Unit: mm)
(A)
(B)
W
W+(C)+(C)
71
65.2
100
80
104.5
