To compare the EtherCAT Slave Terminal settings, connect the Sysmac Studio to the USB port of the
EtherCAT Coupler Unit to compare. Use the following procedure.
Refer to Comparing and Merging with Actual Unit Configuration of the Slave Terminal on page 9-25
under 9-2-7 Sysmac Studio Functions Used as Required on page 9-25 to compare the Unit configura-
tion.
1 Connect the Sysmac Studio to the USB port on the EtherCAT Coupler Unit.
2 In the Unit Settings Pane on the Edit Slave Terminal Configuration Tab Page, click the Online
Button next to Coupler Connection (USB) for the target EtherCAT Coupler Unit.
An execution confirmation dialog box is displayed.
3 Click the OK Button.
The Sysmac Studio goes online with the EtherCAT Slave Terminal.
4 Right-click the target EtherCAT Coupler Unit and select Coupler Connection (USB) − Com-
pare from the pop-up menu.

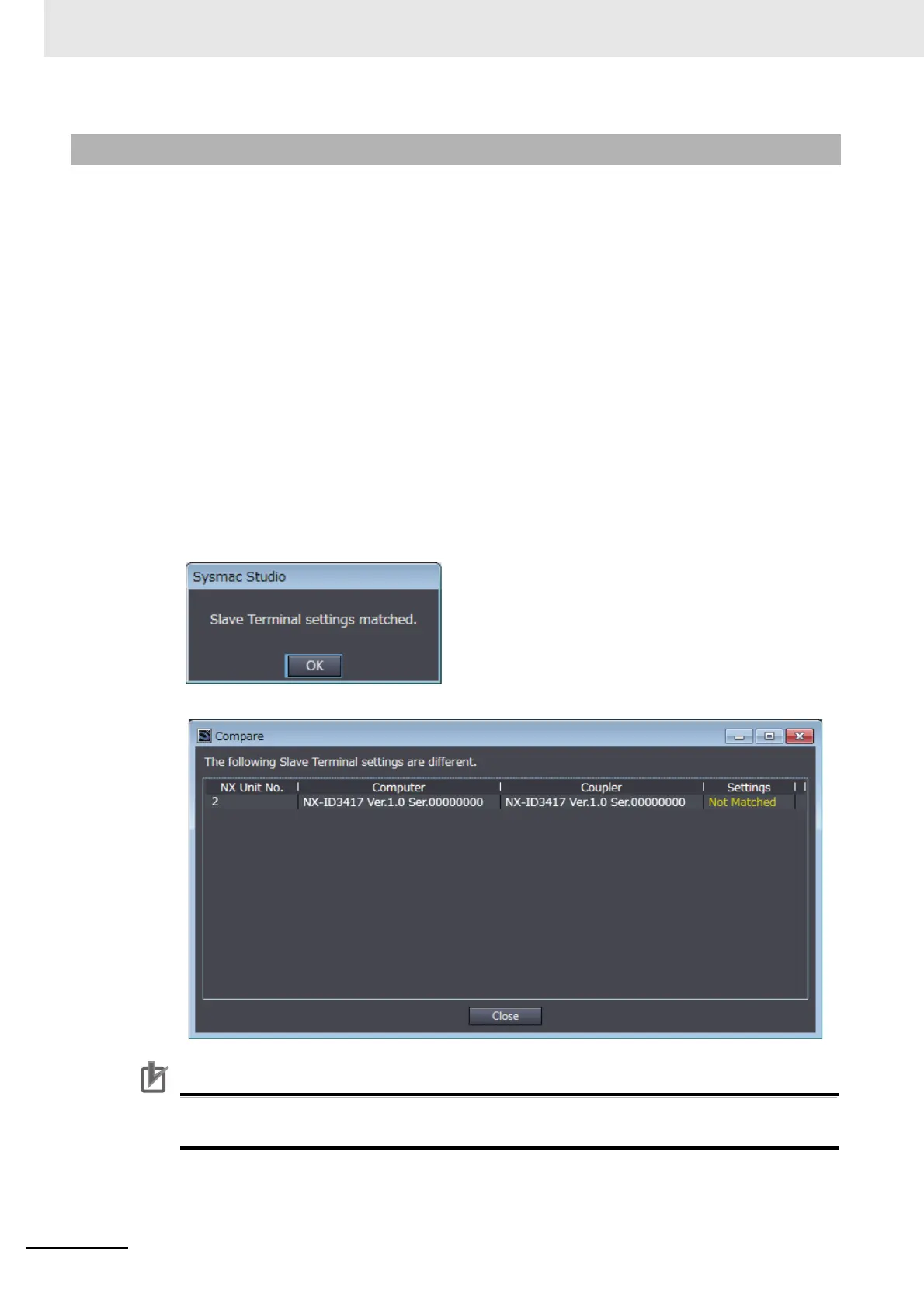

The results of the comparison are displayed as shown below.
When the Settings Are the Same:
When the Settings Are Different:
Precautions for Correct Use
You cannot compare the EtherCAT Slave Terminal settings if you connect the Sysmac Studio to
the CPU Unit.
9-4-2 Comparing Settings
