11 - 7
11 EtherCAT Coupler Unit Functions
NX-series EtherCAT Coupler Unit User’s Manual (W519)
11-2 NX Unit Mounting Settings
11

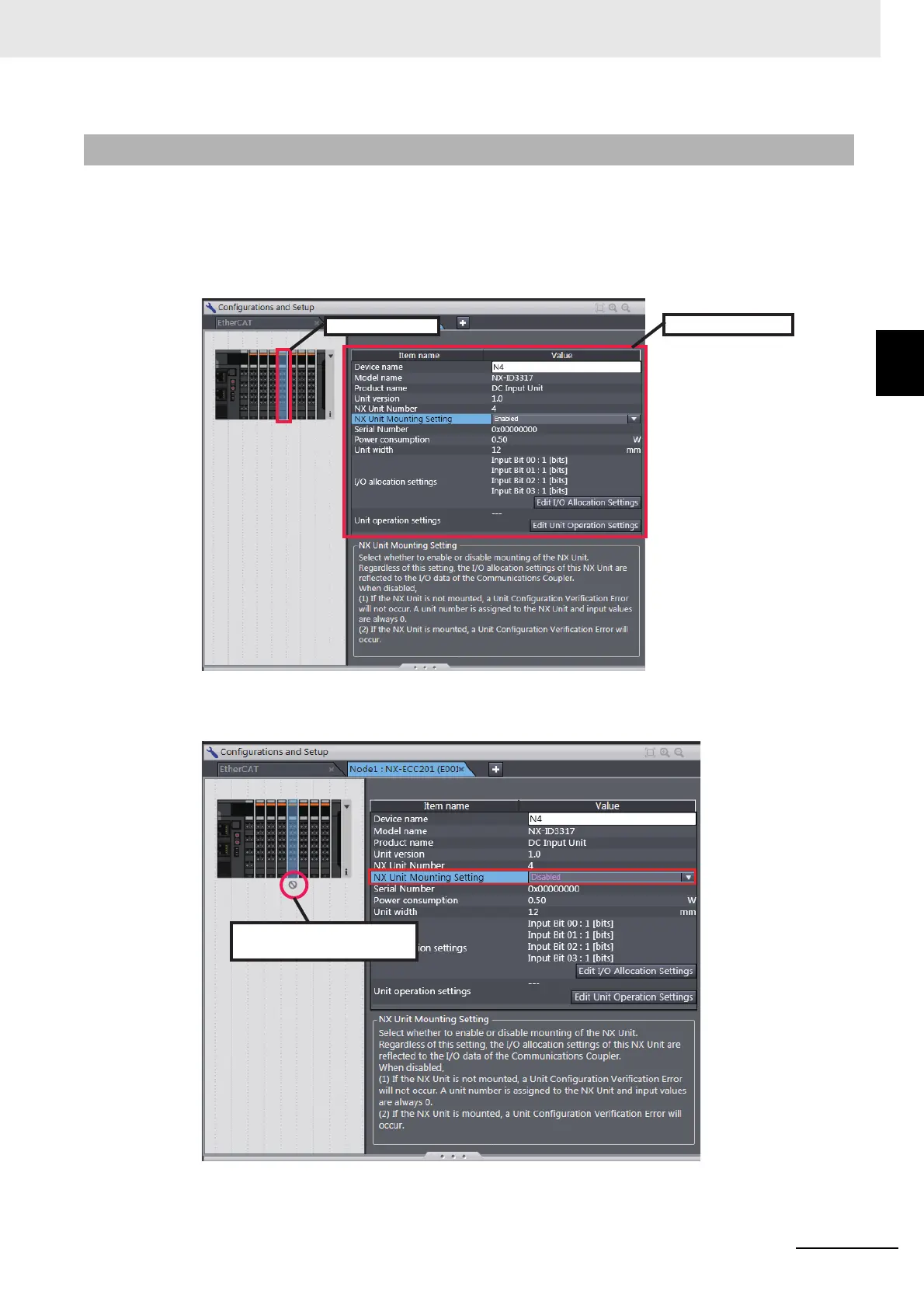

11-2-4 Setting NX Units as Unmounted Units
You use the Sysmac Studio to set NX Units as unmounted Units. After you change the settings for any
NX Units, always transfer the Unit configuration information to the EtherCAT Slave Terminal.
1 Select the NX Units to set as unmounted Units from those that are registered to the EtherCAT
Coupler Unit on the Edit Slave Terminal Configuration Tab Page.
The Unit Settings Pane is displayed.
2 In the Unit Setting pane, set the NX Unit Mounting Setting to Disabled.
The selected NX Unit is set as an unmounted Unit.
To change an NX Unit that is set as an unmounted Unit to a mounted NX Unit, set the NX Unit Mounting
Setting to Enabled in step 2.
11-2-4 Setting NX Units as Unmounted Units
Selected NX Unit
Unit Settings Pane
This shows that the NX Unit is
set as an unmounted Unit.
To Next Page
