You can back up, restore, and compare the entire NJ-series Controller to an SD Memory Card that is
inserted in the NJ-series CPU Unit.
Refer to NJ-series CPU Unit Software User’s Manual (Cat. No. W501-E1-06 or later) for details on the
SD Memory Card backup functions.
You can use the Sysmac Studio to execute the backup, restore, and compare functions for the entire
Controller with which the Sysmac Studio is online.
Refer to the NJ-series CPU Unit Software User’s Manual (Cat. No. W501-E1-06 or later) for details on
the Sysmac Studio backup functions.
Precautions for Correct Use
This function is not supported if the Sysmac Studio is connected directly to the USB port on the
EtherCAT Coupler Unit.

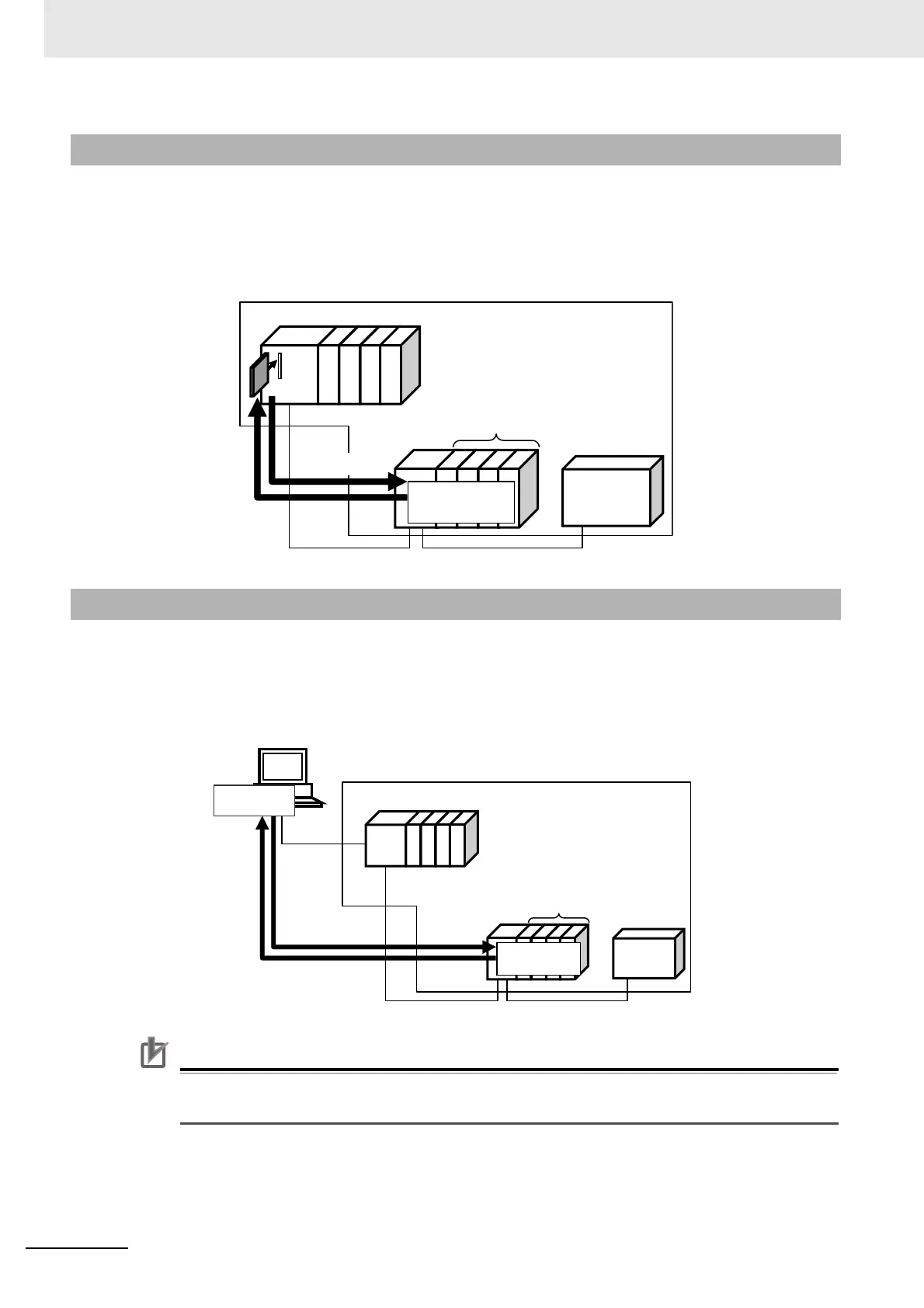

9-5-2 SD Memory Card Backup Function
9-5-3 Sysmac Studio Controller Backup Function
Slave Terminal
settings
Backing up data
CPU Unit
NX Units
SD
Memory Card
Scope of Backing Up, Restoring, and Comparing Data
estoring data
EtherCAT
Coupler Unit
Sysmac Studio
CPU Unit
NX Units
Backing up data
Restoring data
Scope of Backing Up, Restoring, and Comparing Data
Specified
memory device
Slave Terminal
settings
