9 Setting Up Slave Terminals
NX-series EtherCAT Coupler Unit User’s Manual (W519)
9-2 Setting Slave Terminal Parameters
9
9-2-3 Setting the Unit Configuration Information

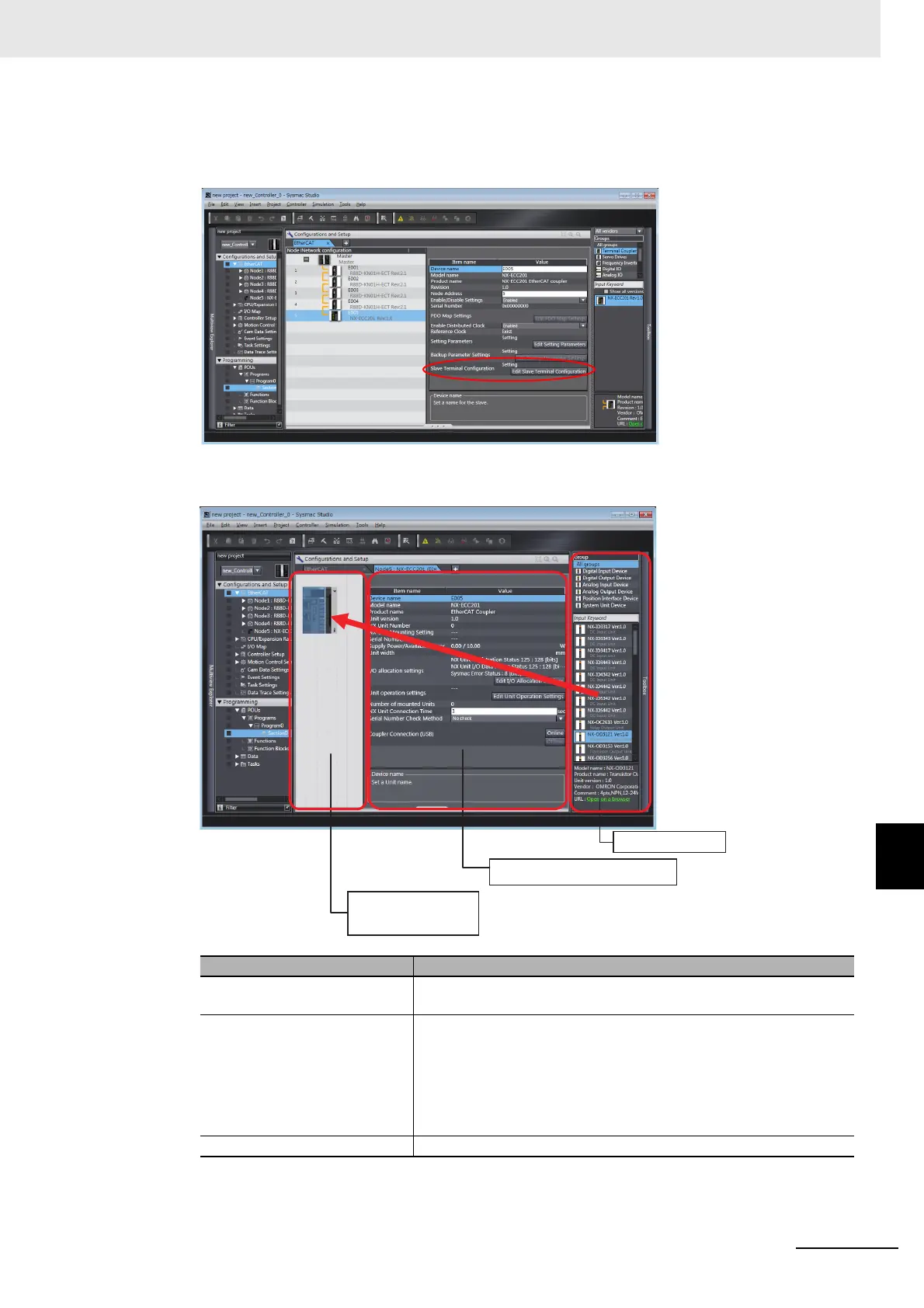

3 Click the Edit Slave Terminal Configuration Button next to Slave Terminal Configuration in
the slave parameters for the EtherCAT Coupler Unit.
The Edit Slave Terminal Configuration Tab Page is displayed.
4 Drag the NX Unit from the Toolbox to the Edit Configuration Pane and drop it on the Slave Ter-
minal.
5 Set the Unit configuration information in the Unit Settings Pane.
Item Description
Edit Configuration Pane You can edit the Unit configuration information for the Slave Terminal
here.
Unit Settings Pane This list displays the setting information for the currently selected
Unit.
• Edit I/O Allocation Settings Button: Click this button to change the
I/O allocation information.
• Edit Unit Operation Settings Button: Click this button to edit the
Unit operation settings.
Toolbox This area shows the NX Units by groups and individual Units.
Toolbox
Unit Settings Pane
Edit Slave Terminal
Configuration Pane
