Omron NX-ECC201 User Manual

6 - 31
6 Installation
NX-series EtherCAT Coupler Unit User’s Manual (W519)
6-2 Control Panel Installation
6
6-2-6 Grounding
Grounding has the following two purposes.
• Protective Grounding
Protective grounding is done to ensure safety. It is intended to prevent electrical shock by grounding
the electrical potential that is generated by factors such as leakage, induction, or failure.
• Functional Grounding
Functional grounding is done to protect device and system functions, including prevention of noise
from external sources, or prevention of noise from devices or equipment that could have harmful
effects on other devices or equipment.
Grounding requirements sometimes depend on the situation, and they may be found based on experi-
mentation. It is important to sufficiently check the particular circumstances before grounding.
 Principles of One-point Grounding
For devices to operate properly, the reference potential between the devices must be stabilized. Use
one-point grounding so that noise current does not flow to ground lines between the devices.
Whenever possible, use an independent ground (with the ground pole separated by a minimum of
10 m from any other ground pole).
• Ground to 100  or less, and if possible use a separate ground from those of other devices. (See
following figure (a).)
• If using an independent ground is not possible, then use a common ground as shown in figure (b).
Connect to the ground pole of the other device.
• Never connect to the same ground as a device that draws a large amount of power, such as a
motor or inverter. Ground the devices separately to avoid mutually adverse influences.
• To prevent electrical shock, do not connect to ground poles to which multiple devices are con-
nected.
• Use a ground pole as close to the EtherCAT Slave Terminal as possible and keep the ground line
as short as possible.
 Grounding Methods
6-2-6 Grounding

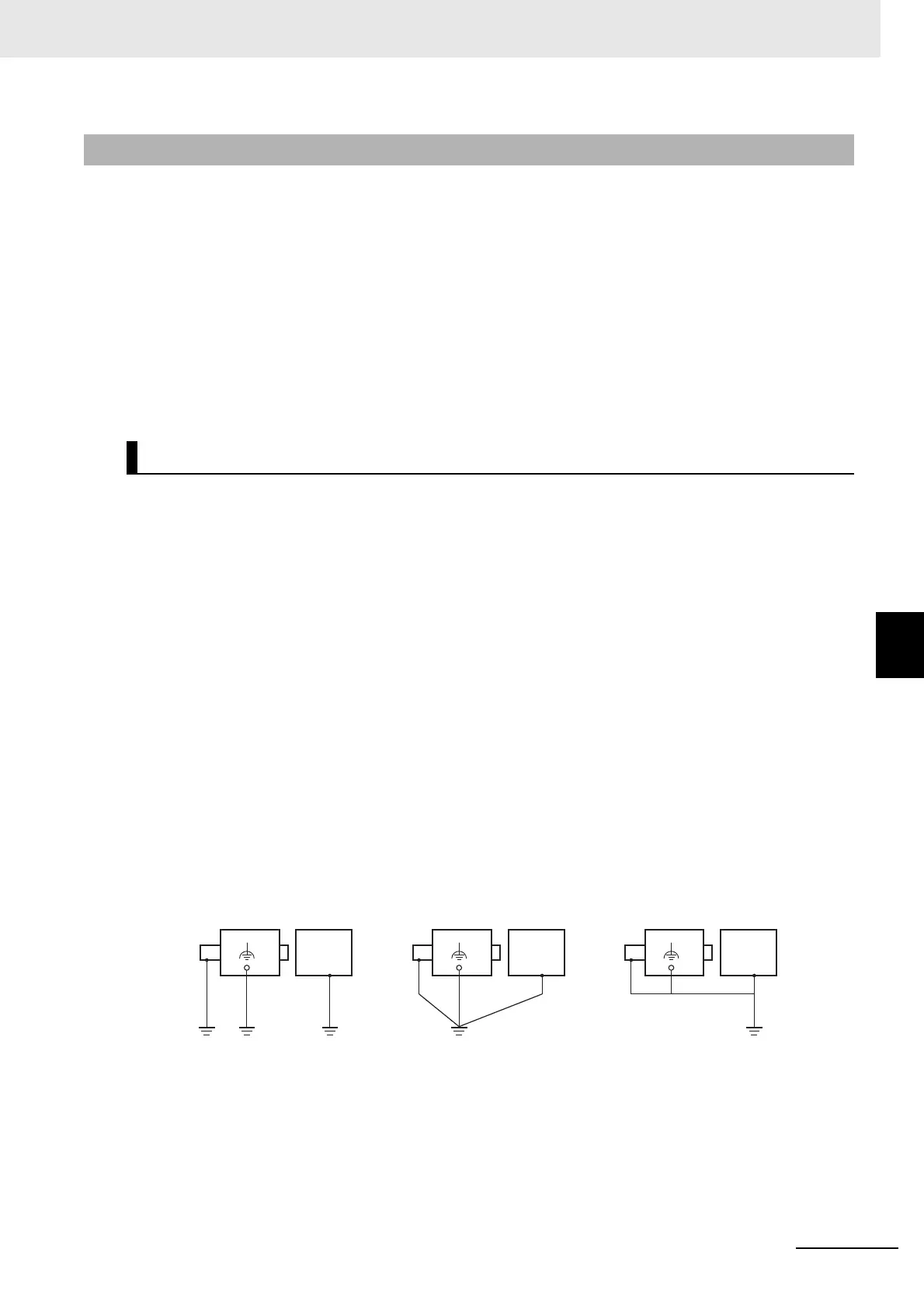

Wire Layout for the Power Supply System
(a) Independent Grounds: Best (b) Common Ground: Acceptable
(c) Common Ground: Incorrect
Ground to
100 Ω or less
Other
device
DIN Track DIN TrackDIN Track
EtherCAT
Slave
Terminal
EtherCAT
Slave
Terminal
EtherCAT
Slave
Terminal
Other
device
Other
device
NGOK OK
