3 Specifications
3-28
G5 Series AC Servo Drives With Built-in EtherCAT Communications, Linear Motor Type
This section lists the specifications of the control I/O connector, power cable connector, external
encoder connector, and safety I/O signal connector.
This is the connector to be connected to the drive's control I/O connector (CN1).
Use this connector when preparing a control cable by yourself.

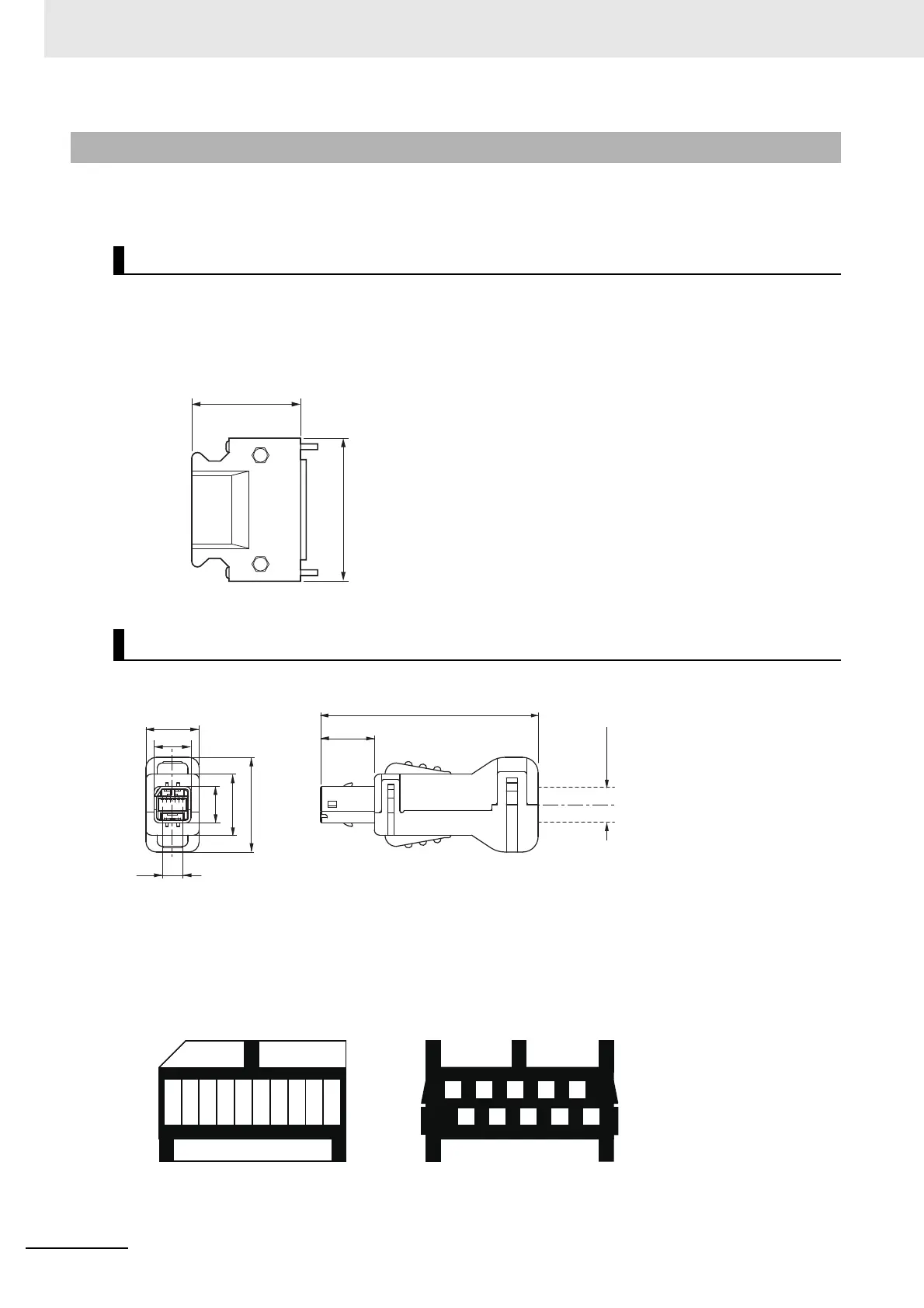

 Dimensions
Use this connector to connect to an external encoder.
Connector plug model
MUF-PK10K-X (J.S.T. Mfg. Co., Ltd.)
 Pin Arrangement
3-3-2 Connector Specifications
Control I/O Connector (R88A-CNW01C)
External Encoder Connector (R88A-CNK41L)
39
t = 14
37.2
Connector plug model
10126-3000PE (Sumitomo 3M)
Connector case model
10326-52A0-008 (Sumitomo 3M)
7.2
13.6
10.4
7.1
11.9
18.5
(42.5)
(10.5)
Ø6.8 MAX
10 9 8 7 6 5 4 3 2 1
10
9
8
7
6
5
4
3
2
1
View from Inserted Portion
View from Soldered Housing Surface
