10-5
10 Operation
G5 Series AC Servo Drives With Built-in EtherCAT Communications, Linear Motor Type
10-2 Preparing for Operation
10
10-2-3 Checking the Displays
The 7-segment display is on the front panel.
When the power is turned ON, it shows the node address that is set by the rotary switches. Then the
display changes according to the setting of the LED Display Selection (3700 hex).
An error code is displayed if an error occurs. A warning code is displayed if a warning occurs.
10-2-3 Checking the Displays

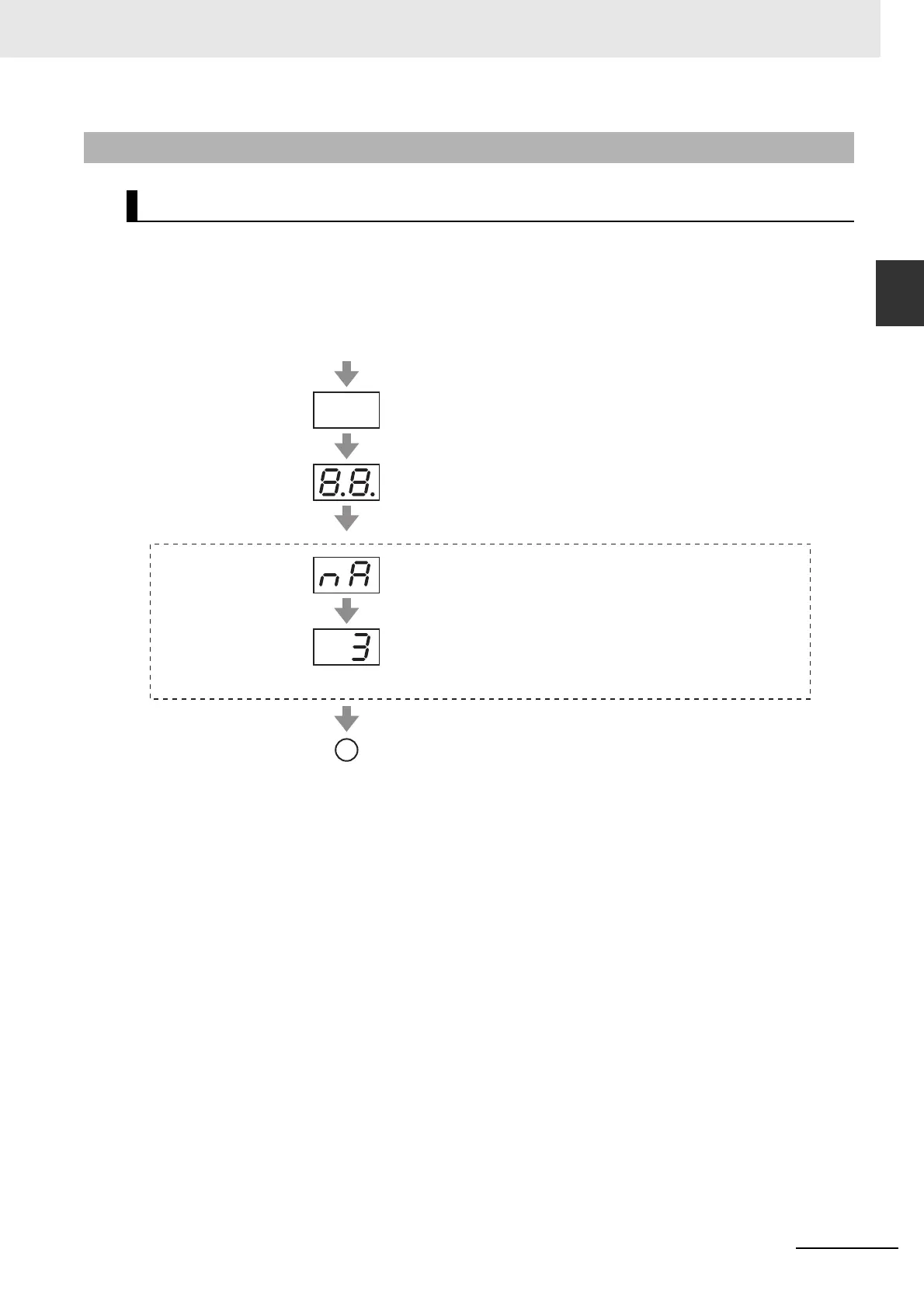

7-Segment Display
Control power ON
Fully OFF
Fully ON
“nA” (node address, approx. 0.6 s)
Rotary switch setting
(upper digit (×10) = 0, lower digit (×1) = 3)
(It lasts for the period set in the Power ON Address
Display Duration Setting (3701 hex).)
Node Address Display
A
To on the next page
