2 Models and External Dimensions
2-8
G5 Series AC Servo Drives With Built-in EtherCAT Communications, Linear Motor Type
2-4 External and Mounting Dimensions
This section describes the external dimensions and the mounting dimensions of Servo Drives and
peripheral devices.
The dimensional description starts with a Servo Drive of the smallest capacity, which is followed by the
next smallest, and so on.

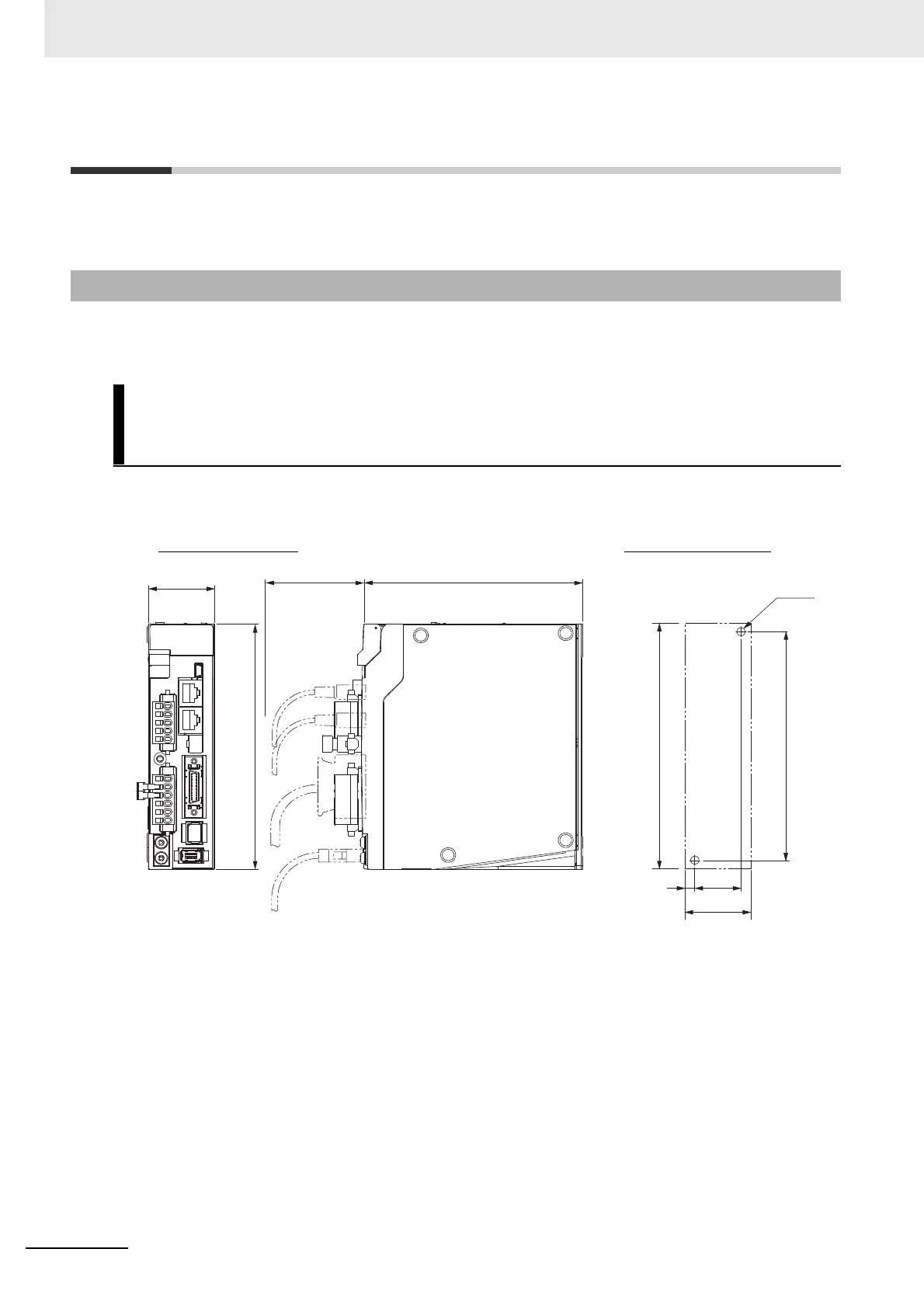

 Wall Mounting
External dimensions Mounting dimensions
2-4-1 Servo Drive Dimensions
Single-phase 100 VAC: R88D-KN01L-ECT-L (50 to 100 W)
Single-phase/3-phase 100 VAC: R88D-KN01H-ECT-L/-KN02H-ECT-L
(100 to 200 W)
132 70
40
150
40
28
6
150 140
2-M4
