G5 Series AC Servo Drives With Built-in EtherCAT Communications, Linear Motor Type
11-5 Damping Control
If the tip of the mechanical unit vibrates or the whole system sways, you can use the damping control
function to reduce vibration. This is effective on vibration generated by a machine of low rigidity. The
applicable frequencies are from 1 to 200 Hz.
You can set four frequencies, and use two of them at the same time.
The damping control function works under the following conditions.
Precautions for Correct UsePrecautions for Correct Use
• Stop operation before changing the objects or switching with DFSEL.
• The damping control may not function properly or the effect may not be apparent under the
following conditions.
11-5-1 Operating Conditions
Operating conditions
Operating mode Position control mode
Conditions that interfere with the damping control
Load condition • If forces other than commands, such as external forces, cause vibration.
• If the ratio of the resonance frequency to anti-resonance frequency is large.
• If the damping frequency is outside the range of 1.0 to 200.0 Hz.

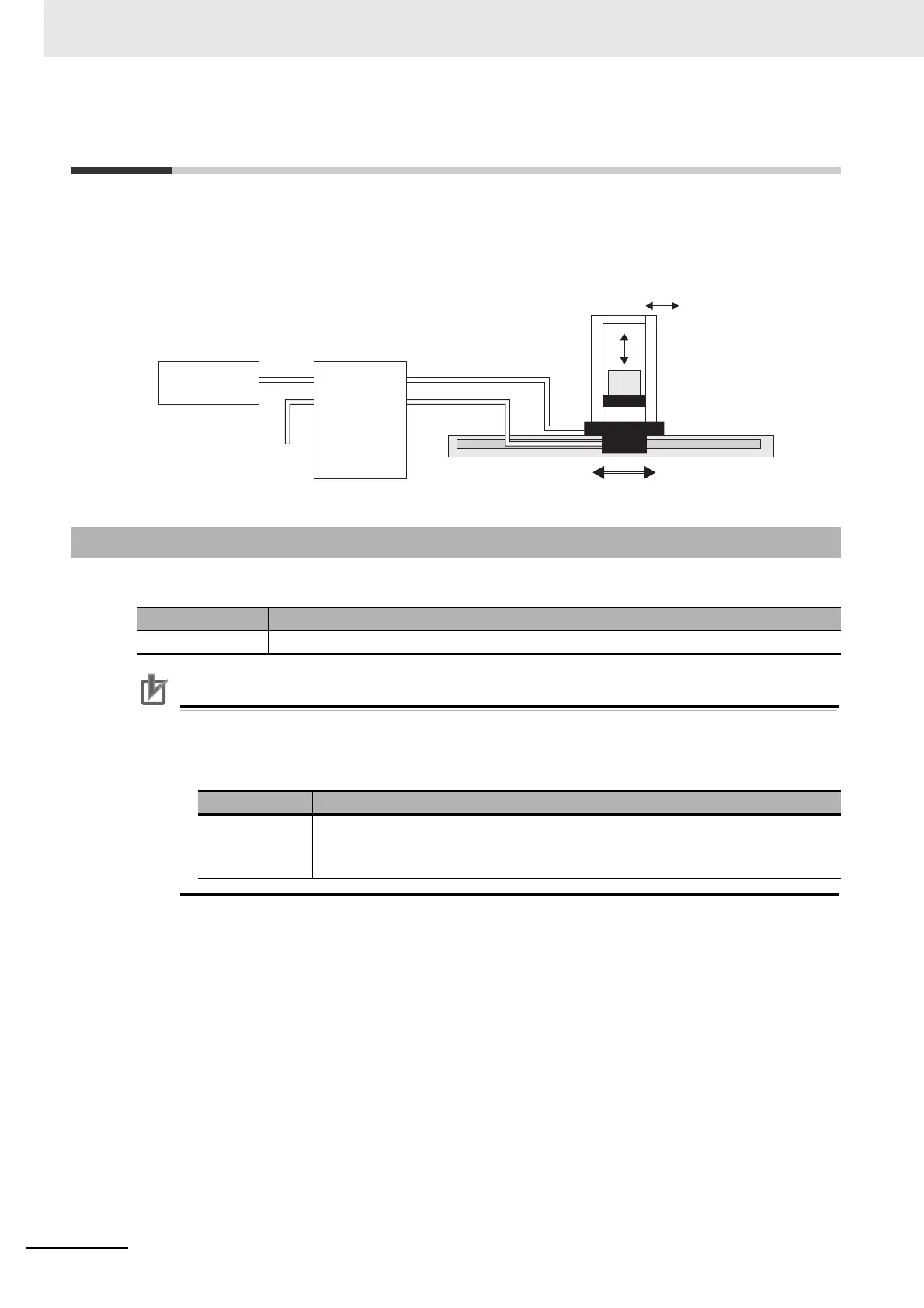

Position
Controller
Servo Drive
The end vibrates.
The damping
frequency changes
based on the
position.
Movement
