Omron R88D-KN series User Manual

7-39
7 Applied Functions
G5 Series AC Servo Drives With Built-in EtherCAT Communications, Linear Motor Type

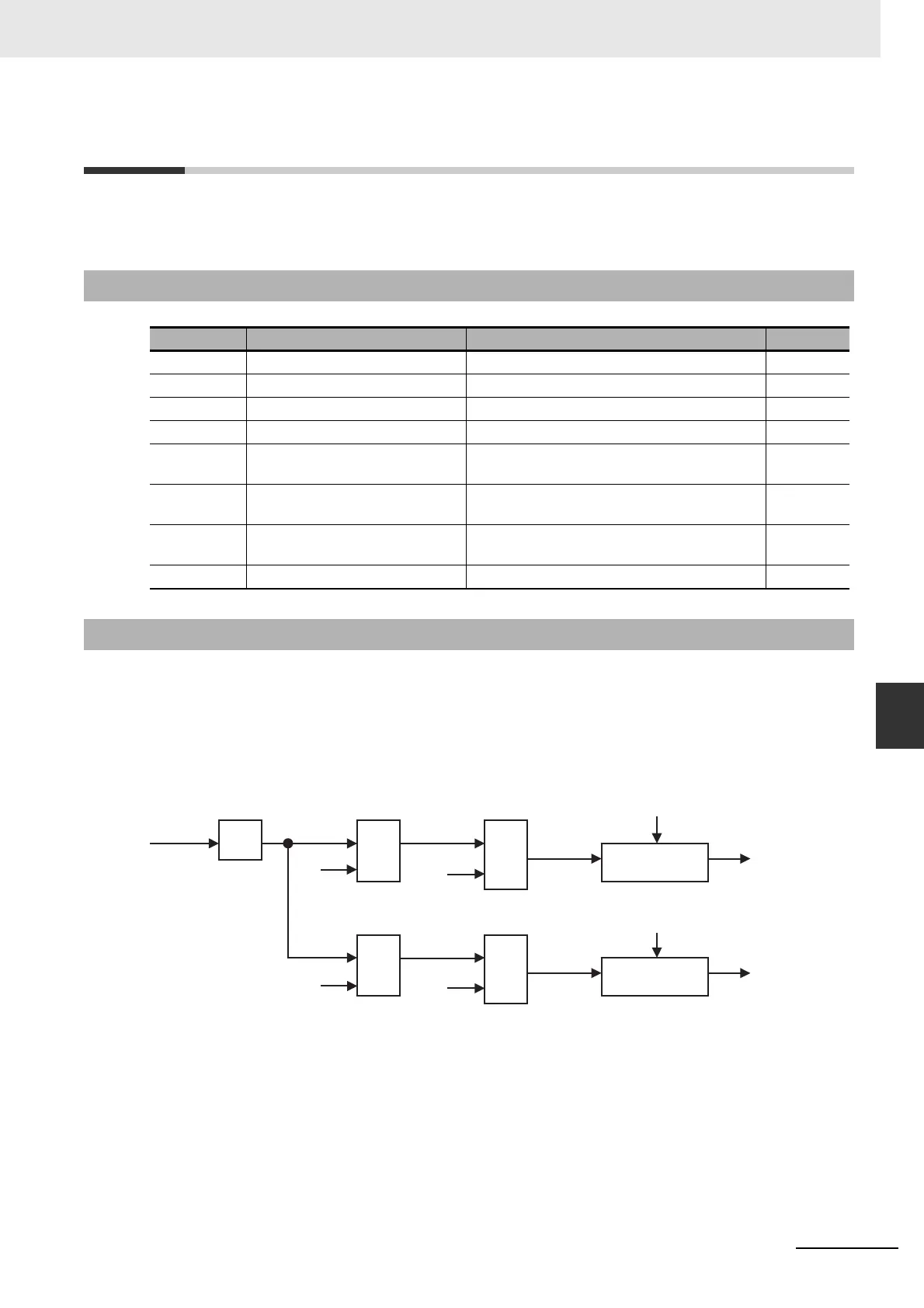

7-11 Touch Probe Function (Latch Function)
7
7-11-1 Objects Requiring Settings
7-11 Touch Probe Function (Latch Function)
The touch probe (latch) function latches the position actual value when an external latch input signal or
the external encoder's phase-Z signal turns ON. G5-series Servo Drives can latch two positions.
The latch trigger can be selected from general-purpose inputs 5 to 7 or the external encoder's phase-Z
signal. The functions of general-purpose signals 5 to 7 from the control I/O connector are set with the
Input Signal Selection 5 to 7 (3404 to 3406 hex). External latch input signals used by Latches 1 and 2
are set with the Touch Probe Trigger Selection (3758 hex).
Bits 2 and 10 of the Touch probe function (60B8 hex) are used to specify weather to latch with an
external signal or the phase-Z signal.
7-11-1 Objects Requiring Settings
Index Name Description Reference
60B8 hex Touch probe function Controls the latch function. page A-91
60B9 hex Touch probe status Gives the state of latches 1 and 2. page A-91
60BA hex Touch probe pos1 pos value Latch position of latch 1. page A-91
60BC hex Touch probe pos2 pos value Latch position of latch 2. page A-91
3404 hex Input Signal Selection 5 Set the function for general-purpose input 5
(IN5).
page 9-27
3405 hex Input Signal Selection 6 Set the function for general-purpose input 6
(IN6).
page 9-28
3406 hex Input Signal Selection 7 Set the function for general-purpose input 7
(IN7).
page 9-28
3758 hex Touch Probe Trigger Selection Select the trigger signals for latch 1 and 2. page 9-52
7-11-2 Trigger Signal Settings
IN5/6/7
(a)
EXT1/2/3
EXT#1
3758 hex
(TP1_SEL)
3404 to 3406 hex
(c)
(b)
Latch trigger
LT1
3758 hex
(TP2_SEL)
60B8 hex (Bit 10)
60B8 hex (Bit 2)
(b)
(c)
EXT#2
Latch trigger
LT2
Latch 1
Latch 2
Position actual value
Position actual value
60BA hex
Touch probe pos1
pos value
60BC hex
Touch probe pos2
pos value
Phase-Z
signal
Phase-Z
signal
Phase-Z
signal
Phase-Z
signal
