Run Command Input Methods
îš‹ Selecting the Run Command Source
Set parameter b1-02 to select the source for the run command.
îš„Related Parameters
îš„Performing Operations Using the Digital Operator
When b1-02 is set to 0, you can perform Inverter operations using the Digital Operator keys (RUN, STOP, and
FWD/REV). For details on the Digital Operator, refer to page 3-1, Digital Operator and Modes.
îš„Performing Operations Using Control Circuit Terminals
When b1-02 is set to 1, Inverter operations can be performed using the control circuit terminals.
Performing Operations Using a 2-wire Control
The factory setting is set to a 2-wire control. When the control circuit terminal S1 is set to ON, forward opera-
tion will be performed, and when S1 is turned OFF, the Inverter will stop. In the same way, when the control
circuit terminal S2 is set to ON, reverse operation will be performed, and when S2 is turned OFF, the Inverter
will stop.

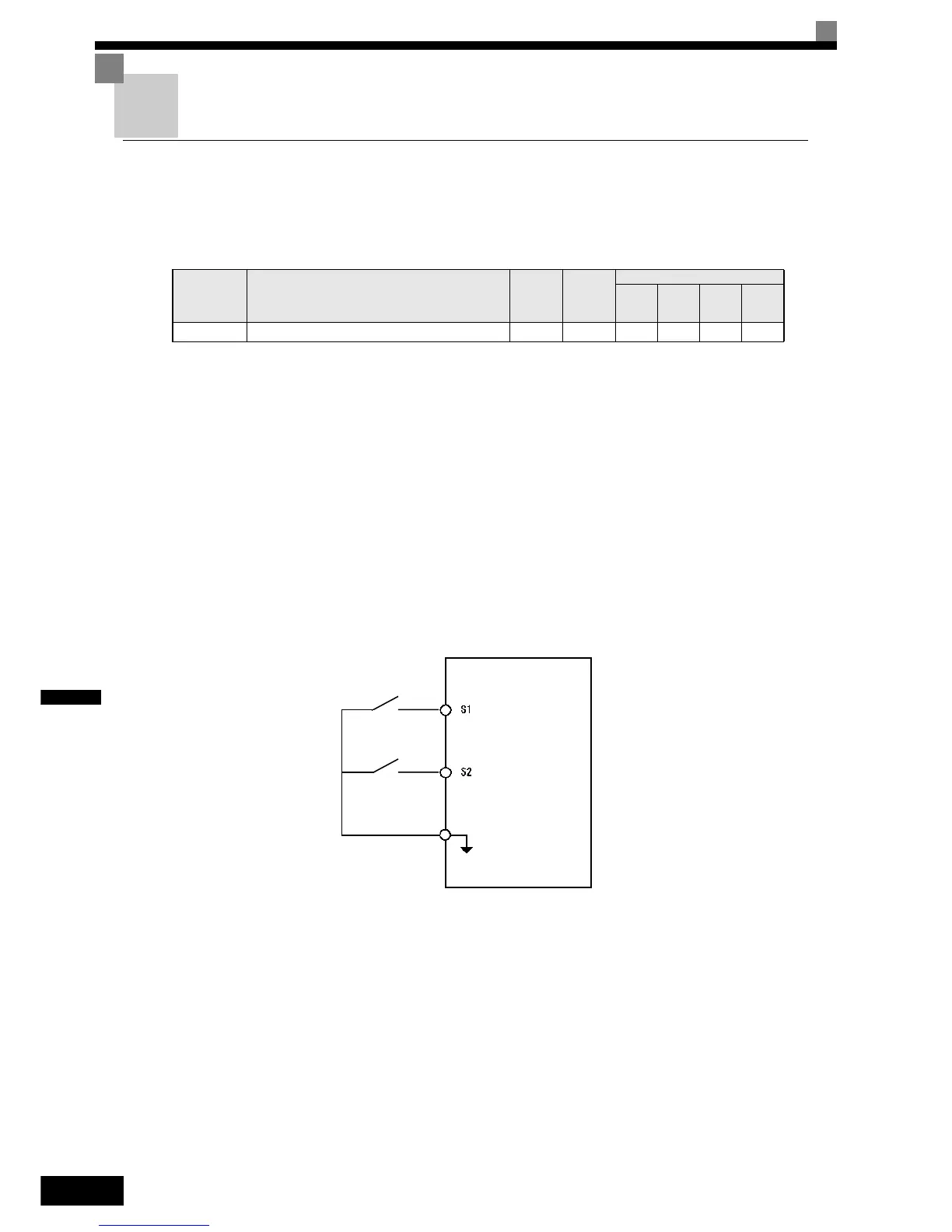

Fig 6.12 2-Wire Control Wiring Example with Positive Logic
Parameter
No.
Name
Factory
Setting
Change
during
Opera-
tion
Control Methods
V/f
V/f with
PG
Open
Loop
Vector
Closed
Loop
Vector
b1-02 RUN command source selection 1 No Q Q Q Q
Inverter
Forward/Stop
Reverse/Stop
SN Digital input neutral
