PIAGGIO Carnaby 125 - Removing the Driven Pulley Shaft Bearing; Refitting the Driven Pulley Shaft Bearing; Baffle Roller

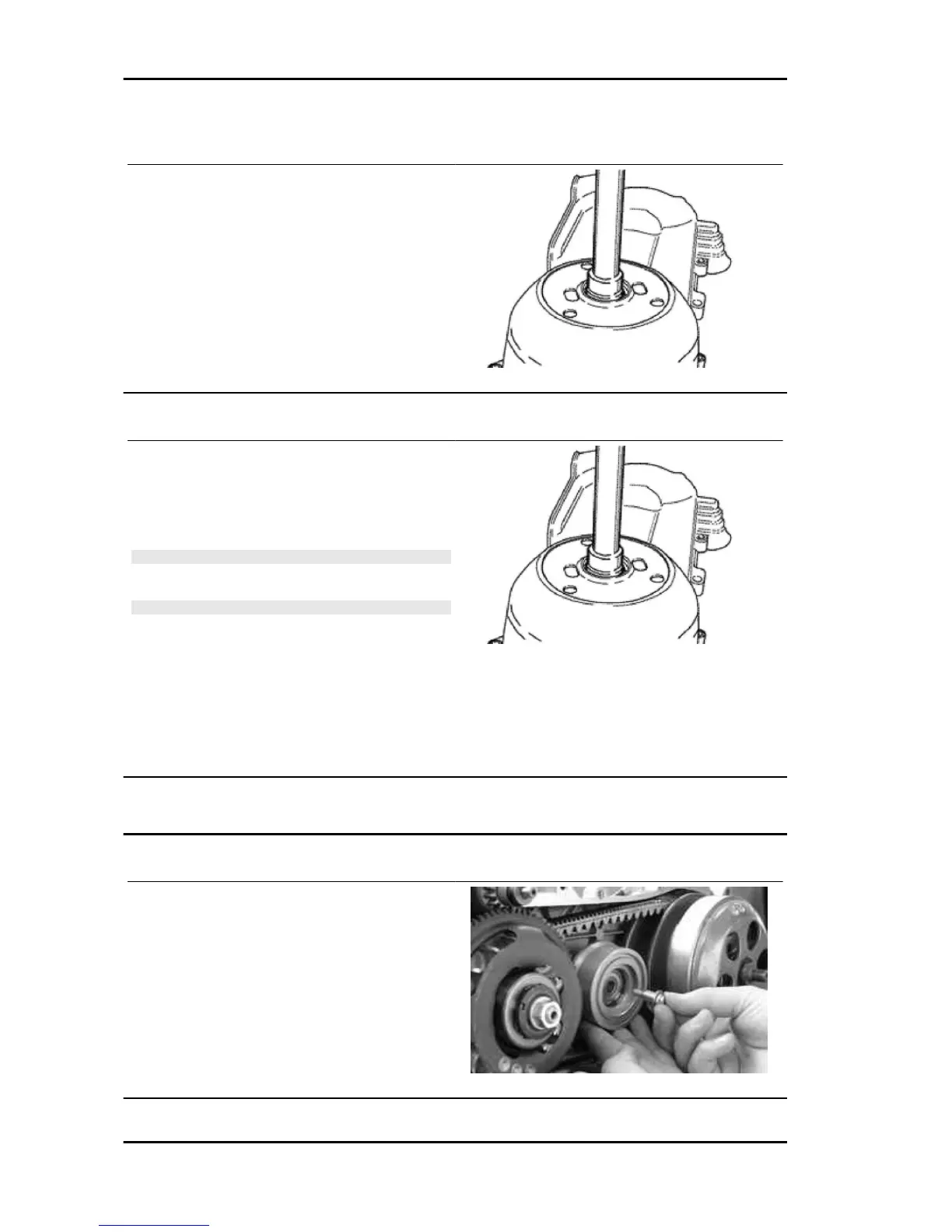

Removing the driven pulley shaft bearing
- Remove the clip from the inside of the cover.
- Remove the bearing from the crankcase by
means of:
Specific tooling
020376Y Adaptor handle
020375Y Adaptor 28 x 30 mm
020412Y 15 mm guide
Refitting the driven pulley shaft bearing
- Slightly heat the crankcase from the inside so as
not to damage the painted surface.
- Insert the bearing in its seat.
- Refit the seeger ring.
CAUTION
USE AN APPROPRIATE REST SURFACE TO AVOID DAM-
AGING THE COVER PAINT.
N.B.
ALWAYS REPLACE THE BEARING WITH A NEW ONE
UPON REFITTING.
Specific tooling
020376Y Adaptor handle
020357Y 32 x 35 mm adaptor
020412Y 15 mm guide
Baffle roller
Removal
Belt support roller (200 cm³ models only)
- Check that the roller does not show signs of wear
and that it turns freely.
- Remove the special fixing screw and the roller
together with the bearing.
Engine Carnaby 125 - 200
ENG - 102
