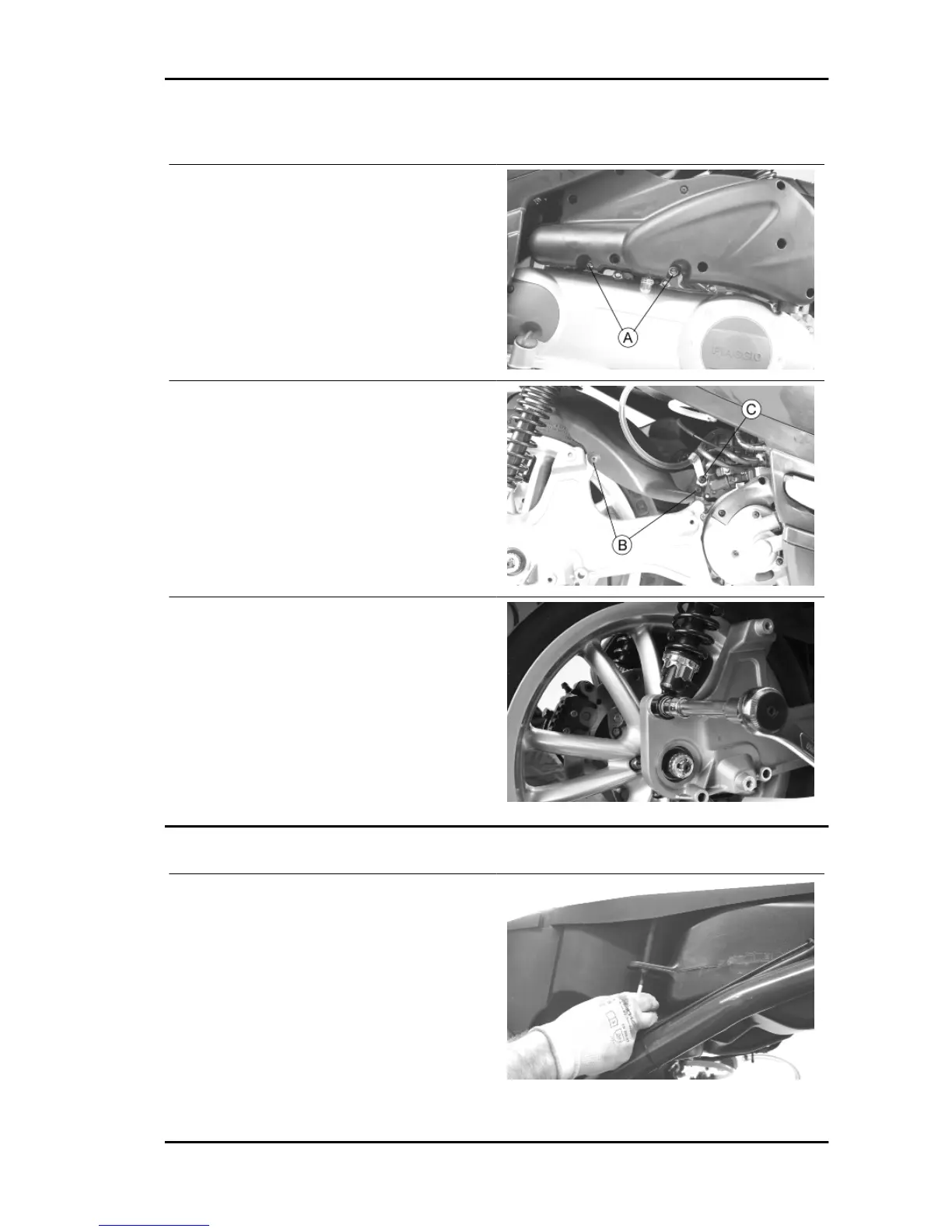

Rear mudguard
- Undo the two screws « A» under the air filter.
- Undo the two screws «B» and the screw «C»
supporting the fuel supply bracket.
- Unscrew the shock absorber lower clamp and
rotate the shock absorber towards the scooter rear
part.
- Remove the mudguard.
Helmet bay
- Remove the side fairings.
- Remove the luggage rack.
- Remove the upper fairing of the rear light assem-
bly.
- Operating on both sides, undo the screws indi-
cated connecting the helmet compartment to the
tank.
Carnaby 125 - 200 Chassis
CHAS - 251
