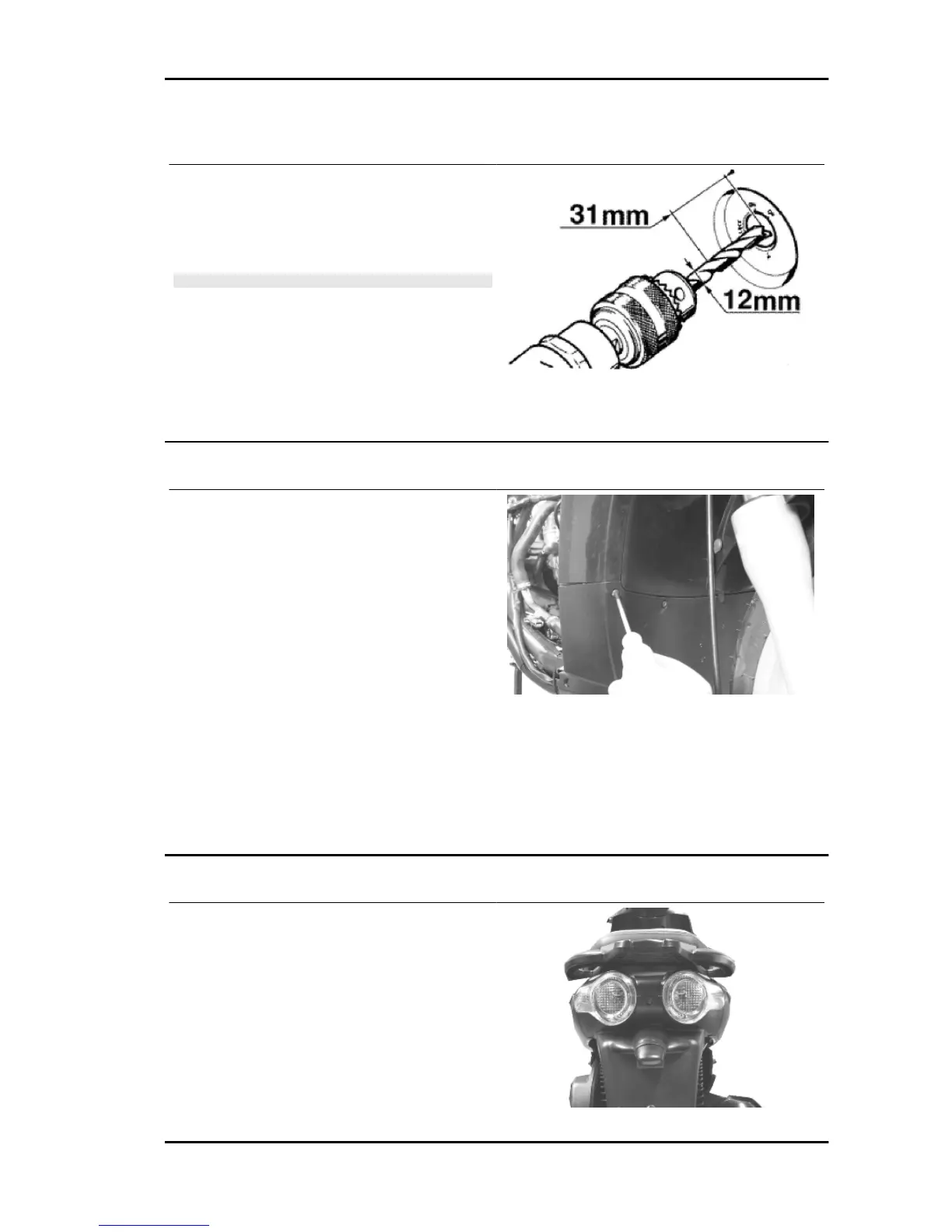

Removing the ignition key-switch when on *lock*
In position "Lock", it is not possible to access the
cylinder retaining spring. The spring must then be
removed as shown in the figure, allowing the lock
spring to be pressed out.
N.B.
TO REFIT THIS ITEM, THE SCOOTER STEERING LOCK
MUST BE RELEASED WITH THE LOCK BODY (INTERNAL
AND EXTERNAL PART) IN POSITION "OFF". PROCEED AS
DESCRIBED IN THE PREVIOUS PARAGRAPH.
See also
Removing the ignition key-switch when on *off*
Front wheel housing
- The front wheel housing is divided in two parts.
Two different procedures must be carried out to
remove it.
- Lower part:
- Remove the footrest.
- Remove the lower spoilers.
- Remove the four screws connecting the lower
part to the legshield.
- Upper part:
- Remove the lower part.
- Remove the legshield.
- Remove the fork
- Remove the two screws fixing the upper part to the frame.
Taillight assy.
The rear light unit has two parts that can be re-
moved separately. The operations described refer
to one part but apply to both.
Carnaby 125 - 200 Chassis
CHAS - 247
