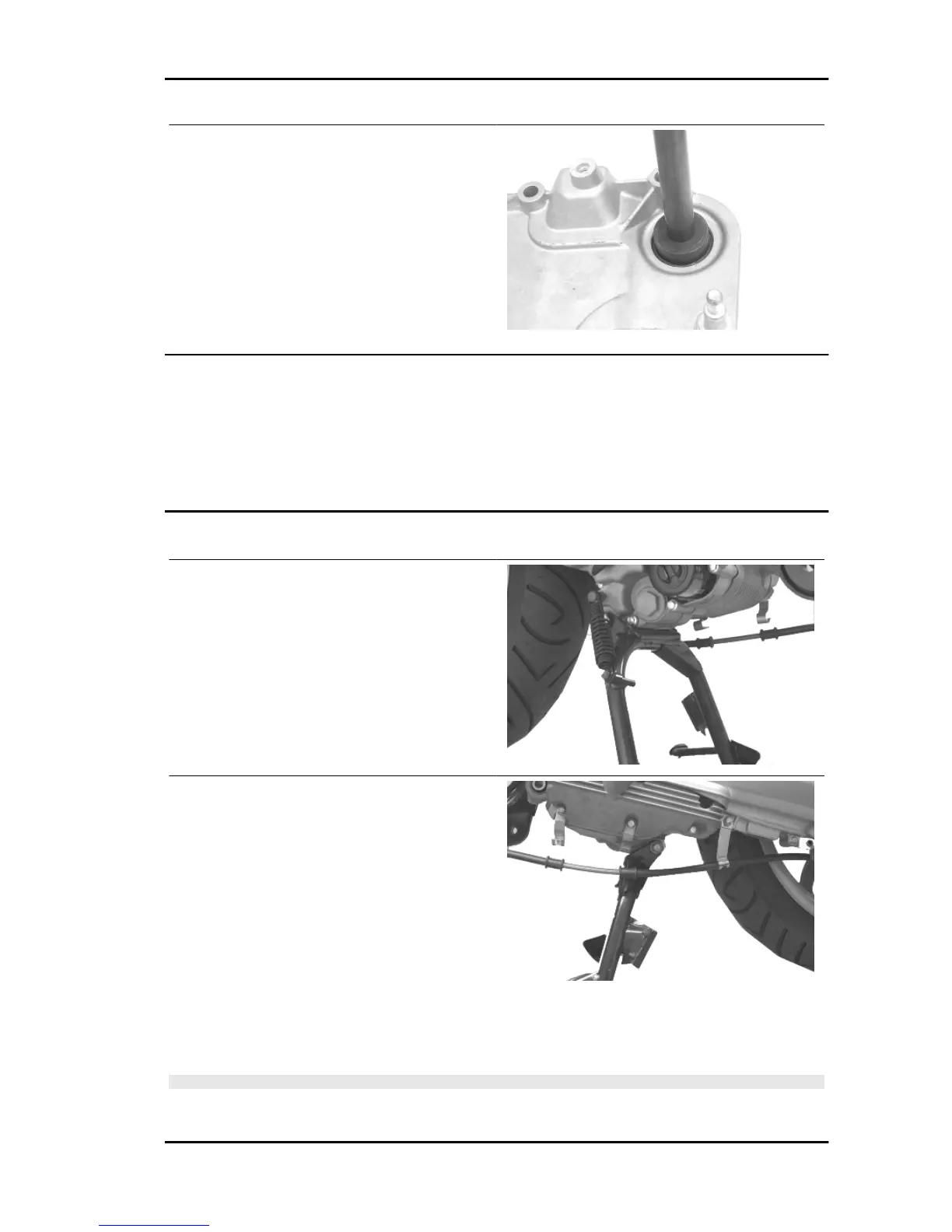

- Heat the bearing seat using the heat gun
- Using the special punch, install a new bearing in
the seat as shown in the photograph
Specific tooling
020376Y Adaptor handle
020151Y Air heater
Refitting
To refit, carry out the removal operations in reverse order, observing the prescribed tightening torques.
Locking torques (N*m)
Rear wheel axle nut 104 ÷ 126 Muffler support arm to engine screws (*) 20 ÷ 25 Lower shock
absorber clamp 33 ÷ 41
Centre-stand
- Remove the muffler
- Remove the two stand return springs.
- Detach the rear brake pipe from the clamps, un-
screw the fixing nut and collect the washer.
- Slide off the pin and remove the stand.
- To refit, carry out these operations in reverse order.
- Tighten the nut to the prescribed tightening torque.
CAUTION
LUBRICATE THE FOLLOWING PARTS WITH GREASE: SPRING COUPLING PINS, BUSHINGS ON
STAND FIXING BRACKETS.
