PIAGGIO Carnaby 125 - Spark Advance Variation; Revolution Limiter

- The brand new control unit prevents that the engine rotation exceeds 2000 rpm.
- The programmed control unit allows the engine to rotate within the prescribed limits.
Specific tooling
020330Y Stroboscopic light to check timing

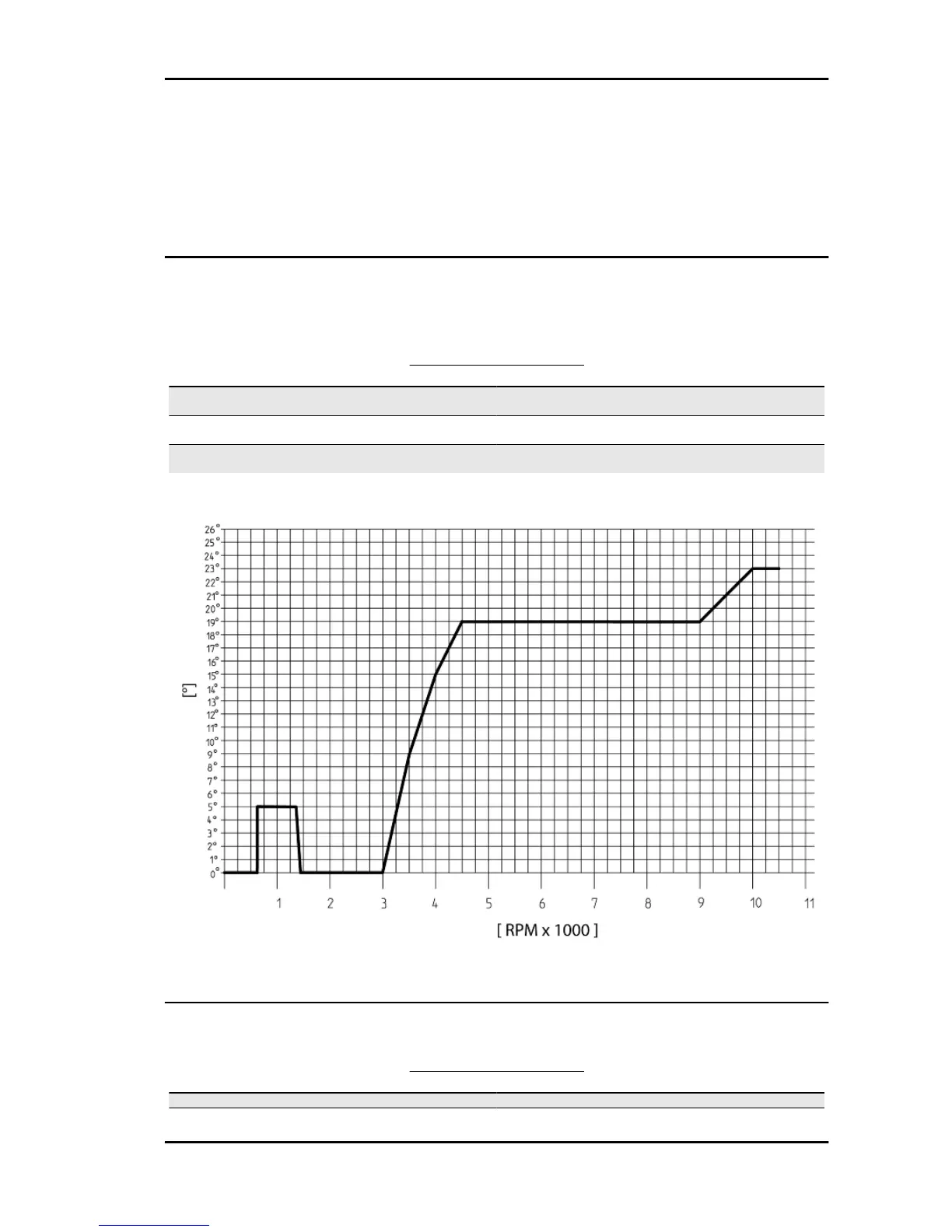

Spark advance variation
125 cm³ version
REVOLUTION LIMITER
Specification Desc./Quantity
Operation threshold First threshold : 10700 ±50
Second threshold : 11000 ±50
Reactivation threshold First threshold : 10600±50
Second threshold : 10900±50
Spark elimination First threshold : 1 spark on 7
Second threshold : 2 sparks on 3
200 cm³ version
REVOLUTION LIMITER
Specification
Desc./Quantity
Version 200 : Operation threshold First threshold : 9900 ±50 Second threshold : 10100 ±50
Version 200 : Reactivation threshold First threshold : 9800 ±50 Second threshold: 10000 ±50
Carnaby 125 - 200 Maintenance
