Removing the carburettor
carburettor removal
ble>

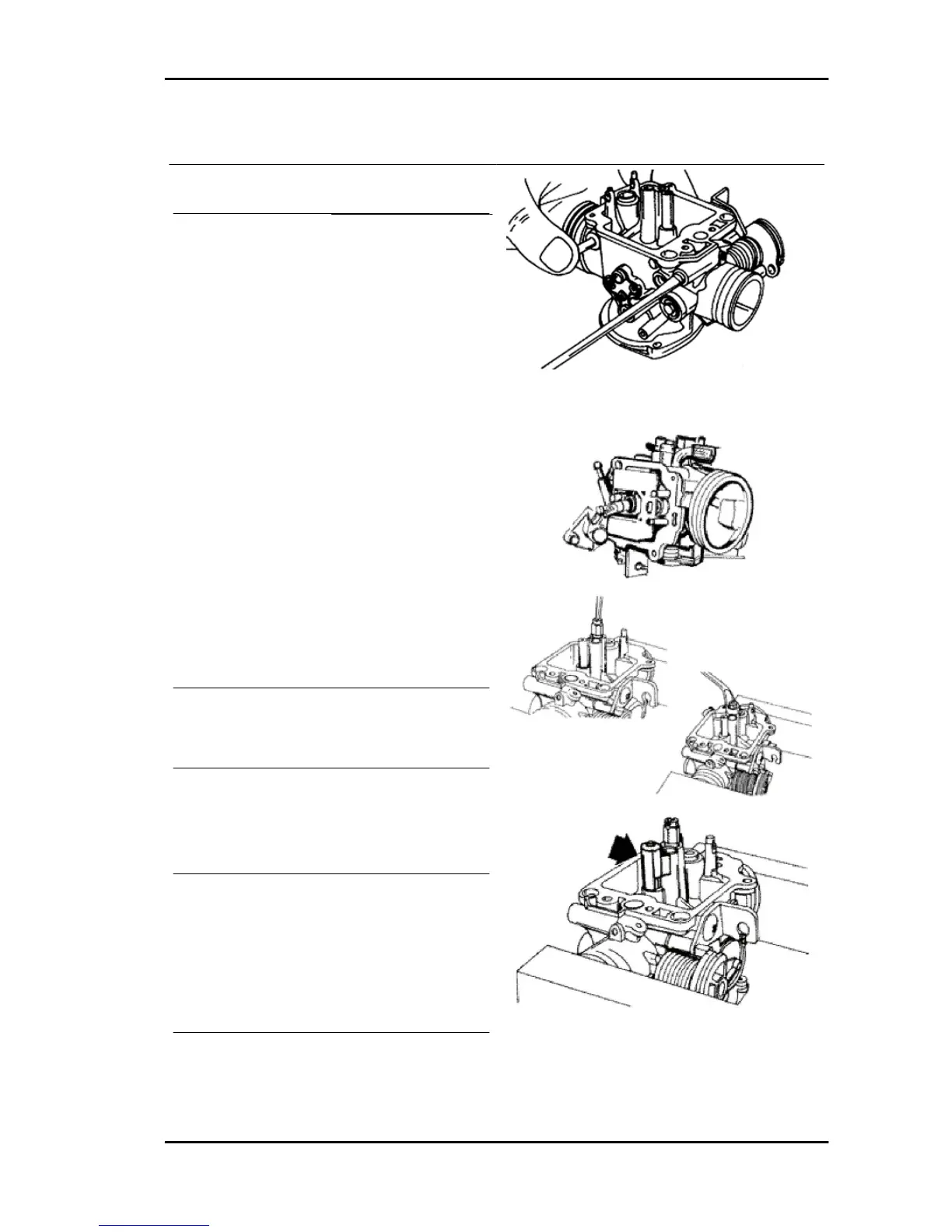

- To detach the carburettor
from the engine, move the air
filter and remove the throttle
control transmission, the au-
tomatic starter connection,
the clamps anchoring the car-
burettor to the filter housing
and to the inlet manifold, the
air delivery pipe to the dia-
phragm, and the intake fitting.
- Take out the carburettor and
rotate it so as to remove the
screw with the water joint and
the pipes.
- Remove the protection, the
bracket and the starter oper-
ating on the 2 screws shown
in the figure.
- Remove the 2 screws and
the starter support with the
gasket.
- Remove the fixing screw
shown in the figure, the rock-
ing lever and the accelerating
pump control spring.
- Remove the 2 fixing screws
indicated in the figure, the
vacuum chamber cover and
the spring.
- Remove the vacuum valve
together with the diaphragm.
- Remove the 4 screws
shown in the figure and the
chamber with the gasket.
Carnaby 125 - 200 Engine
ENG - 173
