PIAGGIO Carnaby 125 User Manual

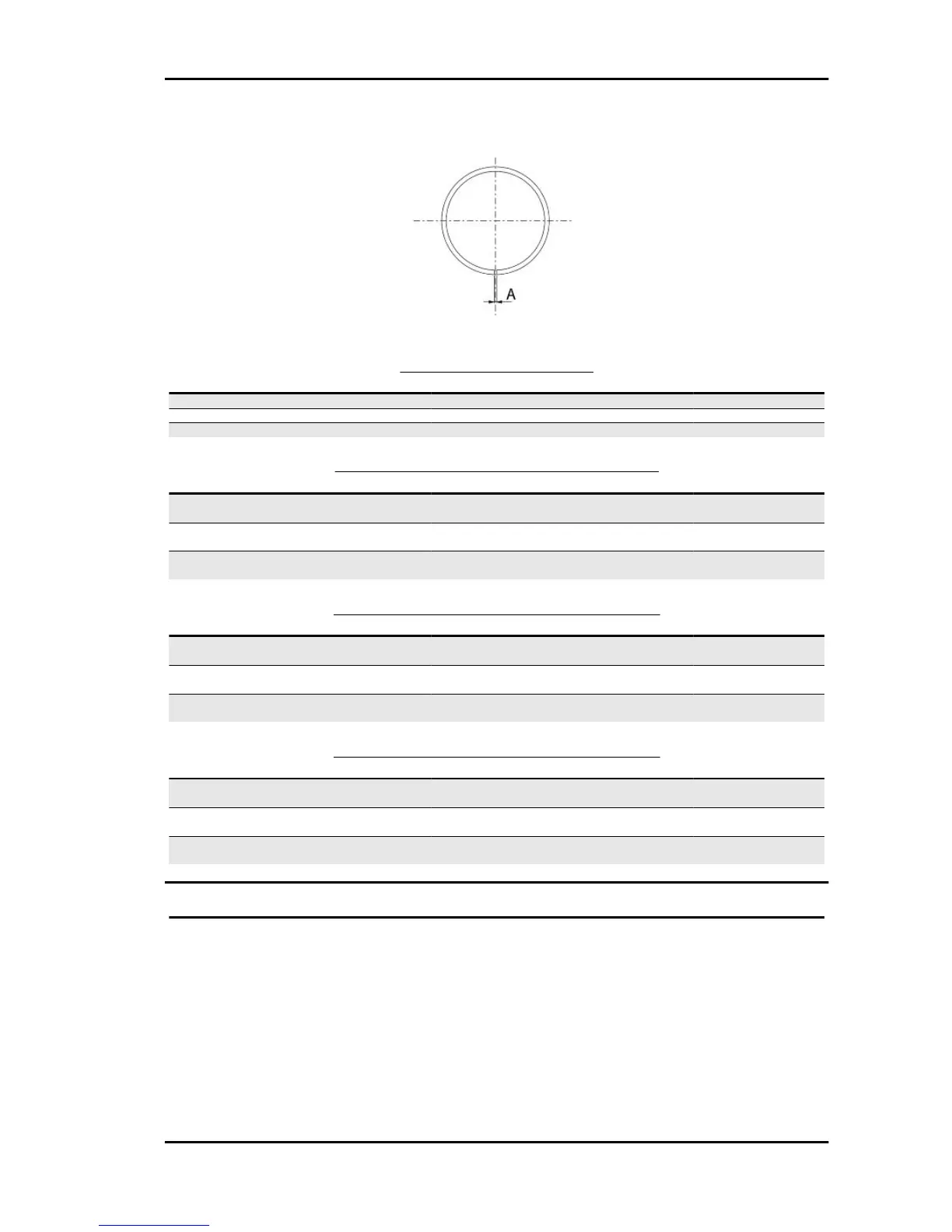

ENGINE SEALING RINGS
Name Description Dimensions Initials Quantity
Compression ring 57 x 1 A 0.15 ÷ 0.30
Oil scraper ring 57 x 1 A 0.10 ÷ 0.30
Oil scraper ring 57 x 2.5 A 0.15 ÷ 0.35
ENGINE SEALING RINGS (1ST OVERSIZE)
Name Description Dimensions Initials Quantity
Compression ring 1st
oversize
57.2 x 1 A 0.15 ÷ 0.30
Oil scraper ring 1st
Oversize
57.2 x 1 A 0.10 ÷ 0.30
Oil scraper ring 1st
Oversize
57.2 x 2.5 A 0.15 ÷ 0.35
ENGINE SEALING RINGS (2ND OVERSIZE)
Name
Description Dimensions Initials Quantity
Compression ring 2nd
Oversize
57.4 x 1 A 0.15 ÷ 0.30
Oil scraper ring 2nd
Oversize
57.4 x 1 A 0.10 ÷ 0.30
Oil scraper ring 2nd
Oversize
57.4 x 2.5 A 0.15 ÷ 0.35
ENGINE SEALING RINGS (3RD OVERSIZE)
Name
Description Dimensions Initials Quantity
Compression ring 3rd
Oversize
57.6 x 1 A 0.15 ÷ 0.30
Oil scraper ring 3rd
Oversize
57.6 x 1 A
Oil scraper ring 3rd
Oversize
57.6 x 2.5 A 0.15 ÷ 0.35
200 cm³ version
Carnaby 125 - 200 Characteristics
CHAR - 19
