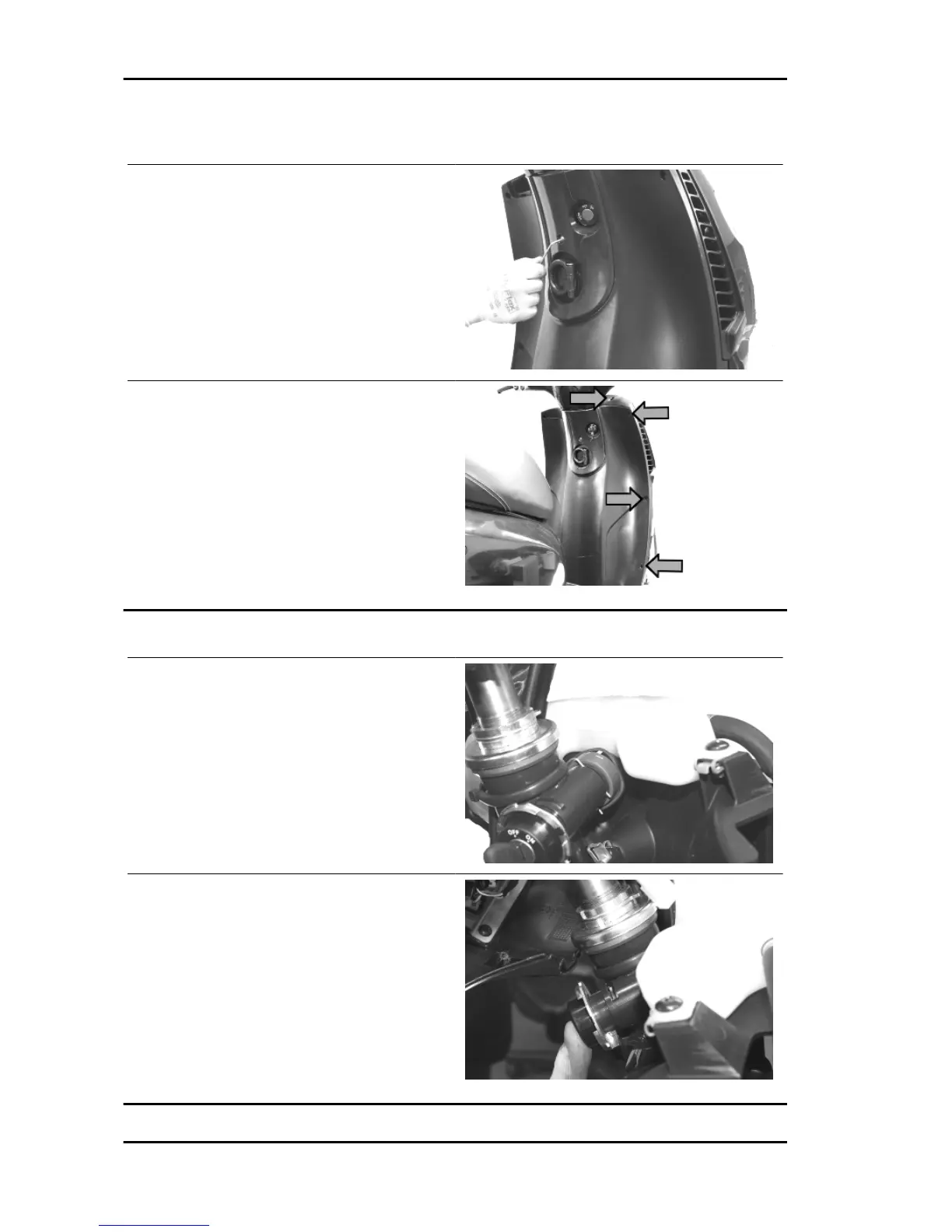

Knee-guard
- Remove the front handlebar cover.
- Remove the rear handlebar cover.
- Undo the screws of the cover of the expansion
tank compartment and remove the cap.
- Undo the screw of the bag hook.
- Operating from both sides, undo the eight fixing
screws.
- Slide off the shield back plate from the bottom.
Removing the ignition key-switch when on *off*
- Remove the shield back plate.
- Detach the electrical wiring.
- Remove the ignition key switch, by removing the
retaining spring as shown in the figure.
- Lightly push the master-cylinder and extract the
lock from the notch shown in the figure.
- Hence extract the master-cylinder complete with
the key-switch.
- To refit, proceed in the reverse order.
Chassis Carnaby 125 - 200
CHAS - 246
