Refitting the driven pulley
Driven pulley fitting
- Insert the new oil guards and O-rings on the mov-
able half-pulley.

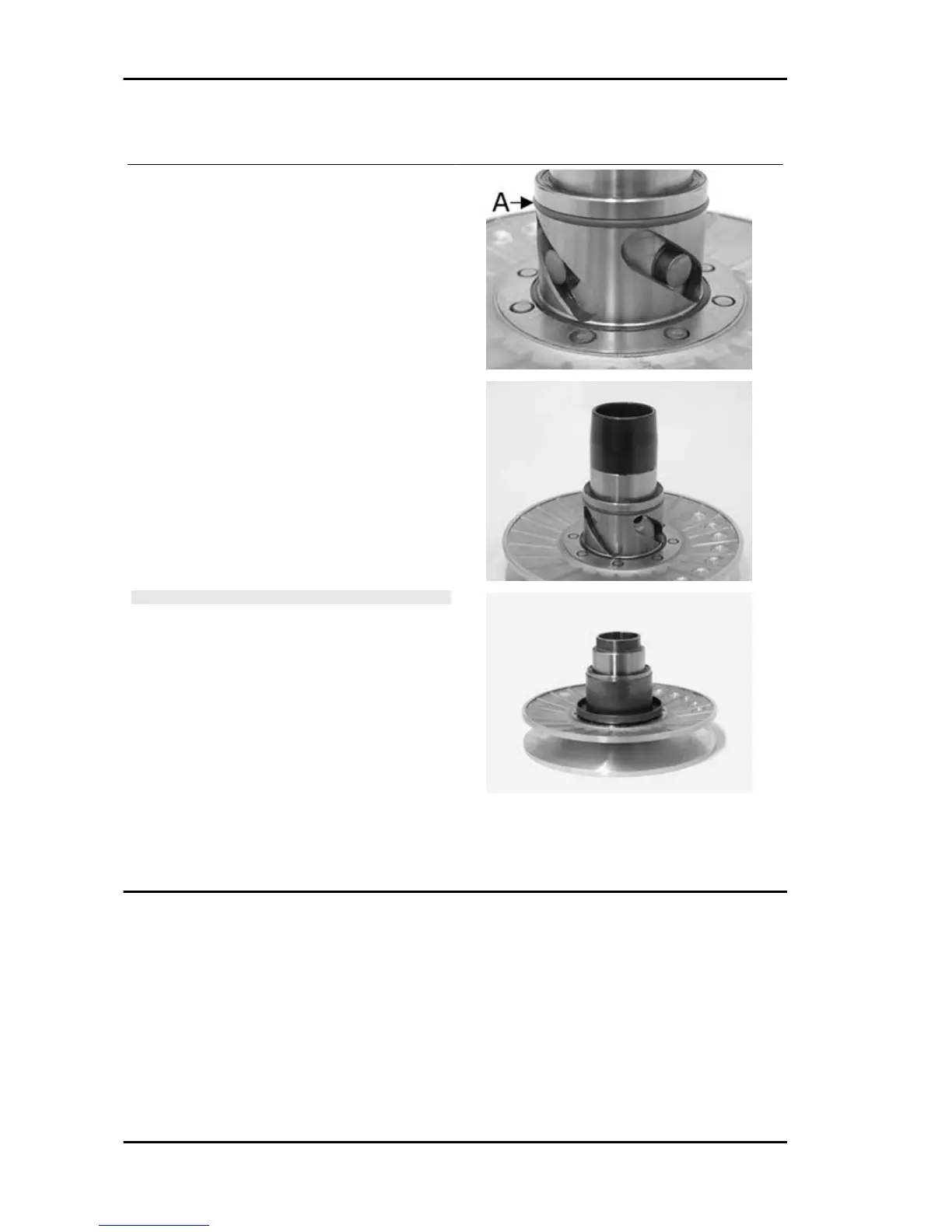

- Lightly grease the O-rings (A) shown in the figure.
- Fit the half-pulley over the bushing using the ap-
propriate tool
Check that the pins are not worn and proceed with
the refitting in the relative hollows.-
- Refit the torque server closure collar.
- Using a curved-spout grease gun, lubricate the
driven pulley unit with approximately 6 gr. of
grease. Apply the grease through one of the holes
in the bushing until it comes out through the hole
on the opposite side. This operation is necessary
to avoid the presence of grease beyond the O-
rings.
N.B.
THE TORQUE SERVER CAN BE GREASED WHETHER
WITH BEARINGS FITTED OR WHEN THEY ARE BEING RE-
PLACED; UNDERTAKING THE OPERATION WHEN THE
BEARINGS ARE BEING SERVICED MIGHT BE EASIER.
Specific tooling
020263Y Sheath for driven pulley fitting
Recommended products
AGIP GREASE SM 2 Grease for the tone wheel
revolving ring
Soap-based lithium grease containing NLGI 2 Mo-
lybdenum disulphide; ISO-L-XBCHB2, DIN
KF2K-20
Engine Carnaby 125 - 200
ENG - 110
