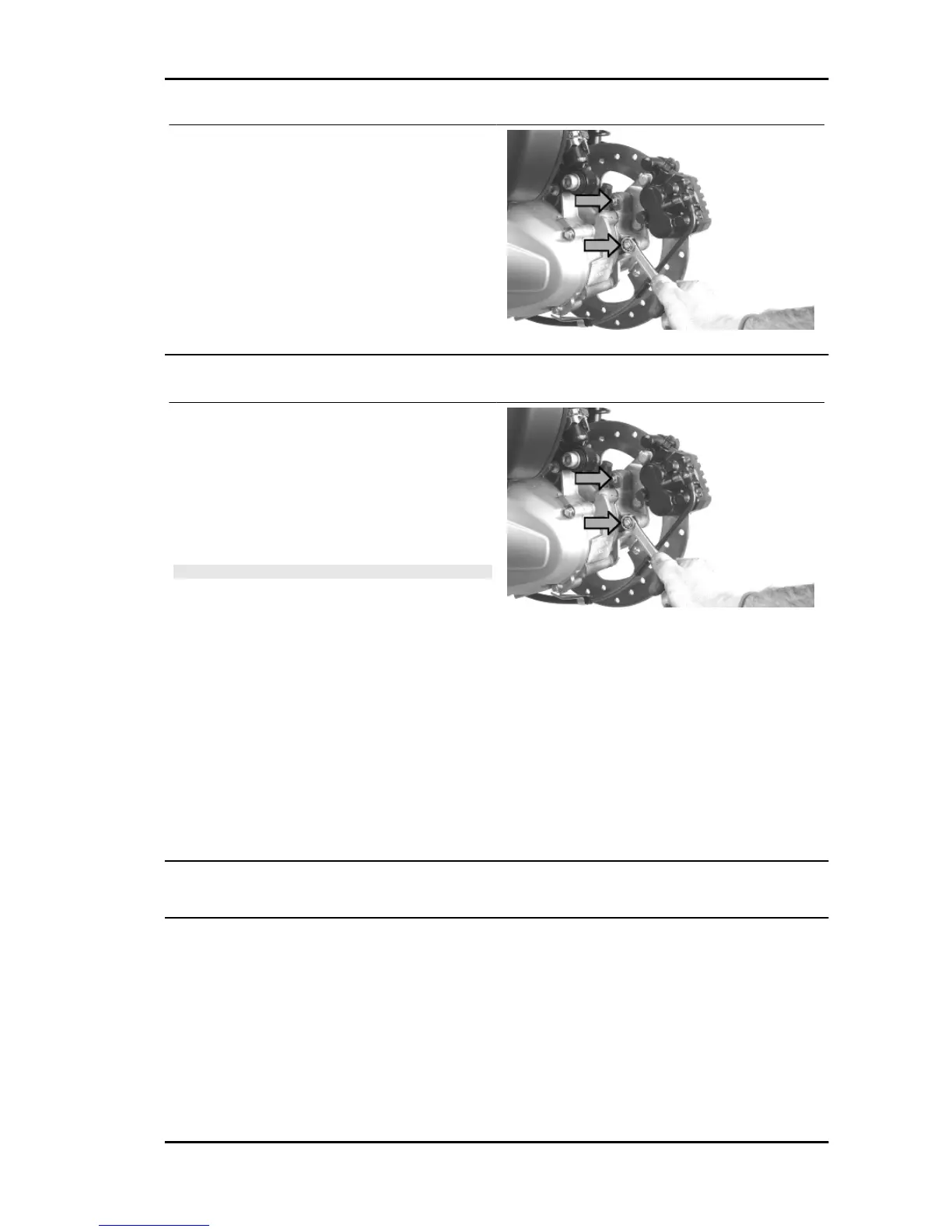

- Undo the screws fixing the calliper support to the
engine.
Refitting
- Fix the brake calliper support plate to the crank-
case and the brake calliper to the bracket, tight-
ening the screws to the prescribed torque.
- Apply the recommended product to the fixing
screws of the brake calliper to the bracket.
- Purge the system.
N.B.
WHILE REFITTING, REPLACE THE COPPER GASKETS ON
THEIR FITTINGS.
Recommended products
Loctite 243 Medium strength threadlock
Loctite 243 medium-strength threadlock
Locking torques (N*m)
Oil bleed screw 12 - 16 Screw tightening calliper
to the support 23 ÷ 25 Screw fixing rear brake
calliper support to engine 20 ÷ 25 Brake fluid
pipe-calliper fitting 16 ÷ 20
See also
Rear - combined
Front brake calliper
Carnaby 125 - 200 Braking system
BRAK SYS - 219
