Refitting
- Carry out removal operations in reverse order.
- Tighten to the prescribed torques.

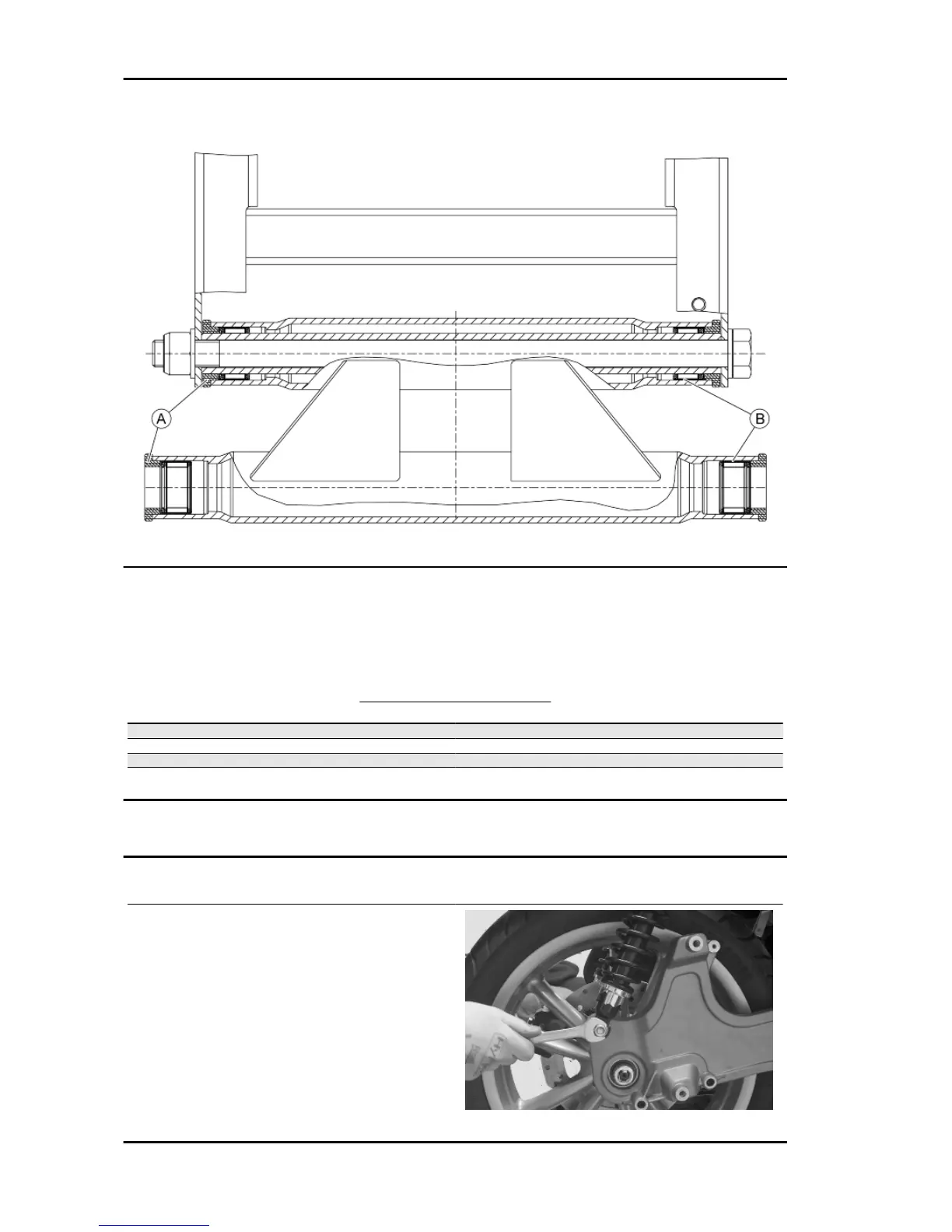

SWINGING ARM FITTING
Name
Torque in Nm
Swinging arm on engine side - Engine 40
Silent bloc - Frame 54
Swinging arm on frame side - Frame 60
Swinging arm on engine side - Swinging arm on frame side 61
Shock absorbers
Removal
Proceed as follows:
- Place the scooter on its centre stand;
- Lift the engine using a jack so as to free both
shock absorbers.
- Remove the muffler.
- Undo the screws fixing the shock absorber spring
unit from the support fixed to the engine on one
side.
Suspensions Carnaby 125 - 200
SUSP - 212
