Assembly clearances

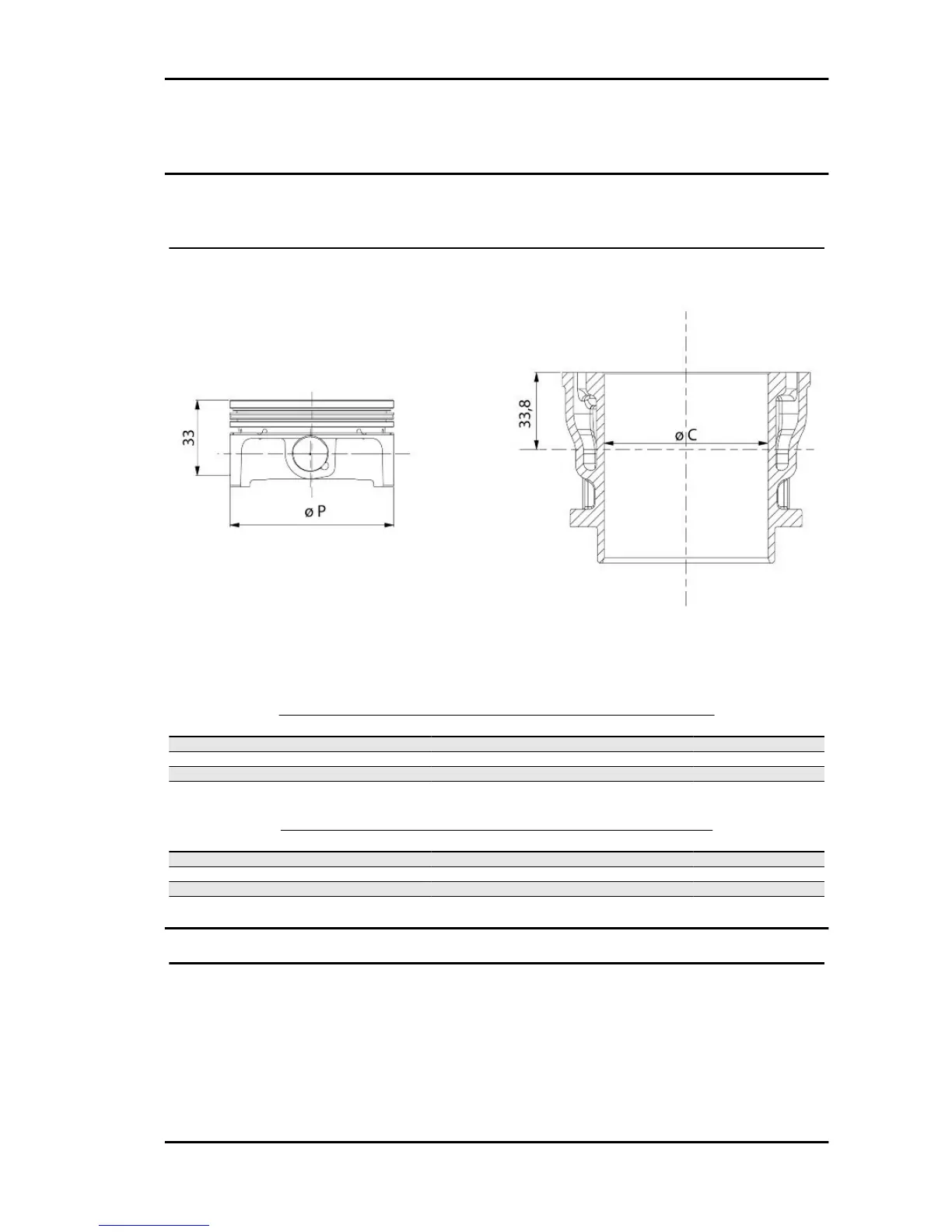

Cylinder - piston assy.
200 cm³ version
COUPLING CATEGORIES (WITH ALUMINIUM CYLINDER)
Name
Initials Cylinder Piston Play on fitting
Cylinder / piston A 71.990 ÷ 71.997 71.953 ÷ 71.960 0.030 - 0.044
Cylinder / piston B 71.997 ÷ 72.004 71.960 ÷ 71.967 0.030 - 0.044
Cylinder / piston C 72.004 ÷ 72.011 71.967 ÷ 71.974 0.030 - 0.044
Cylinder / piston D 72.011 ÷ 72.018 71.974 ÷ 71.981 0.030 - 0.044
COUPLING CATEGORIES (WITH CAST IRON CYLINDER)
Name
Initials Cylinder Piston Play on fitting
Cylinder / piston M 72 ÷ 72.007 71.953 ÷ 71.960 0.040 - 0.054
Cylinder / piston N 72.007 ÷ 72.014 71.960 ÷ 71.967 0.040 - 0.054
Cylinder / piston O 72.014 ÷ 72.021 71.967 ÷ 71.974 0.040 - 0.054
Cylinder / piston P 72.021 ÷ 72.026 71.974 ÷ 71.981 0.040 - 0.054
125 cm³ version
Carnaby 125 - 200 Characteristics
CHAR - 17
