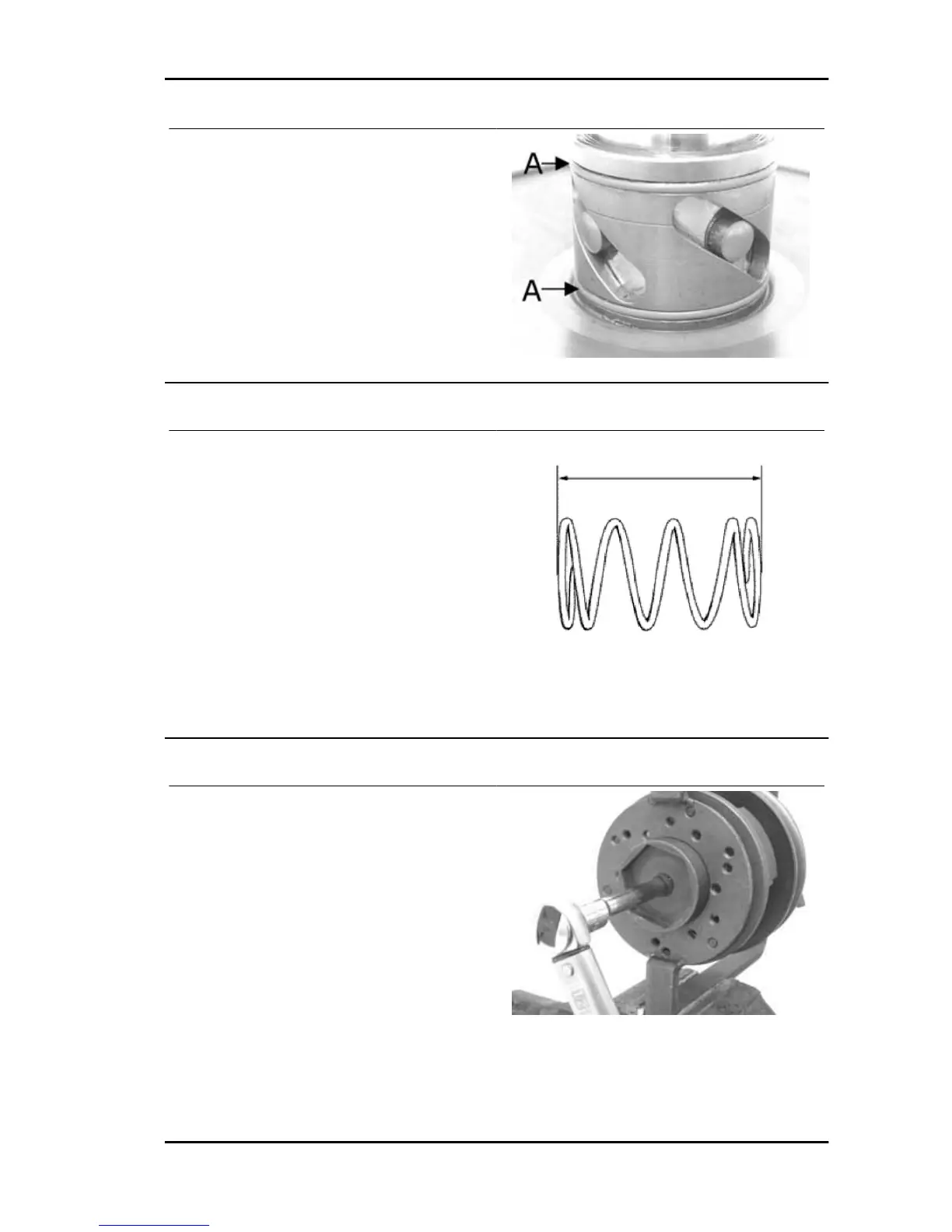

- Insert the new oil guards and O-rings on the mov-
able half-pulley.
- Lightly grease the O-rings «A» shown in the fig-
ure.
Inspecting the clutch spring
- Misurare la lunghezza libera della molla della
semipuleggia condotta mobile.
Characteristic
Standard length (125)
106 mm
limit after use (125)
101 mm
Lunghezza standard (200)
123 mm
Limite dopo l'uso (200)
118 mm
Refitting the clutch
Version 125
- Support the driven pulley spring compressor ap-
propriate tool with the control screw in vertical axis.
- Arrange the tool with the medium length pins
screwed in position «F» on the inside.
- Insert the adapter ring 8 in the pins.
- Preassemble the cooling fan to the clutch in such
a way that the keying facets are aligned and the 3
pin heads (A) of the mass axis can be seen in full.
- Insert the clutch on the adapter ring.
- Lubricate the end of the spring that abuts against
the servo-system closing collar.
Carnaby 125 - 200 Engine
ENG - 111
