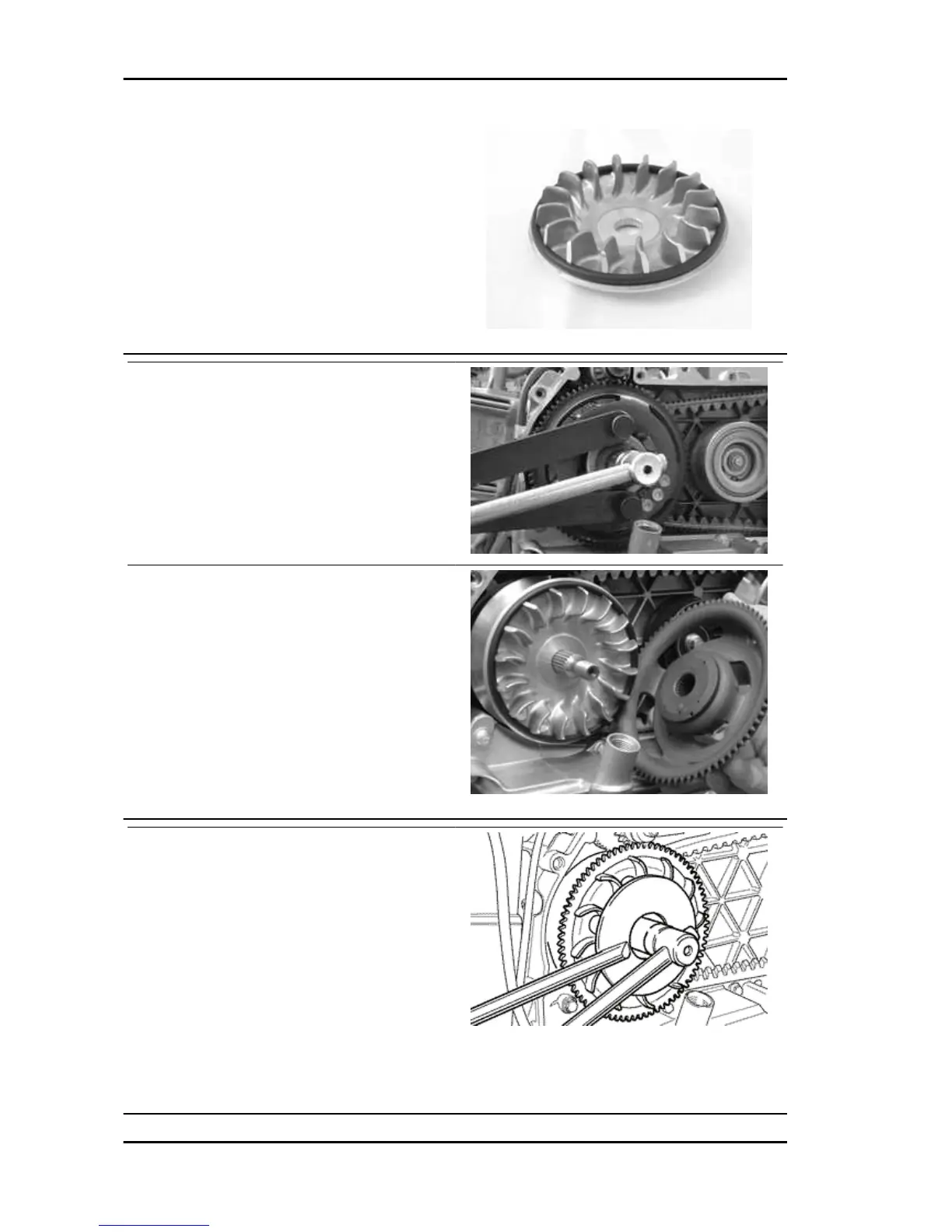

Driving pulley removal
- With the appropriate tool placed into the internal
slots, remove the nut with the built-in Belleville
washer.
Appropriate tools:
Specific tooling
020442Y Pulley lock wrench
- Remove the entire start-up crown unit with the
torque limiter.
- Remove the fixed driving half-pulley together with
the O-ring and the steel washer touching the bush-
ing.
Driving pulley removal (125)
- With the appropriate tool, remove the nut with the
built-in Belleville washer, the drive common to the
kick-starter version, and the steel washer.
- Remove the fixed driving half-pulley.
- Remove the steel washer separating from the
bushing.
Appropriate tools:
Specific tooling
020368Y driving pulley lock wrench
Engine Carnaby 125 - 200
ENG - 118
